EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
TROUBLESHOOTING Troubleshooting 101
• Operation
•–
The drive of the PF Motor is not
transmitted to the LD Roller Shaft.
Ink System Unit
1. Check if the Compression Spring 2.36 does not come off
in the Change Lever.
1. Replace the Ink System Unit with a new one.
• Operation
•–
The LD Roller is not set to the ASF
home position and paper is always
loaded from the ASF Unit during the
paper loading sequence.
Ink System Unit
1. Check if the tip of the Change Lever is not damaged. 1. Replace the Ink System Unit with a new one.

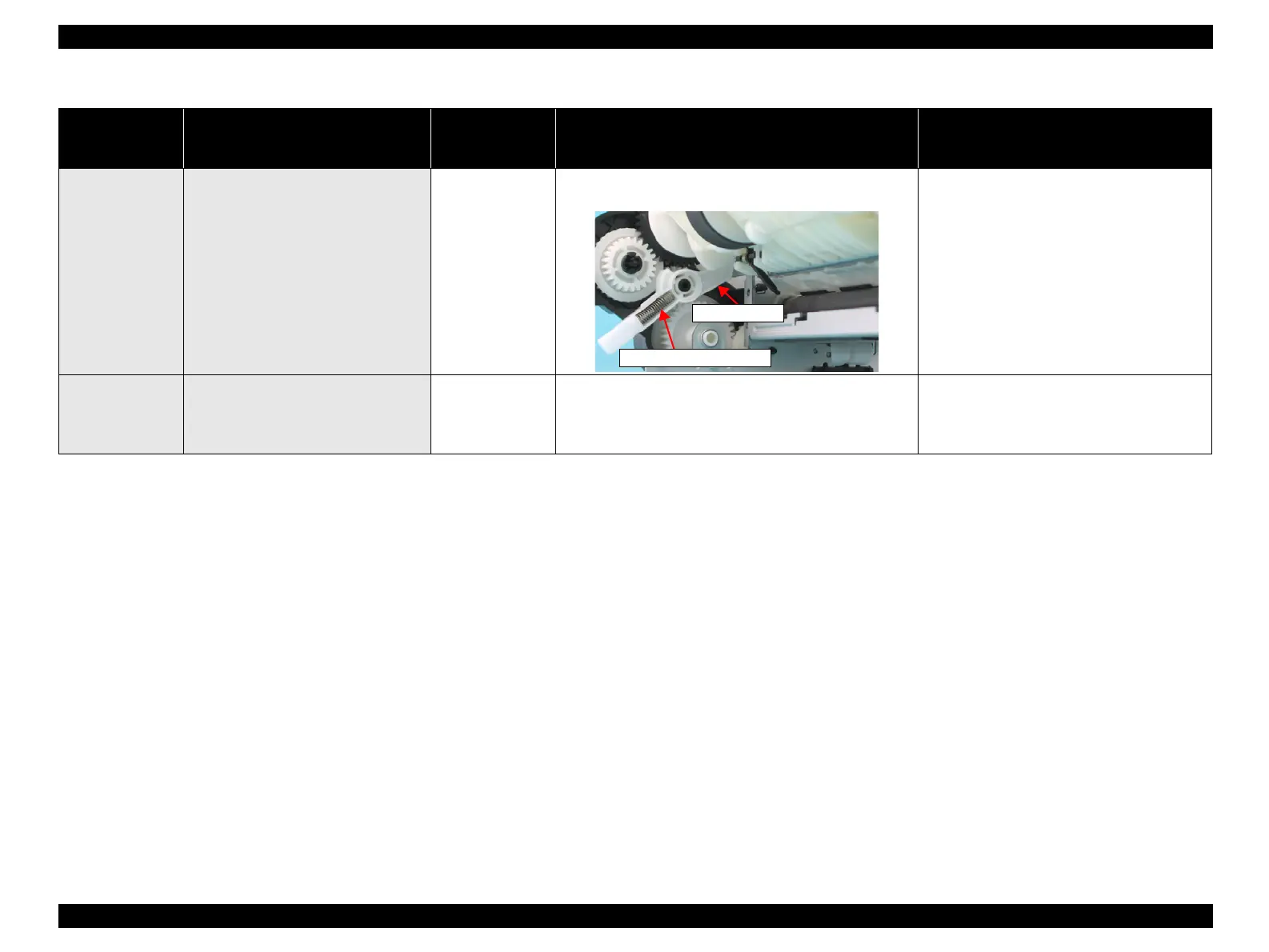

Table 3-15. Check point for the paper out error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
Compression Spring 2.36
Change Lever
