TROUBLESHOOTING Troubleshooting 100
• Operation
•–
The drive of the PF Motor is not
transmitted to the LD Roller Shaft.
Holder Shaft Unit
1. Check if the Extension Spring 0.143 does not come off in
the Clutch mechanism.
1. Reassemble the Extension Spring 0.143 in the
Clutch mechanism.
2. Check if the Clutch does not come off from the dowel of
the LD Roller Shaft.
2. Reassemble the round portion of the Clutch
on the dowel of the LD Roller Shaft.
3. Check if the Clutch tooth is not damaged. 3. Replace the Holder Shaft Unit with a new
one.
4. Check if the Clutch is not damaged. 4. Replace the Holder Shaft Unit with a new
one.

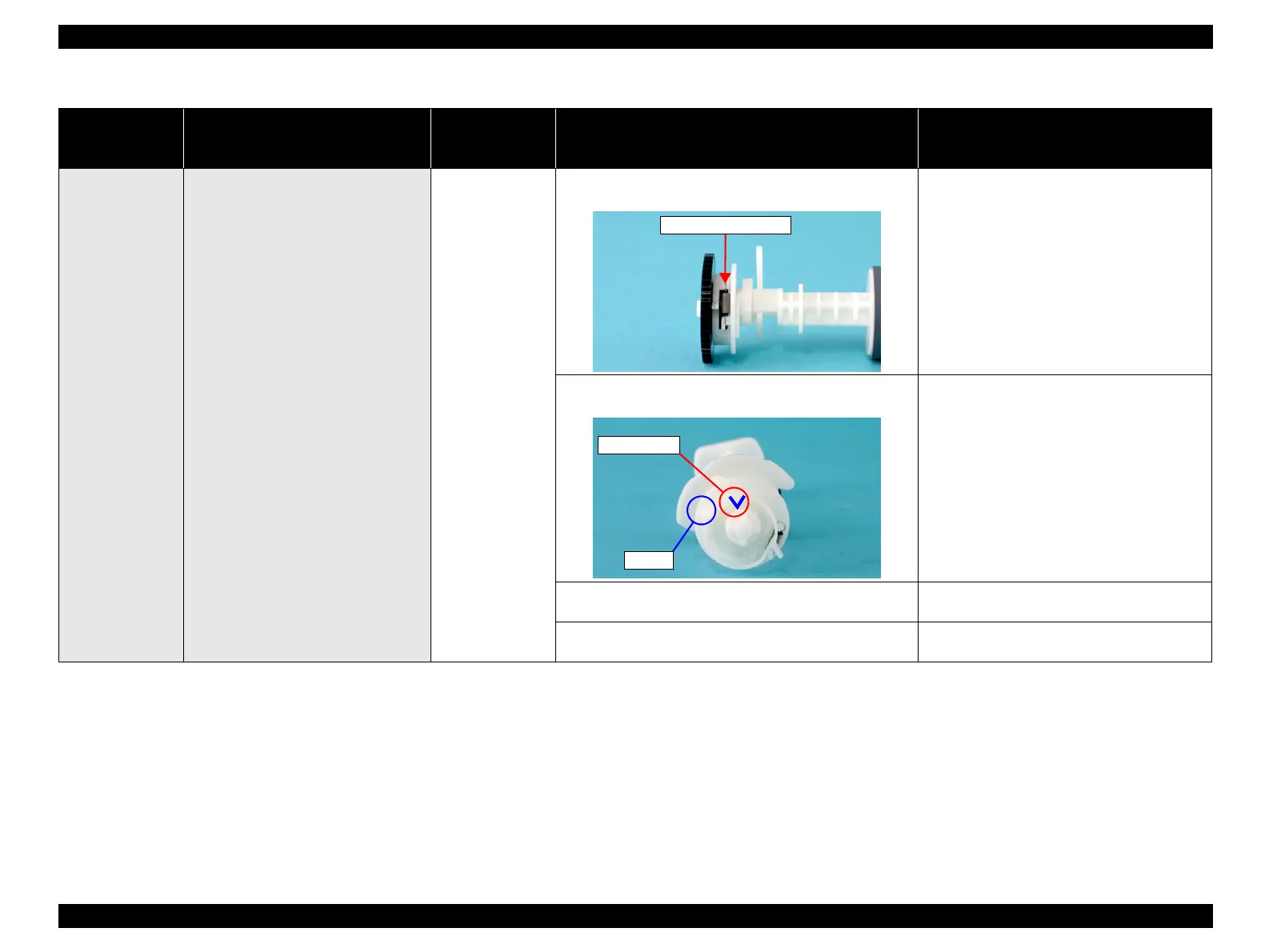

Table 3-15. Check point for the paper out error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
Extension Spring 0.143
Clutch tooth
Dowel
