DISASSEMBLY/ASSEMBLY Removal procedure Specific to the Model With No Card Slot (Stylus CX4100/CX4200/DX4200) 170

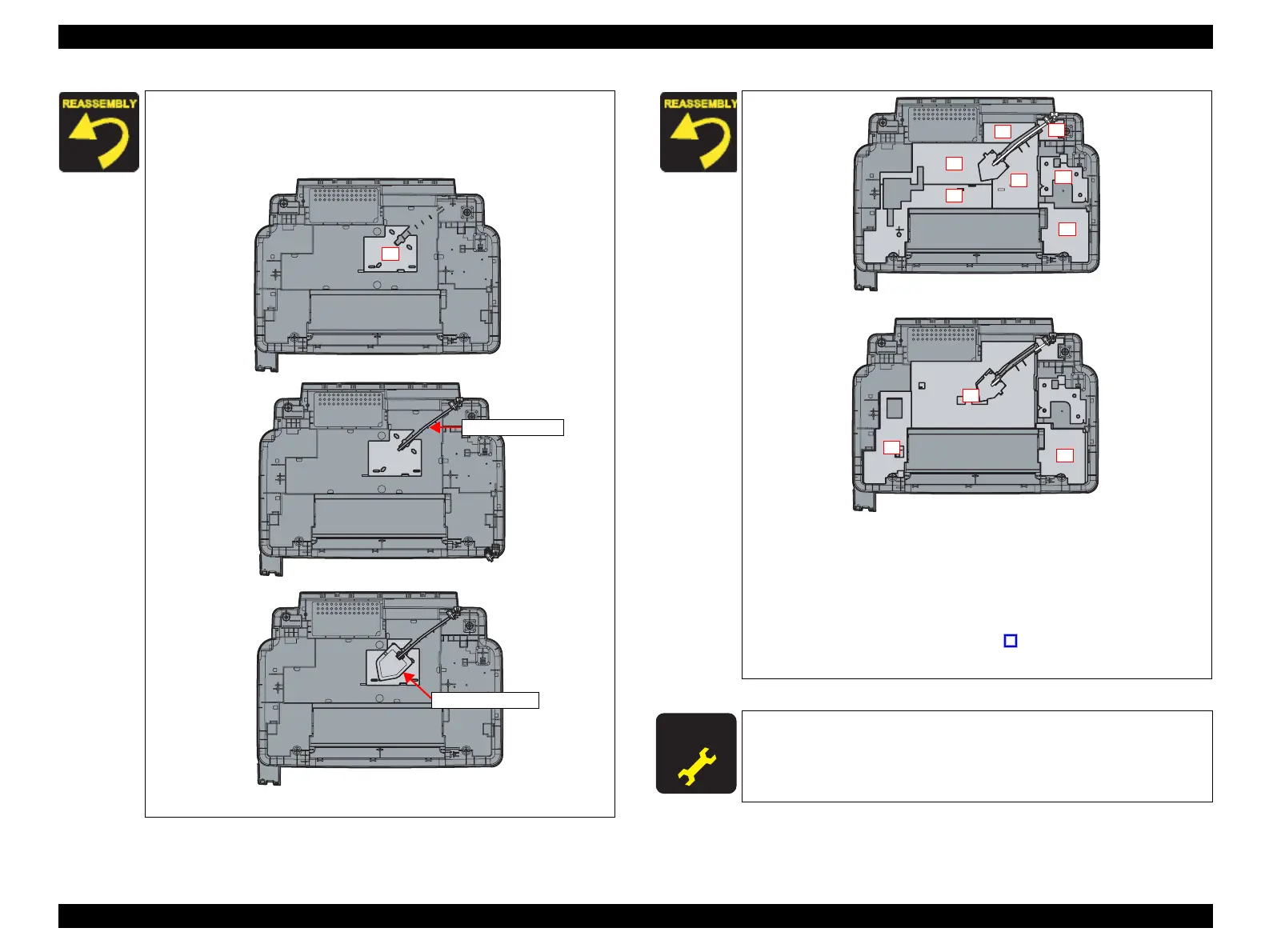

When installing 11 pieces of the Waste Ink Pads, Waste Ink
Tube, and the Waste Ink Cover, follow the steps described
below.
Figure 4-57. Installing Waste Ink Pads (1)
1
Waste Ink Tube
Waste Ink Cover
Step 1
Step 2
Step 3
Figure 4-58. Installing Waste Ink Pads (2)
When installing the Waste Ink Tube to the Housing, Lower,
insert it to both the groove of the Housing, Lower and the Eject
Ink Joint, and securely fasten the Waste Ink Tube with the
Tube Clamp, or ink may leak from the Tube.
When installing the PG Lever Mounting Plate to the Housing,
Lower, match the guide pins (x2,
) with the positioning holes
of the PG Lever Mounting Plate.
A D J U S T M E N T
R E Q U I R E D
After replacing the Waste Ink Pads, perform the following
adjustment. (Refer to Chapter 5 “ADJUSTMENT”)
“Waste Ink Pad Counter”
2
3
4
5
6
7
8
9
10
11
Step 4
Step 5
To Next Page
