Epson Stylus DX4850 Service Manual

EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
MAINTENANCE Overview 191

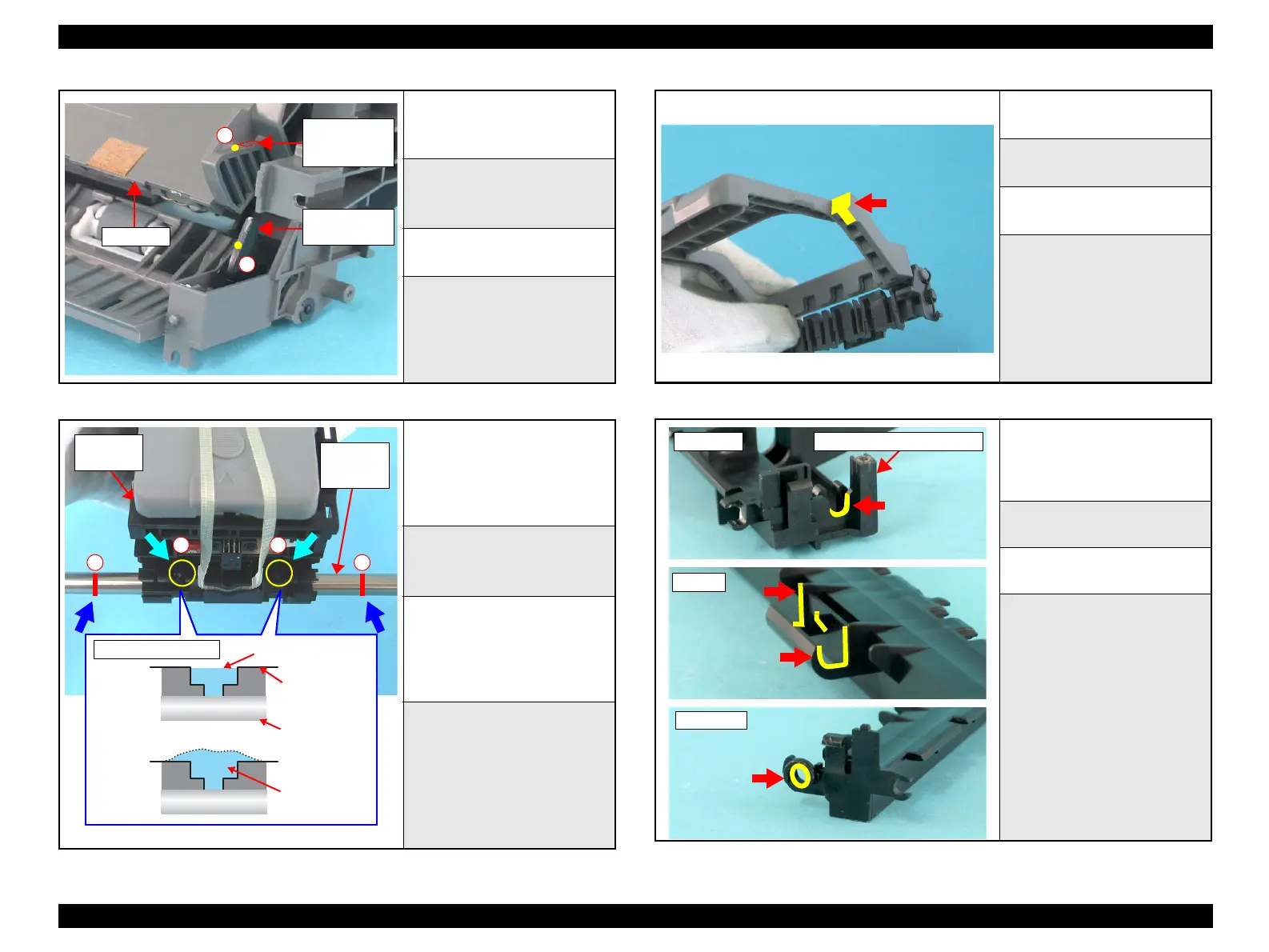

Figure 6-6. Lubrication on ASF Unit
Figure 6-7. Lubrication on Carriage Unit (1)
Figure 6-8. Lubrication on Carriage Unit (2)
Figure 6-9. Lubrication on EJ Roller Unit
<Lubrication Point>
1. Paper Back Lever Surface
2. Hopper Surface
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
φ1 x 1mm
<Remarks>
1. Use a injector to apply.
2. Use a injector to apply.
• Grease must not be adhered to
other parts.
<Lubrication Point>
1. Two holes of the Carriage Unit.
(Should be in touch with the
Carriage Guide Shaft.)
2. Carriage Guide Shaft Surface
<Lubrication Type>
1. G-71
2. G-71
<Lubrication Amount>
1. 150 ~ 210mg (Two points in
total)
2. 80 ~ 120mg (Two points in
total)
<Remarks>
1. Use a injector to apply.
2. Use a injector to apply.
• Do not adhere G-71 to the
Timing Belt.
• Do not let G-71 run off to the
Carriage outside surface.
Hopper
Paper Back
Lever
2
1
Lubrication
Prohibited
Area
2 2
1 1
Carriage
Guide
Shaft
Carriage
Unit
N.G.
O.K.
Carriage Unit
Outside Surfac
e
Carriage Hole
Carriage Guide
Shaft
G-71
Grease
Sectioned Diagram
<Lubrication Point>
Cartridge Cover Surface
<Lubrication Type>
G-74
<Lubrication Amount>
0.02g x 1 point
<Remarks>
Use a flux dispenser to apply.
• Grease must not be adhered to
other parts.
<Lubrication Point>
Contact areas between the EJ
Roller Unit and the five tabs of the
Front Paper Guide Support.
<Lubrication Type>
G-74
<Lubrication Amount>
Adequate dose x 5 points
<Remarks>
• Use a flux dispenser to apply.
• Do not adhere G-74 to the
rubber part of the EJ Roller
Unit.
Left Side Front Paper Guide Support
Center
Right Side
