Epson Stylus DX4850 Service Manual

EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
PRODUCT DESCRIPTION Memory Card Print (Only for CX4700/CX4800/DX4800/DX4850) 44
1.5.8.2 1-up with Borders

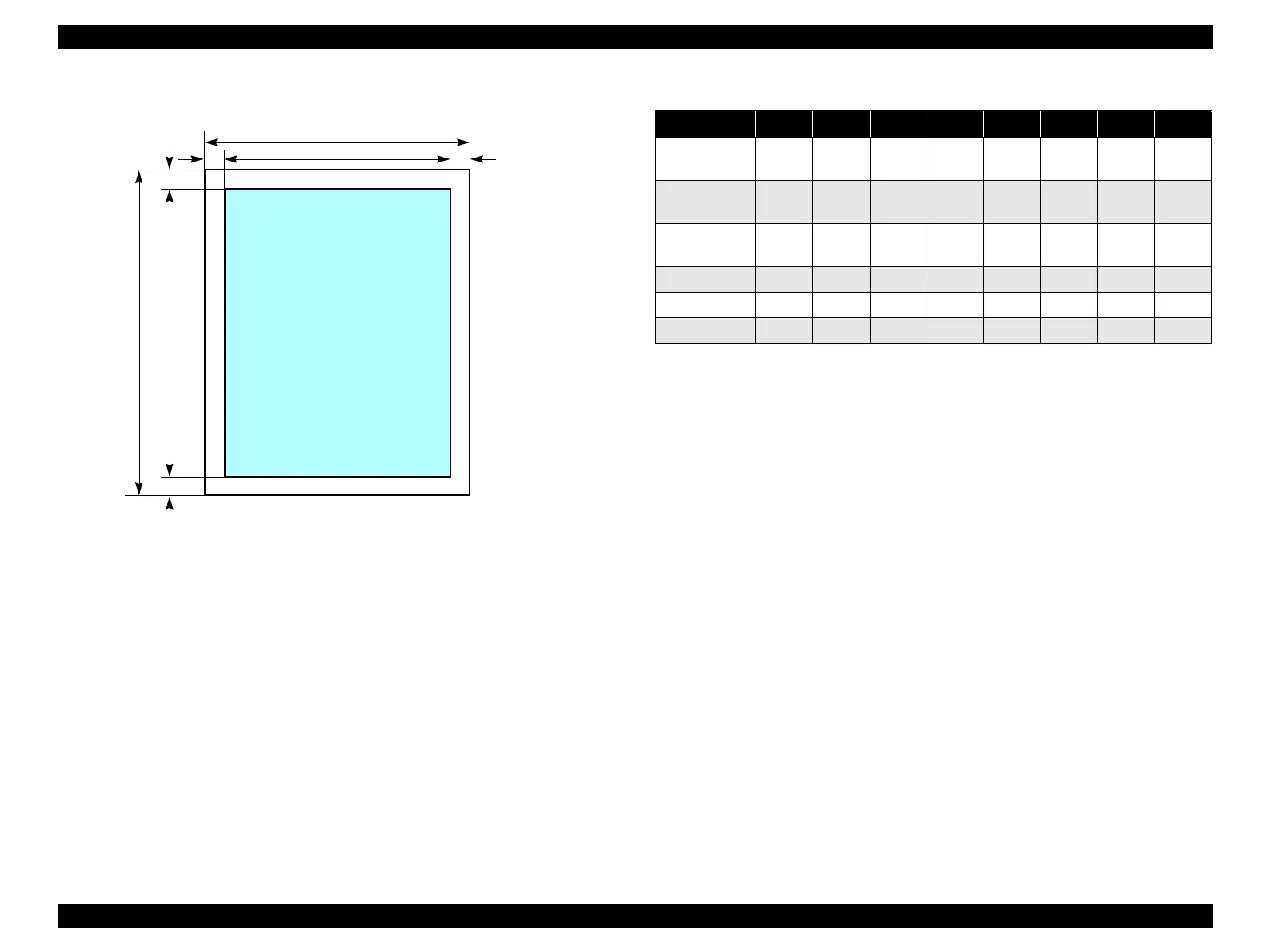

Figure 1-20. 1-up with Borders
Note *1: Letter, 4" x 6", and 5" x 7" size will be used for Stylus CX4200/CX4800.
*2: A4, 10cm x 15 cm, and 13cm x 18cm size will be used for Stylus CX4100/CX4700/
DX4200/DX4800/DX4850.
Printable area
C
A
FEG
H
DB
Table 1-41. Border Free (unit: mm (inch))
Paper type A B C D E F G H
Letter
*1
215.90
(8.50)
279.40
(11.00)
209.90
(8.26)
273.40
(10.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
4" x 6"
*1
101.60
(4.00)
152.40
(6.00)
95.60
(3.76)
146.40
(5.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
5" x 7"
*1
127.0
(5.00)
178.0
(7.00)
121.0
(4.76)
172.0
(6.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
A4
*2
210 297 204 291 3.00 3.00 3.00 3.00
10 x 15
*2
101.60 152.40 95.60 146.40 3.00 3.00 3.00 3.00
13 x 18
*2
127.0 178.0 121.0 172.0 3.00 3.00 3.00 3.00
