This section provides you information for system planning.
2.1 Connection Form and Cables
2.2 Serial Connection
When the TM printer is connected to the host PC with a serial interface, the following connection
forms are possible:
•Stand alone
• Pass-through connection

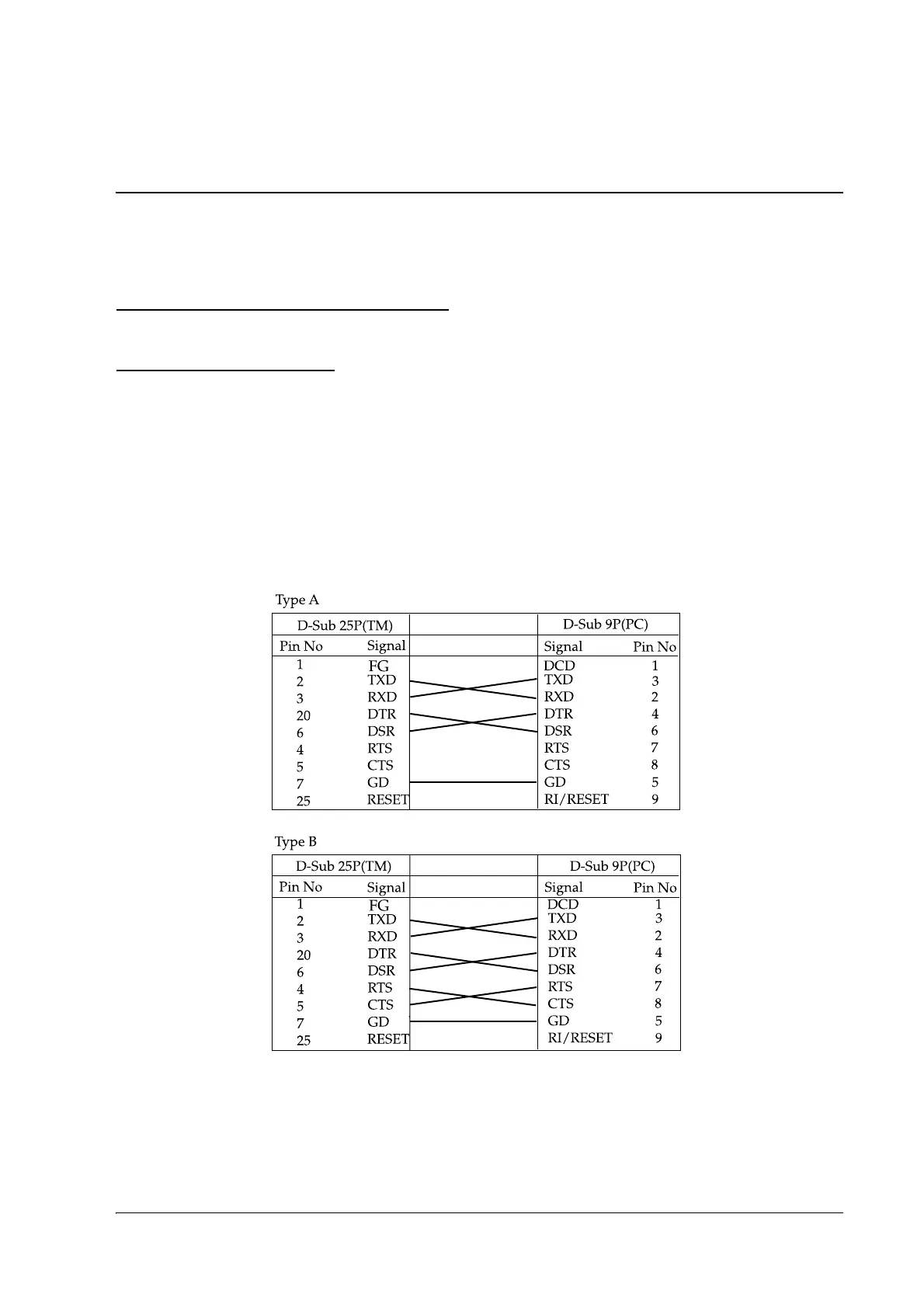

Connections for usable serial cross cables are as follows:
The type of cable that should be used depends on the operation and the handshake method for
the TM printer. You can operate the TM printer by Windows driver, OPOS, or ESC/POS
commands. XON/XOFF, DTR/DSR, or RTS/CTS are available as handshake controls. See tables
in following sections for the type cable for each connection.
