3-16 Setup Rev. A

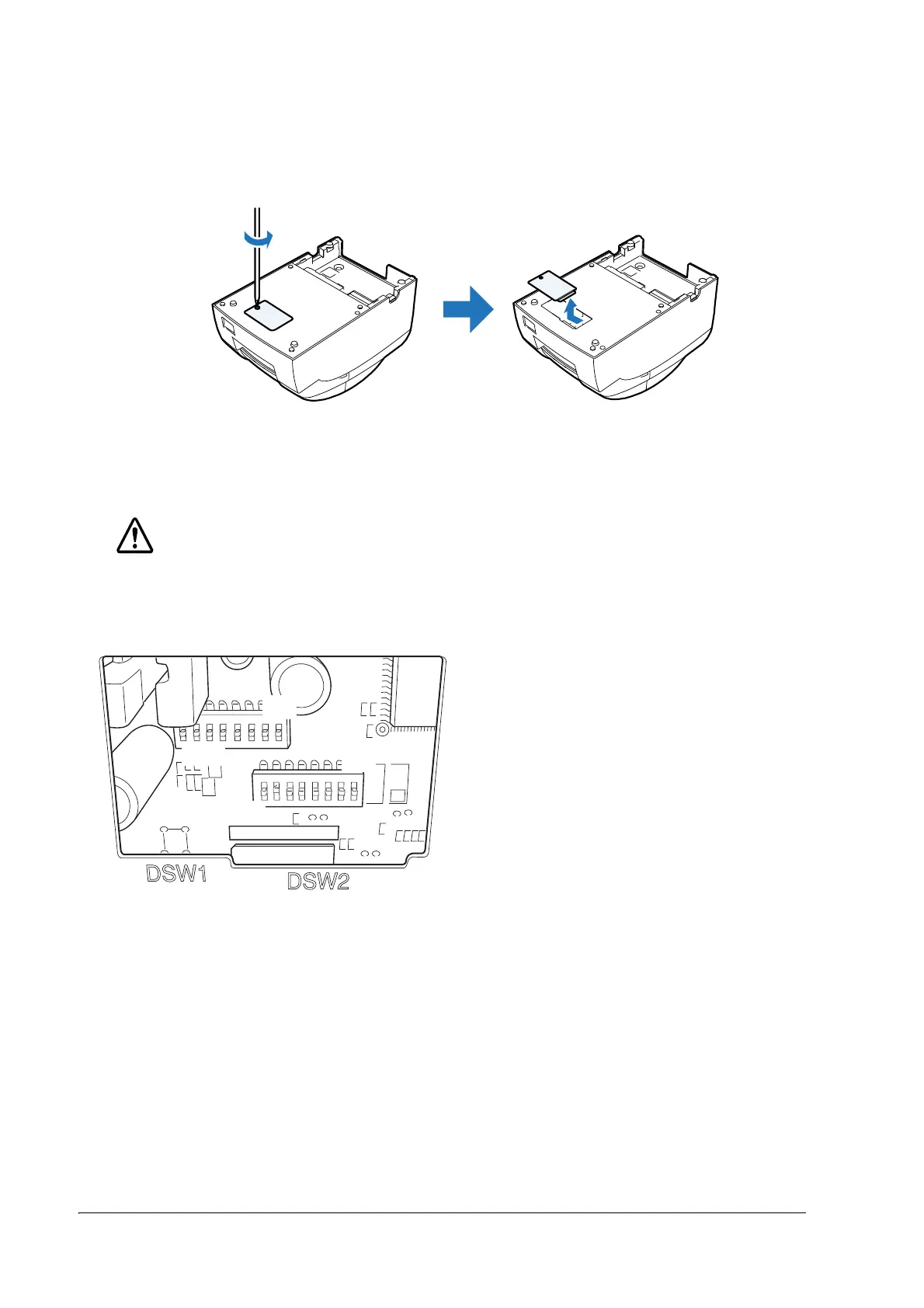

2. Use a crosshead screwdriver to remove the DIP switch cover on the underside of the printer.
3. Use tweezers or a similar tool to set the DIP switches as you like. (Refer to the next page for
DIP switch functions.)
4. Re-install the DIP switch cover to the underside of the printer.
CAUTION:
Turn off the power and disconnect all cables while removing the DIP switch cover.
Removing with the power on may cause an electric short that can damage the printer.
Be sure to always close the DIP switch cover after setting if it is open.
Leaving it open during printer use may cause fire or shock.
To Next Page
