EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
F
TM-U295/U295P
Specification
(STANDARD)
App.8App.9

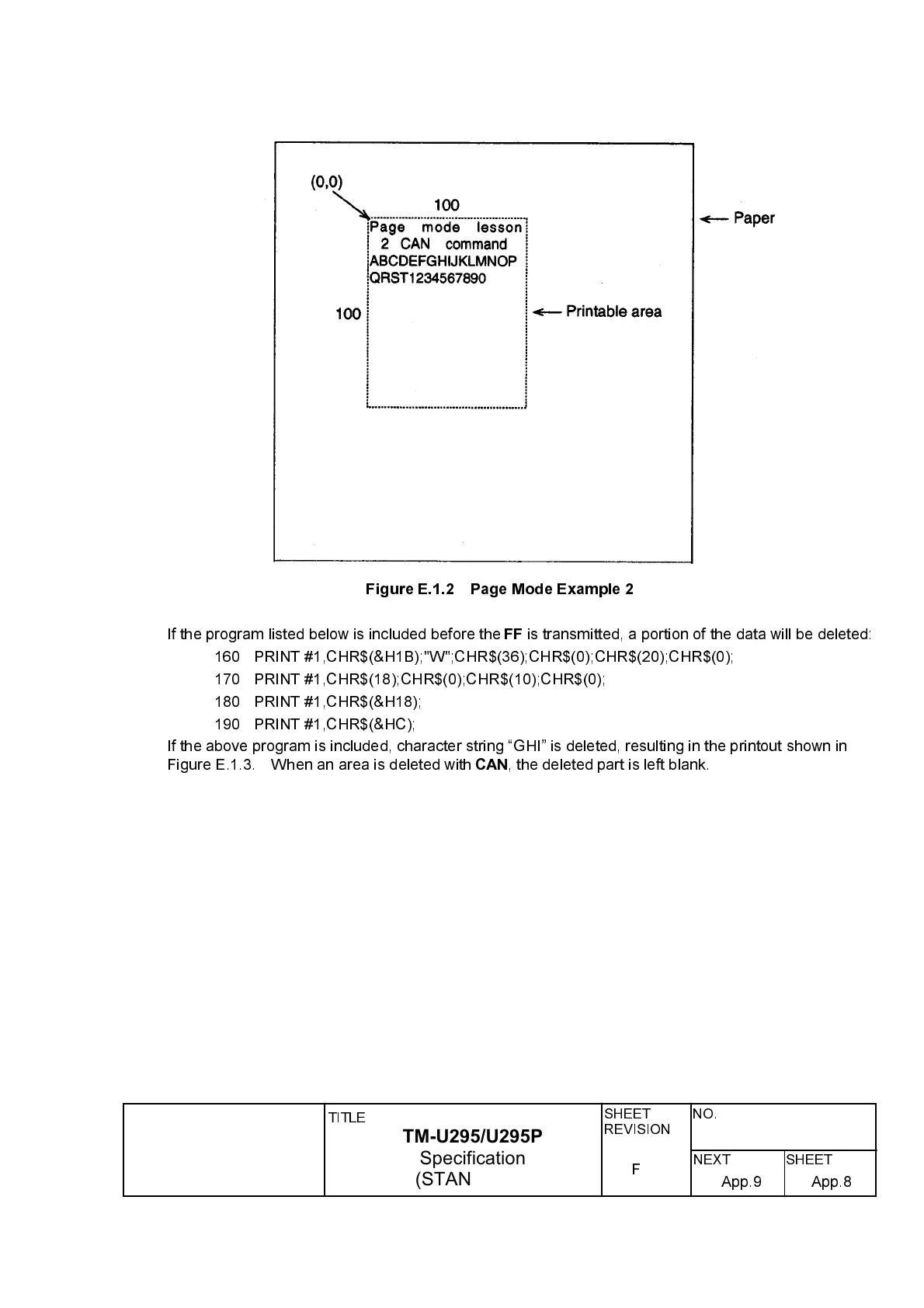

Figure E.1.2 Page Mode Example 2
If the program listed below is included before the FF is transmitted, a portion of the data will be deleted:
160 PRINT #1,CHR$(&H1B);"W";CHR$(36);CHR$(0);CHR$(20);CHR$(0);
170 PRINT #1,CHR$(18);CHR$(0);CHR$(10);CHR$(0);
180 PRINT #1,CHR$(&H18);
190 PRINT #1,CHR$(&HC);
If the above program is included, character string GHI is deleted, resulting in the printout shown in
Figure E.1.3. When an area is deleted with CAN , the deleted part is left blank.

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
