TM-U295/U295P
Specification
(STANDARD)
App.2App.3

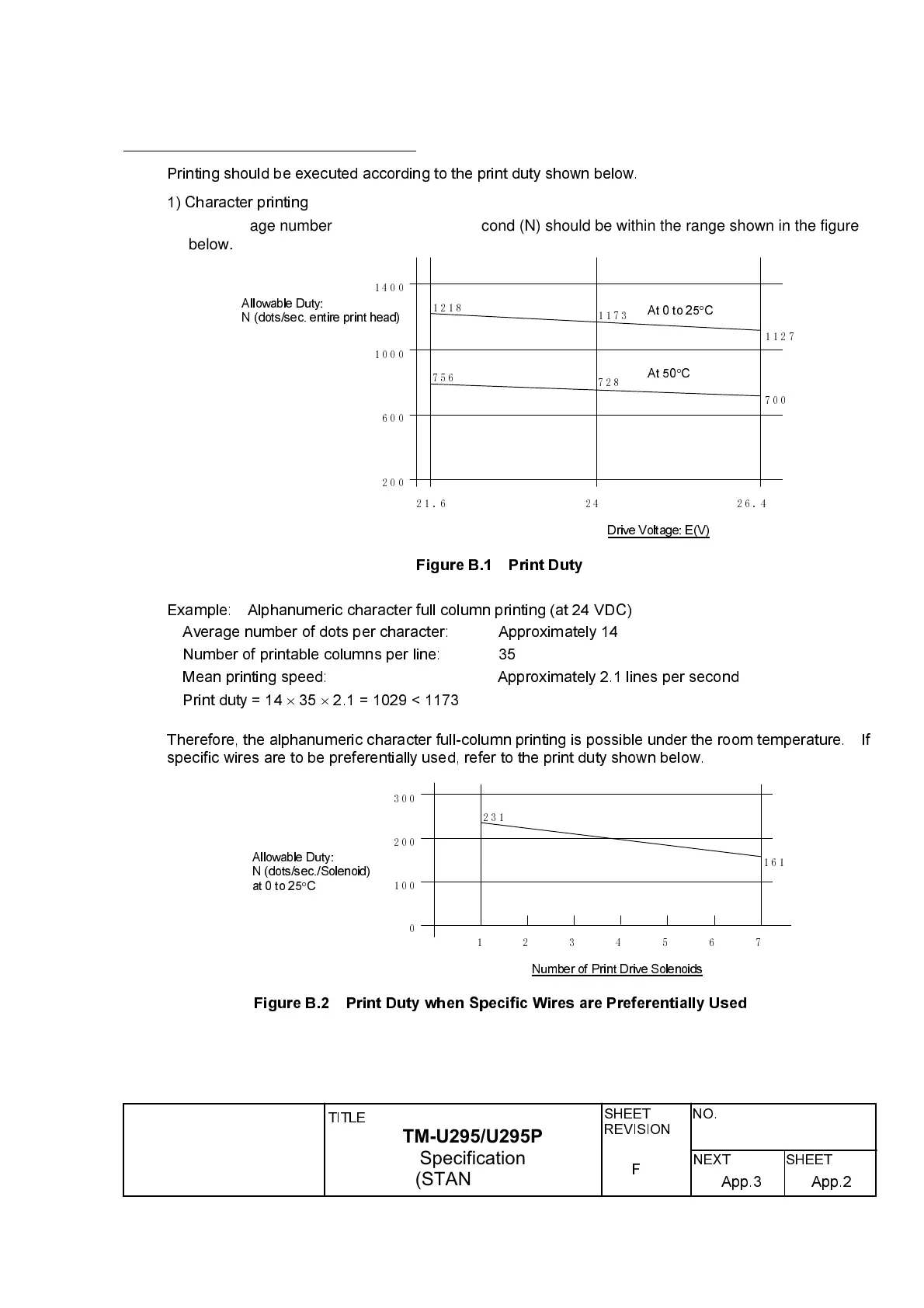

APPENDIX B: PRINT DUTY
Printing should be executed according to the print duty shown below.
1) Character printing
The average number of dots printed per second (N) should be within the range shown in the figure
below.
1400
1000
600
200
21.6 24 26.4
700
1127
1173
728
1218
756
Drive Voltage: E(V)
At 50
°
C
At 0 to 25
°
C
Allowa ble Duty:
N (dots/sec. entire print head)
Figure B.1 Print Duty
Example: Alphanumeric character full column printing (at 24 VDC)
Average number of dots per character: Approximately 14
Number of printable columns per line: 35
Mean printing speed: Approximately 2.1 lines per second
Print duty = 14 ´ 35 ´ 2.1 = 1029 < 1173
Therefore, the alphanumeric character full-column printing is possible under the room temperature. If
specific wires are to be preferentially used, refer to the print duty shown below.
1234567
300
200
100
0
231
161
Number of Print Drive Sole noids
Allowa ble Duty:
N (dots/sec./Solenoid)
at 0 to 25
°
C
Figure B.2 Print Duty when Specific Wires are Preferentially Used

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
