TM-U295/U295P
Specification
(STANDARD)
App.14App.15

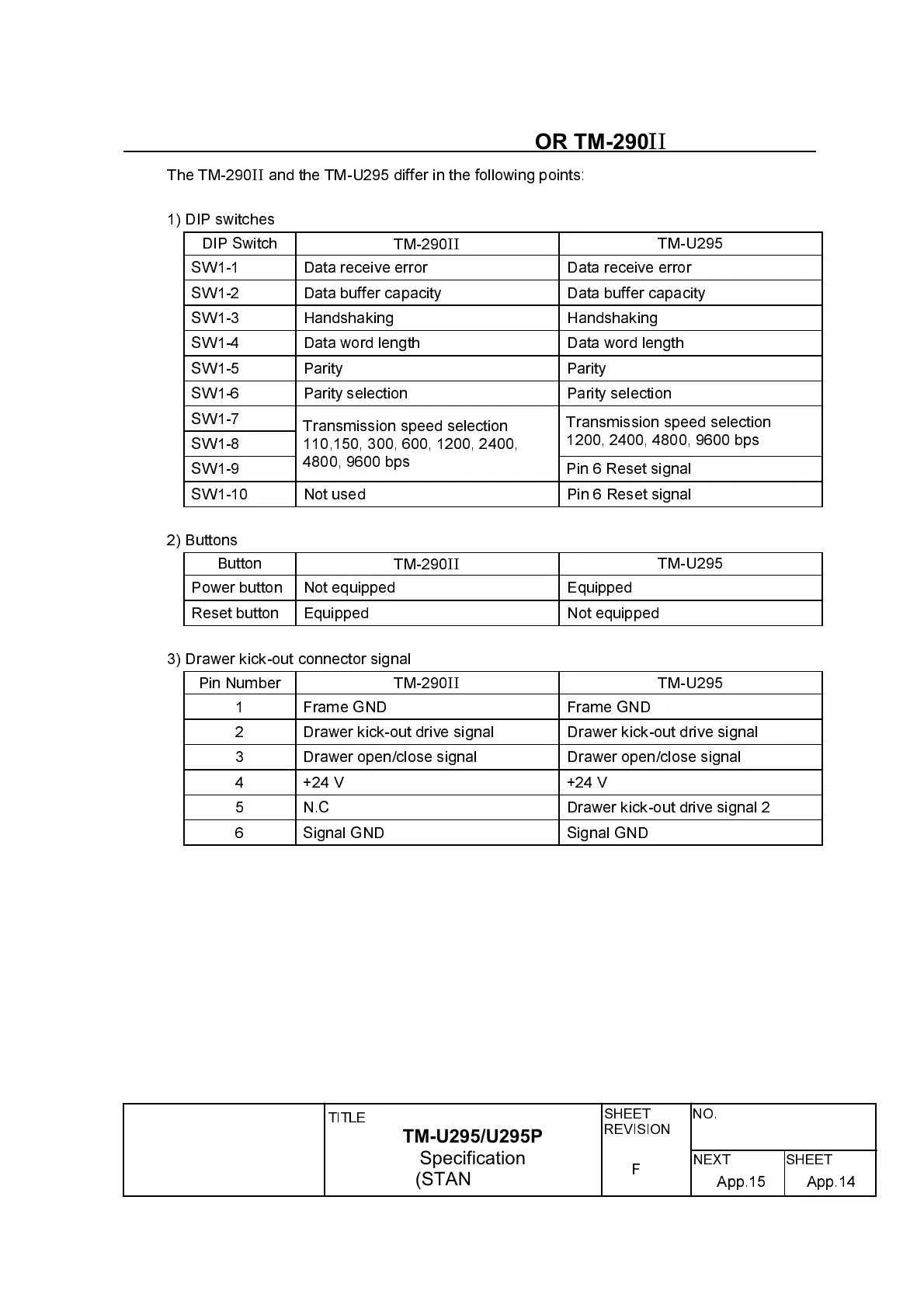

APPENDIX G: COMPARISON TABLE FOR TM-290
II
IIII
II
AND TM-U295
The TM-290 II and the TM-U295 differ in the following points:
1) DIP switches
DIP Switch
TM-290 II
TM-U295
SW1-1 Data receive error Data receive error
SW1-2 Data buffer capacity Data buffer capacity
SW1-3 Handshaking Handshaking
SW1-4 Data word length Data word length
SW1-5 Parity Parity
SW1-6 Parity selection Parity selection
SW1-7
SW1-8
Transmission speed selection
1200, 2400, 4800, 9600 bps
SW1-9
Transmission speed selection
110,150, 300, 600, 1200, 2400,
4800, 9600 bps
Pin 6 Reset signal
SW1-10 Not used Pin 6 Reset signal
2) Buttons
Button
TM-290 II
TM-U295
Power button Not equipped Equipped
Reset button Equipped Not equipped
3) Drawer kick-out connector signal
Pin Number
TM-290 II
TM-U295
1 Frame GND Frame GND
2 Drawer kick-out drive signal Drawer kick-out drive signal
3 Drawer open/close signal Drawer open/close signal
4 +24 V +24 V
5 N.C Drawer kick-out drive signal 2
6 Signal GND Signal GND

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
