Epson TM-U295 User Manual

EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
F
TM-U295/U295P
Specification
(STANDARD)
54

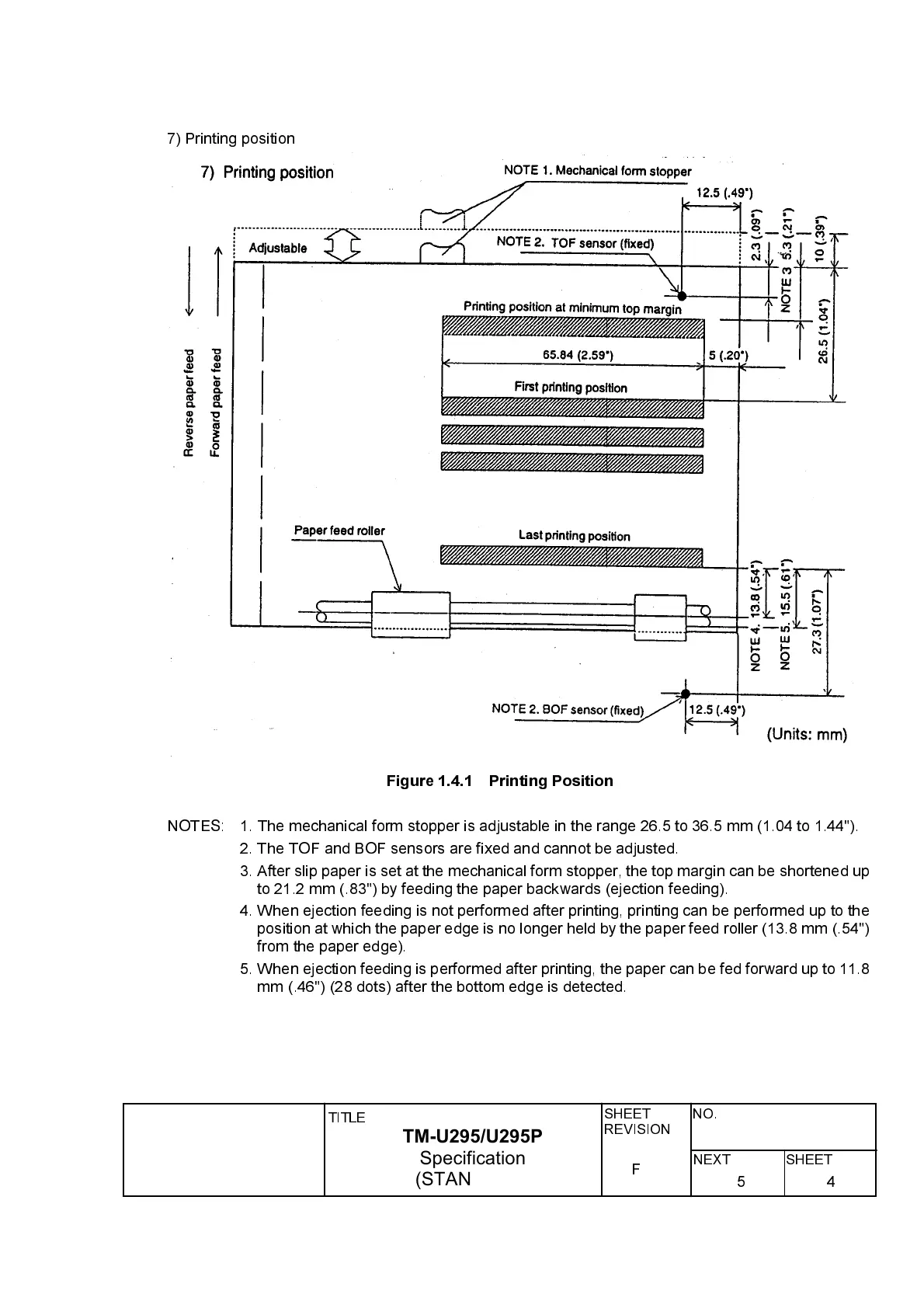

7) Printing position
Figure 1.4.1 Printing Position
NOTES: 1. The mechanical form stopper is adjustable in the range 26.5 to 36.5 mm (1.04 to 1.44").
2. The TOF and BOF sensors are fixed and cannot be adjusted.
3. After slip paper is set at the mechanical form stopper, the top margin can be shortened up
to 21.2 mm (.83") by feeding the paper backwards (ejection feeding).
4. When ejection feeding is not performed after printing, printing can be performed up to the
position at which the paper edge is no longer held by the paper feed roller (13.8 mm (.54")
from the paper edge).
5. When ejection feeding is performed after printing, the paper can be fed forward up to 11.8
mm (.46") (28 dots) after the bottom edge is detected.

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
