Epson TM-U295 User Manual

EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
F
TM-U295/U295P
Specification
(STANDARD)
13 12

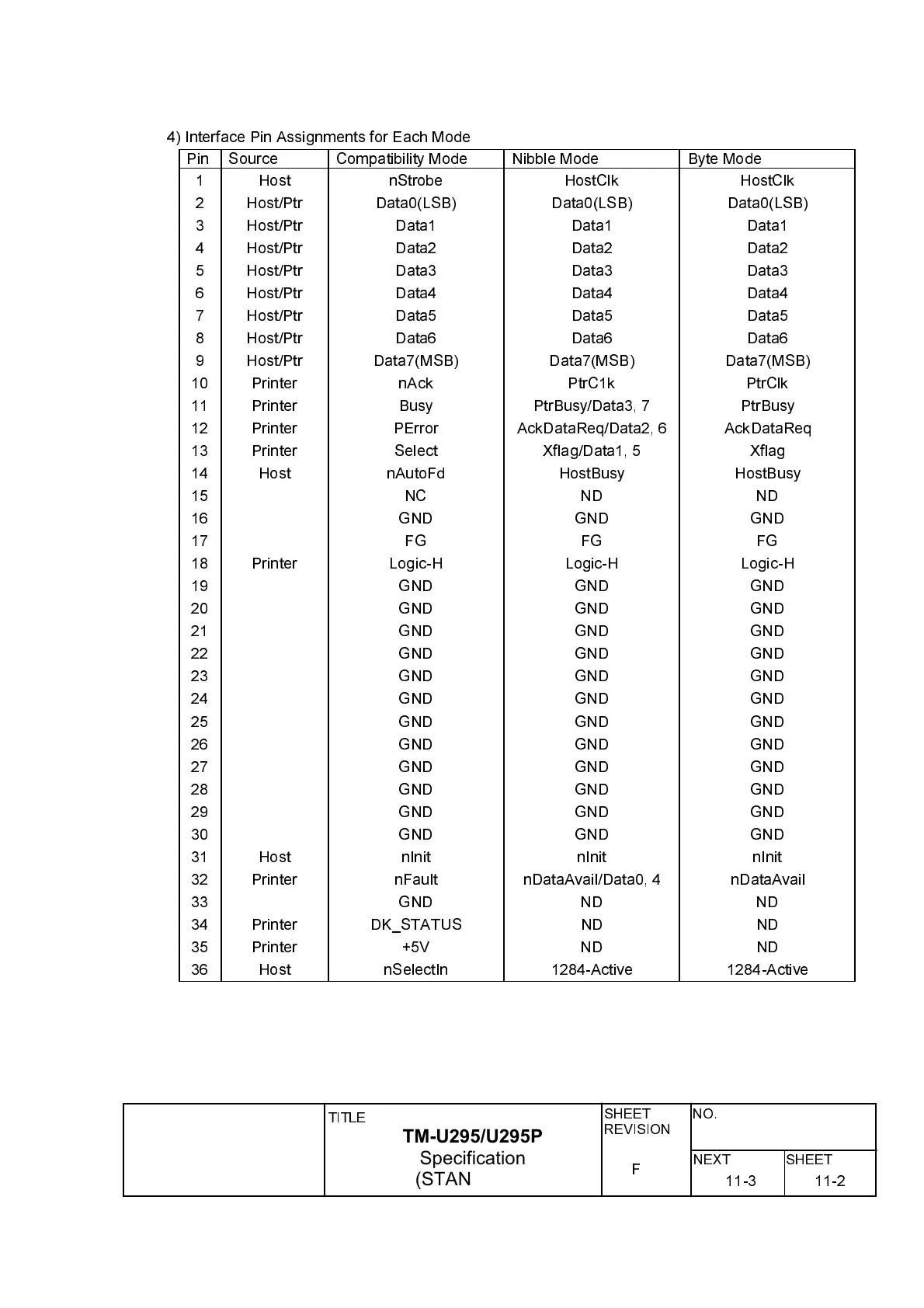

4) Interface Pin Assignments for Each Mode
Pin Source Compatibility Mode Nibble Mode Byte Mode
1 Host nStrobe HostClk HostClk
2 Host/Ptr Data0(LSB) Data0(LSB) Data0(LSB)
3 Host/Ptr Data1 Data1 Data1
4 Host/Ptr Data2 Data2 Data2
5 Host/Ptr Data3 Data3 Data3
6 Host/Ptr Data4 Data4 Data4
7 Host/Ptr Data5 Data5 Data5
8 Host/Ptr Data6 Data6 Data6
9 Host/Ptr Data7(MSB) Data7(MSB) Data7(MSB)
10 Printer nAck PtrC1k PtrClk
11 Printer Busy PtrBusy/Data3, 7 PtrBusy
12 Printer PError AckDataReq/Data2, 6 AckDataReq
13 Printer Select Xflag/Data1, 5 Xflag
14 Host nAutoFd HostBusy HostBusy
15 NC ND ND
16 GND GND GND
17 FG FG FG
18 Printer Logic-H Logic-H Logic-H
19 GND GND GND
20 GND GND GND
21 GND GND GND
22 GND GND GND
23 GND GND GND
24 GND GND GND
25 GND GND GND
26 GND GND GND
27 GND GND GND
28 GND GND GND
29 GND GND GND
30 GND GND GND
31 Host nInit nInit nInit
32 Printer nFault nDataAvail/Data0, 4 nDataAvail
33 GND ND ND
34 Printer DK_STATUS ND ND
35 Printer +5V ND ND
36 Host nSelectIn 1284-Active 1284-Active
11-211-3

Epson TM-U295 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	42
Dimensions (WxDxH)	180 x 190.5 x 101.5 mm
Power requirements	24 VDC±10%
Connectivity technology	Wired
Printing media thickness	0.09/0.35 µm
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA C22.2 No. 950
Country of origin	Japan
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	1370 mm
Quantity per pallet	120 pc(s)
Quantity per pallet (UK)	160 pc(s)
Master (outer) case width	300 mm
Quantity per pallet layer	24 pc(s)
Master (outer) case height	405 mm
Master (outer) case length	485 mm
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	32 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	270 mm
Package width	235 mm
Package height	185 mm
Package weight	1845 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	191 mm
Width	180 mm
Height	102 mm
Weight	1600 g
