TM-U295/U295P
Specification
(STANDARD)
17 16

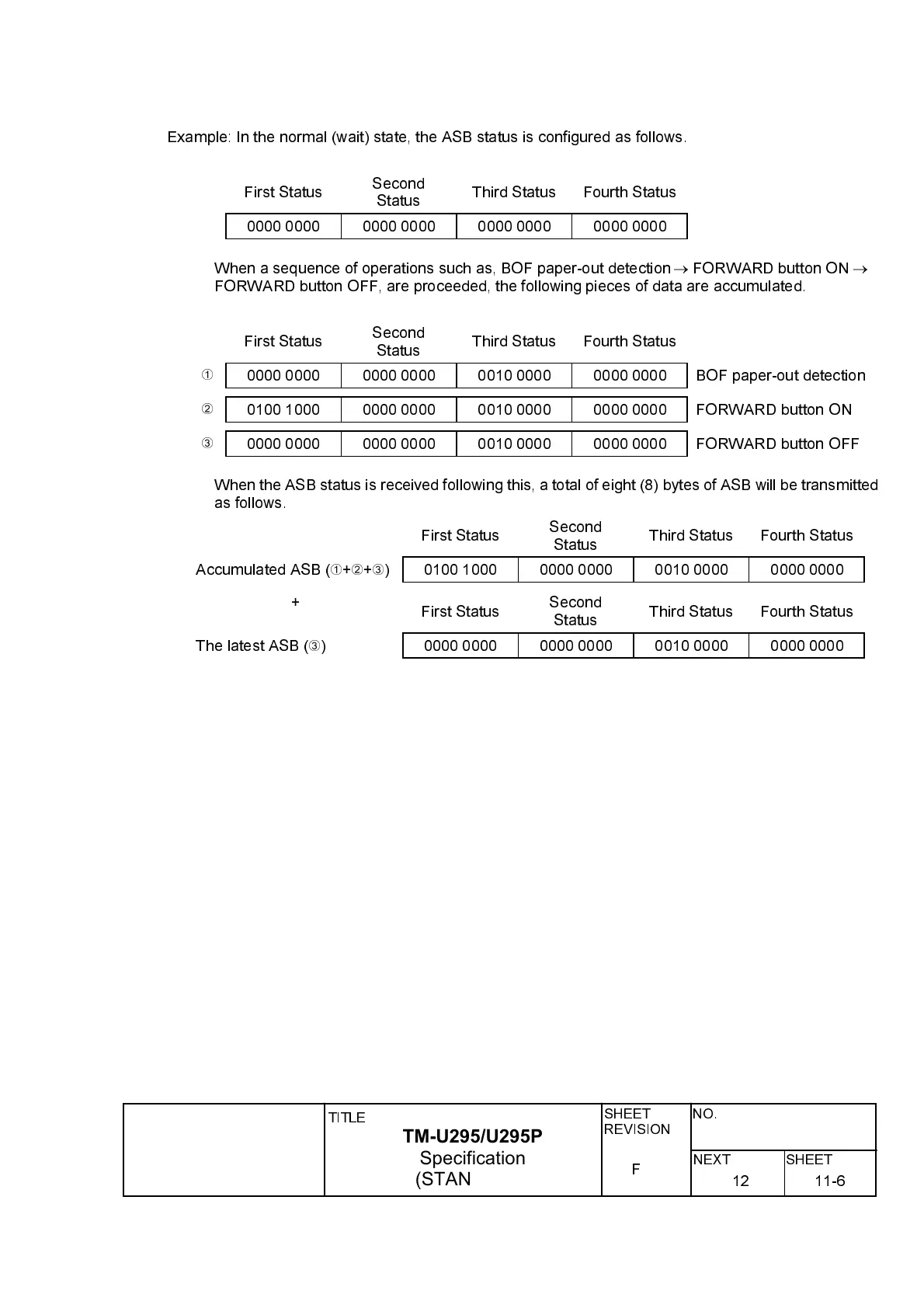

Example: In the normal (wait) state, the ASB status is configured as follows.
First Status
Second
Status
Third Status Fourth Status
0000 0000 0000 0000 0000 0000 0000 0000
When a sequence of operations such as, BOF paper-out detection ® FORWARD button ON ®
FORWARD button OFF, are proceeded, the following pieces of data are accumulated.
First Status
Second
Status
Third Status Fourth Status
À
0000 0000 0000 0000 0010 0000 0000 0000 BOF paper-out detection
Á
0100 1000 0000 0000 0010 0000 0000 0000 FORWARD button ON
Â
0000 0000 0000 0000 0010 0000 0000 0000 FORWARD button OFF
When the ASB status is received following this, a total of eight (8) bytes of ASB will be transmitted
as follows.
First Status
Second
Status
Third Status Fourth Status
Accumulated ASB ( À + Á + Â ) 0100 1000 0000 0000 0010 0000 0000 0000
+
First Status
Second
Status
Third Status Fourth Status
The latest ASB ( Â ) 0000 0000 0000 0000 0010 0000 0000 0000
