TM-U295/U295P
Specification
(STANDARD)
20 19
Output waveform: Outputs the waveform in Figure 2.2.3 to points A and B in Figure 2.2.4. (The
ESC p command specifies ON time t1 and OFF time t2 .)

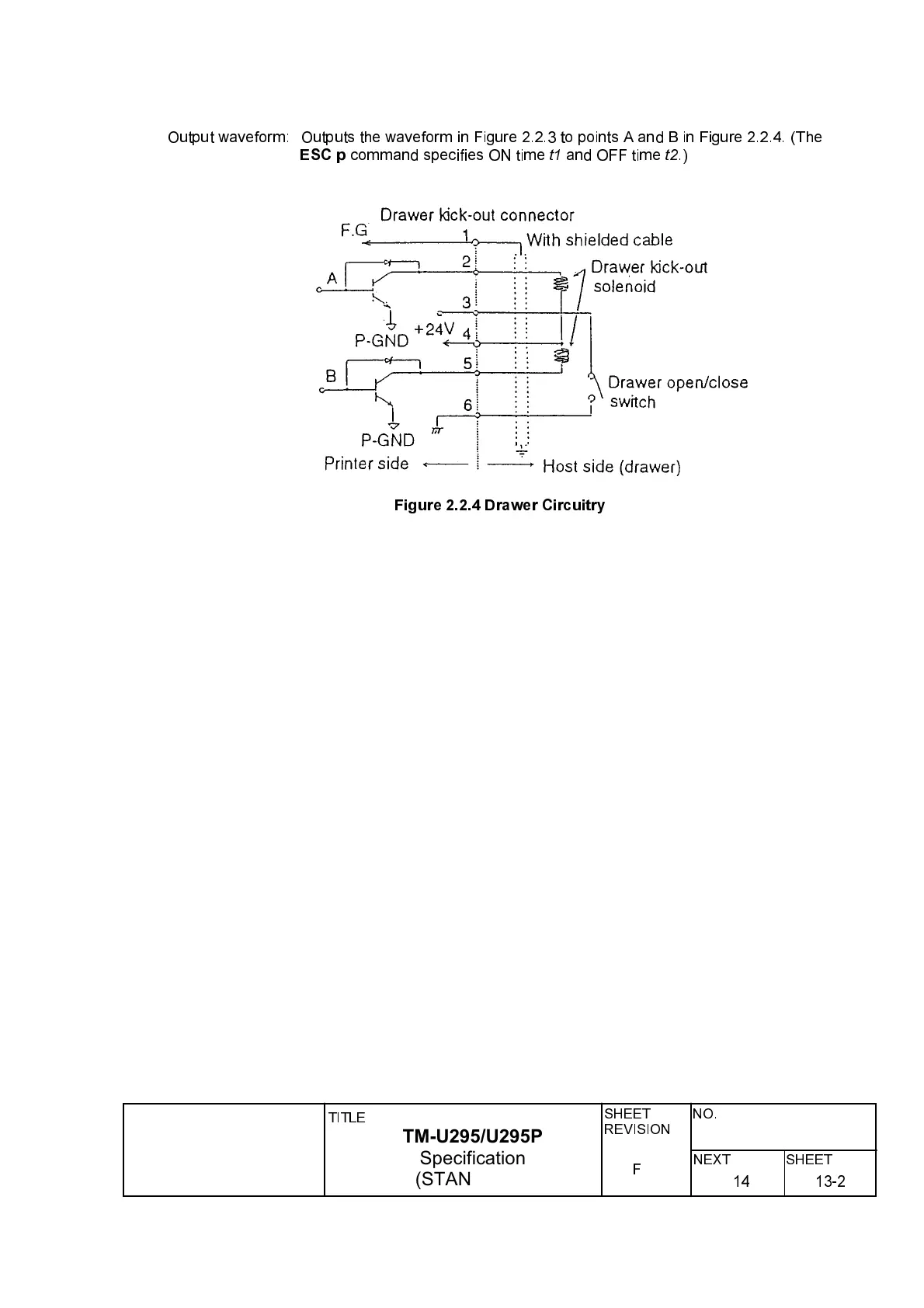

Figure 2.2.4 Drawer Circuitry
13-214
