Epson VT6L

Maintenance 8. Cable
152 VT Rev.1
(15)

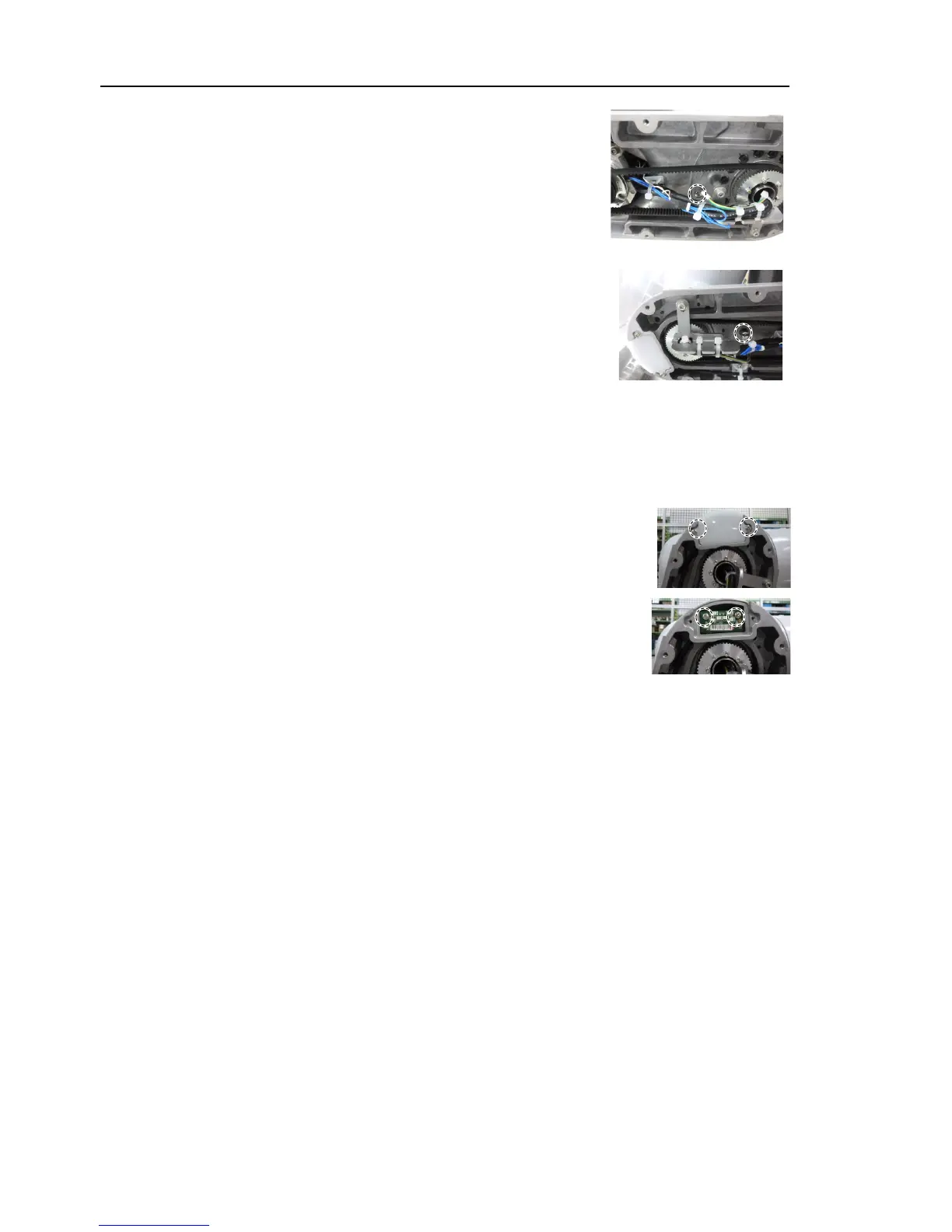

Remove the ground wire terminals
of Arm #2.
Cross recessed head screws: 2-M4×6
(16)
Remove the
Joint #2 motor.
Reference: Maintenance 10.1 Replacing Joint #2 Motor
(17)
Remove the Joint #3 motor.
Reference: Maintenance 11.1 Replacing Joint #3 Motor
(
18)
Remove the
light guide plate.
Cross recessed head screws: 2-M3×10
(19
)
Unscrew the cross recessed head screws fixing
the LED
board.
Cross recessed head screws: 2-M3×6
