7.17.9.2 H248 Terminations Configuration
a. Whilst still in the “VoIP Management” window select the “H248
Terminations” button, at the top of the screen. The window will default to
the “Termination” tab.
b. Select “File” then “Open”, navigate to the relevant folder and select the 1
st
appropriate Generic H248 Terminations – Slot x.trm file required for the
specific POTS card slot position. The options are:-
“Generic H248 Terminations – Slot 3.trm”
“Generic H248 Terminations – Slot 5.trm”
“Generic H248 Terminations – Slot 7.trm”
“Generic H248 Terminations – Slot 9.trm”
“Generic H248 Terminations – Slot 11.trm”
“Generic H248 Terminations – Slot 13.trm”
“Generic H248 Terminations – Slot 15.trm”
“Generic H248 Terminations – Slot 17.trm”
“Generic H248 Terminations – Slot 19.trm”
“Generic H248 Terminations – Slot 21.trm”

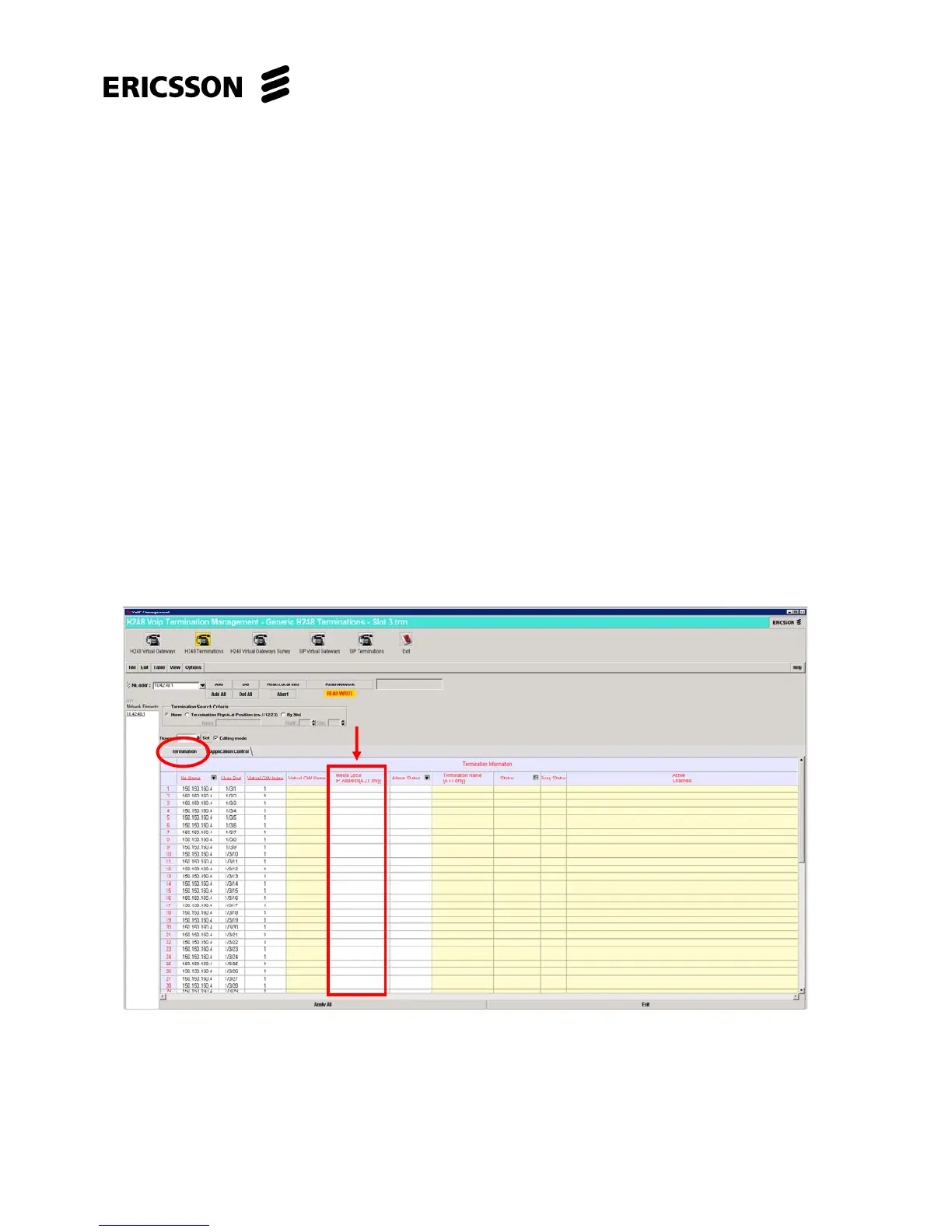

c. Select “Open” then the H248 Terminations table will be filled in and the
following screen will be displayed:-
d. The displayed screen will default to the “Termination” tab.
