42 VAC output
Inside the unit there is a connection for 42
VAC, that can supply external units. Max
output current depends on the connected
welding power source.
• At the back at the unit, remove the plug
from the hole.
• Insert a cable fitting with strain relief into
the hole.
• Insert cable and secure it with the strain
relief at the cable fitting.

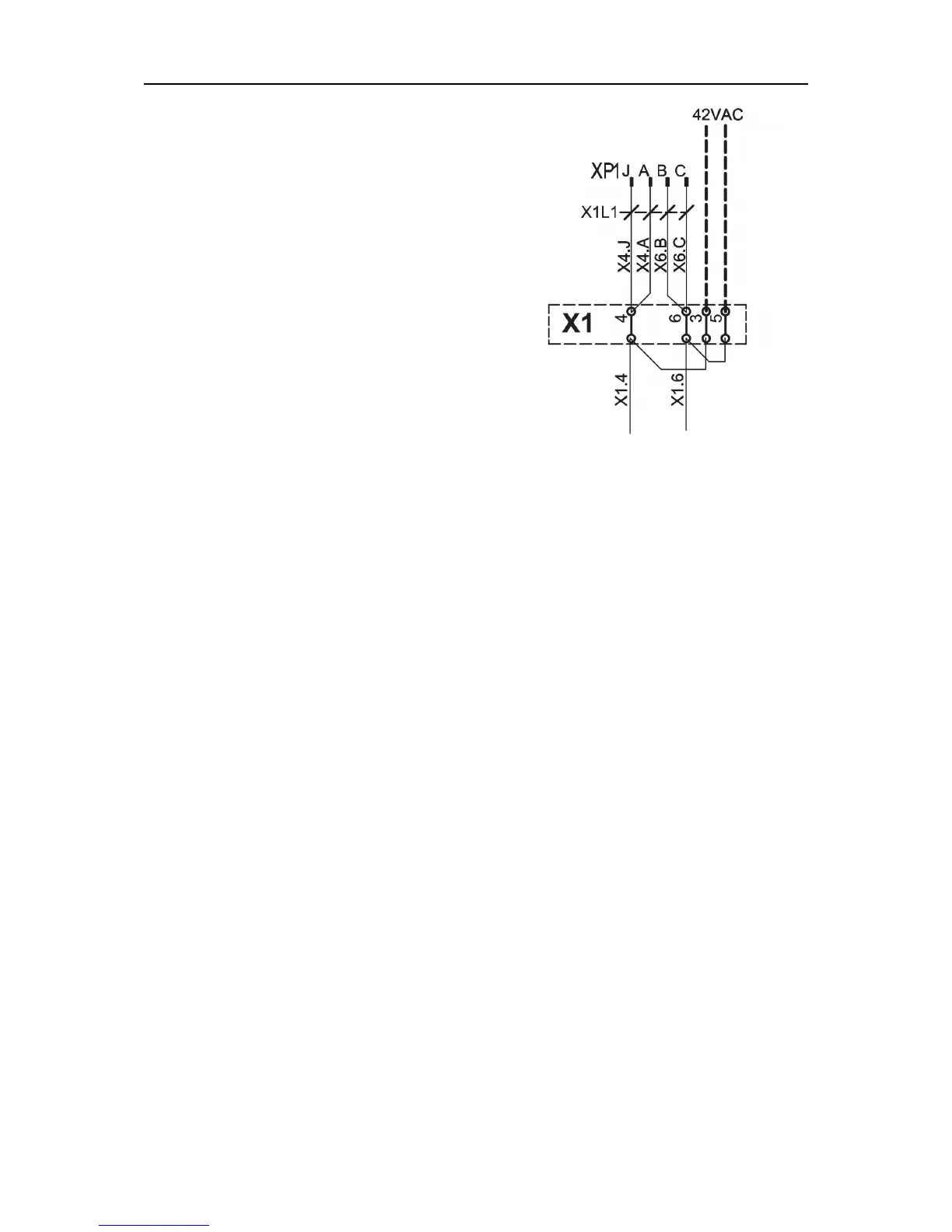

• Connect the cable to terminal block X1
at3and5.
42 VAC Output
