ESAB A2-A6 PEK - A2, A6 PEK Control Unit, Serial No. 921-, 943-, 049-, 327-XXX-XXXX

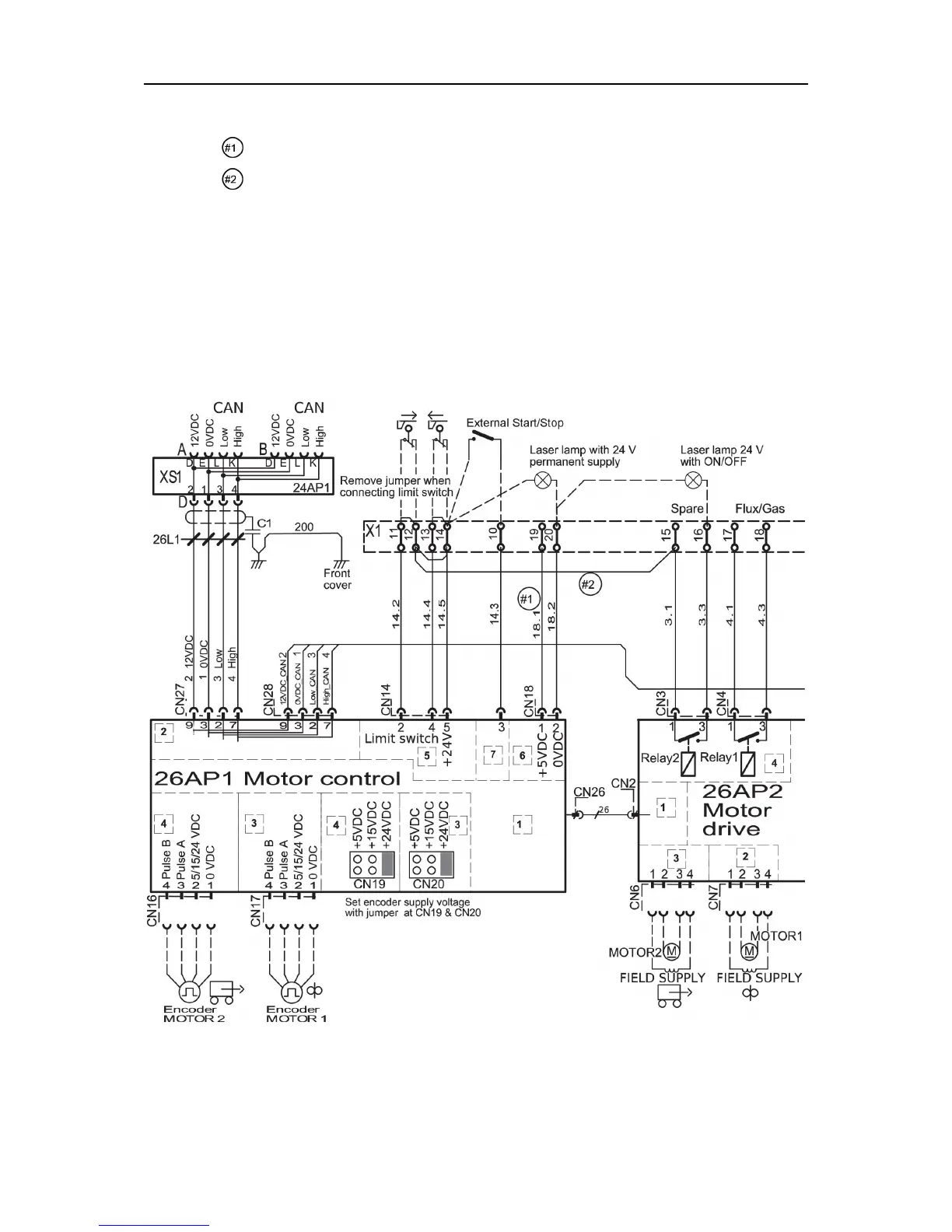

WIRING DIAGRAM
0740 801 028
- 8 -
© ESAB AB 2017
A2, A6 PEK Control Unit, Serial no. 921-, 943-, 049-, 327-xxx-xxxx
Updates:
From serial no. 921-010-XXXX: Cable 18.1 removed
From serial no. 921-010-XXXX: Wire jumper X1:12 to X1:15 introduced
