ESAB A2-A6 PEK - 26 AP1:6 Laser Lamp Supply; 26 AP1:7 External Start;Stop Switch

DESCRIPTION OF OPERATION
0740 801 028
- 38 -
© ESAB AB 2017

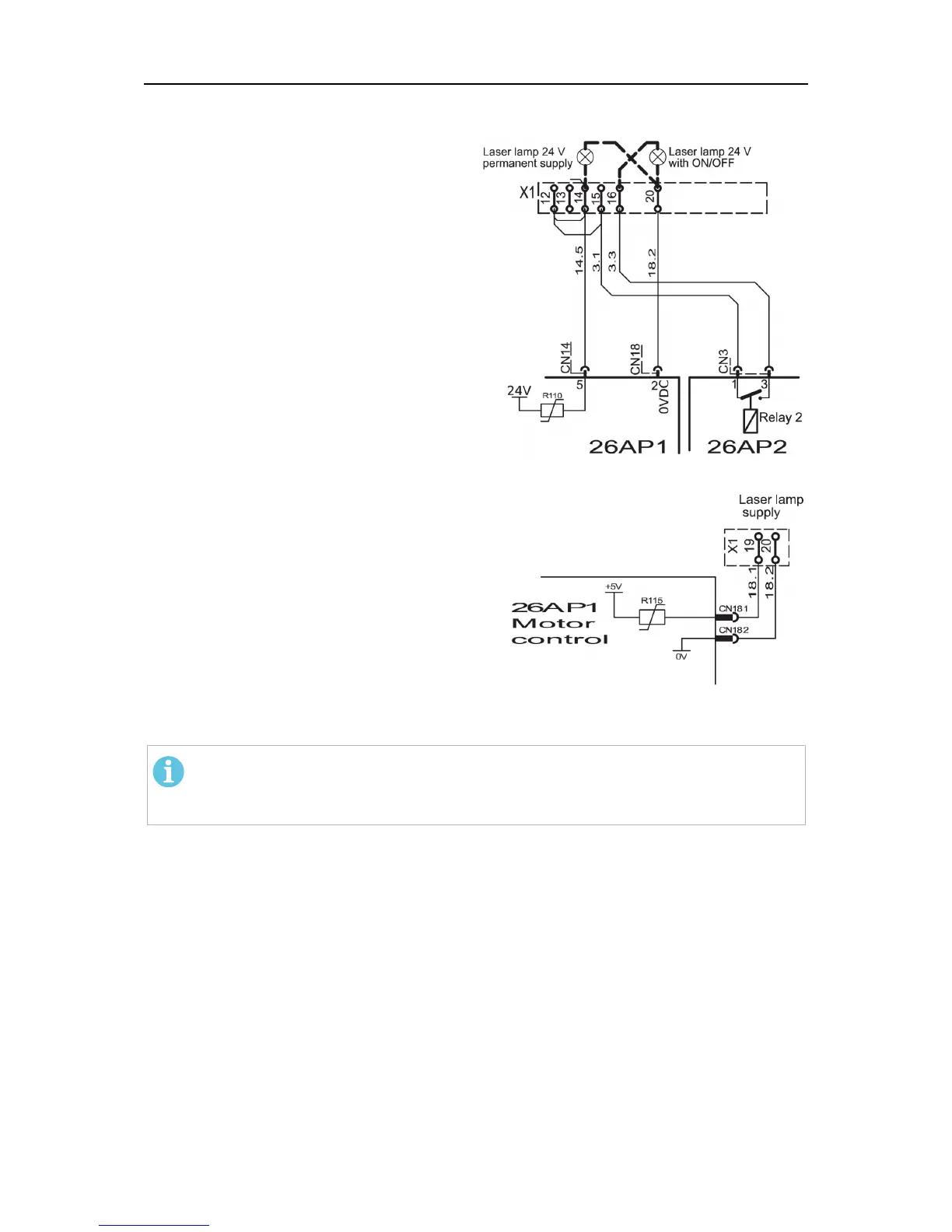

26AP1:6 Laser lamp supply
After serial no. 921-010-xxxx
The laser lamp supply is powered with +24 V
from the +24V on the 26AP1 motor control
board.
Continuos power is supplied from CN14:4 to
X1:14. Jumper wires then connects X1:14,
X1:12 and X1:15, to feed the power to CN3
and the relay on 26AP2.
A lamp connected to X1:16 can then have
ON and OFF controlled by the software.
The current from the lamp is connected to 0V
at 26AP1 via CN18:2
Before serial no. 921-010-xxxx
The laser lamp supply is powered from the
+5V on the 26AP1 motor control board.
NOTE!
The 5 V laser lamp connection is not recommended, see "Laser lamp supply
24V" in “Internal connections”, page15.
26AP1:7 External Start/Stop switch
An external switch can be connected to X1:10 and used as external weld Start/Stop signal.
