INSTALLATION AND CONNECTIONS
0740 801 028
- 13 -
© ESAB AB 2017
INSTALLATION AND CONNECTIONS
The unit have several connections both external and internal. Some connections require
ready-made cables. These are availible as accessories. Use cable restrainers to secure the
cables.
For general information about operation, see the instruction manuals for the power source
and connected units.

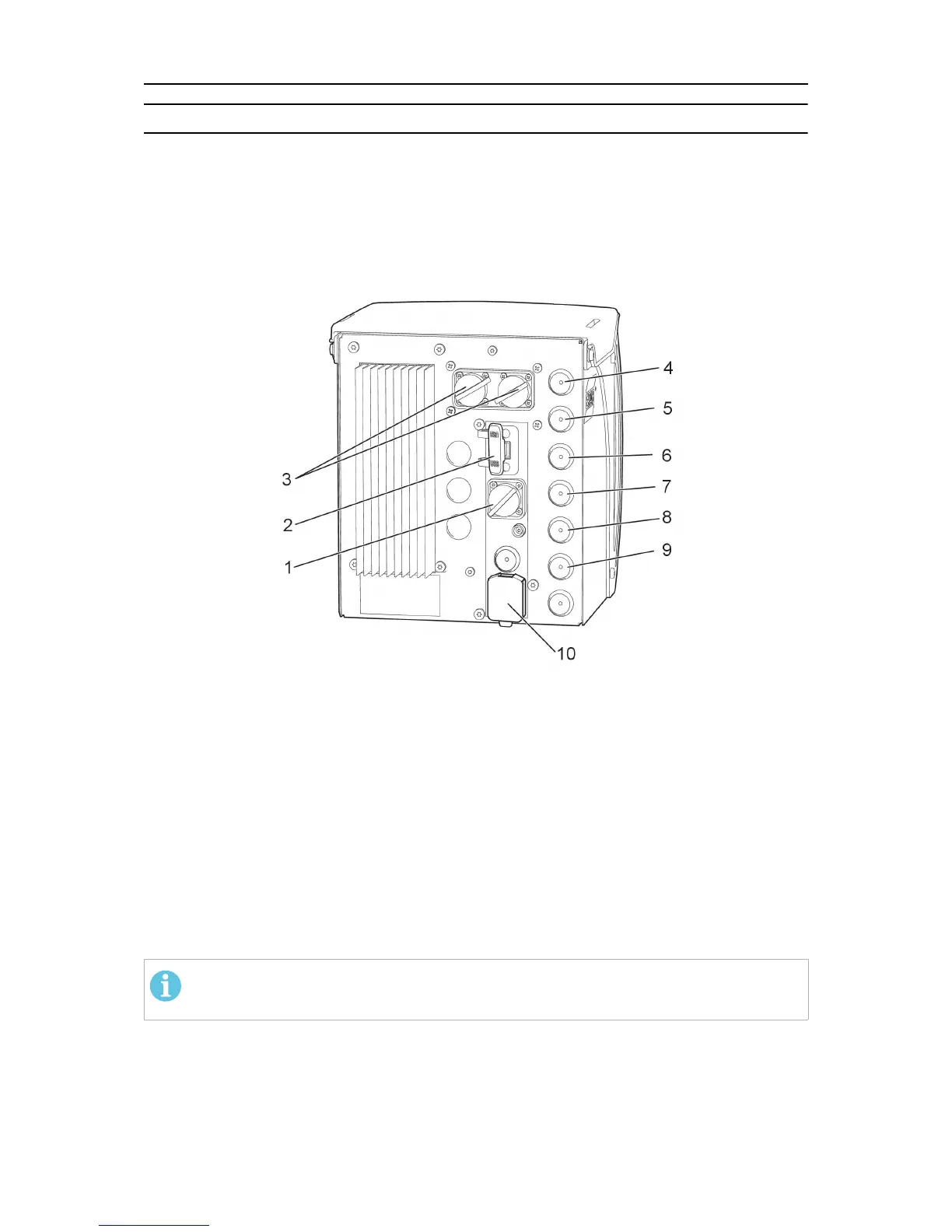

External connections
1. Connection for control cable to welding
power source
6. Inlet for cable (travel motion pulse
encoder)
2. USB connection 7. Inlet for cable (arc voltage feedback)
3. Connection (CAN) for remote control unit
or service tool
8. Outlet for motor cable (travel motion)
4. Inlet for cable (limit switches, magnetic
gasvalve)
9. Outlet for motor cable (wire feed)
5. Inlet for cable (wire feed pulse encoder) 10. LAN connector, Ethernet port used to
connect to WeldCloud™ Mobile
(fromserialno.628-xxx-xxxx)
Connection for power source (1)
Connection for the welding power source with 42 VAC power supply, arc voltage feedback,
emergency stop and CAN bus.
NOTE!
To prevent damage to the equipment ensure that the right type of cable is used.
