1AP1:5 Encoder monitoring
The panel has four rotary encoders for menu and value settings. Turning the encoder (1-3)
briefly connects contact 2 (0 V) to contacts 1 and 3, but with a slight time difference between
them. This generates pulses that are displaced by about 90° relative to each other.
One square wave pulse is used as clock frequency and the other square wave pulse defines
the knob-turning direction by comparing the phase position (positive or negative) compared
to the clock frequency.

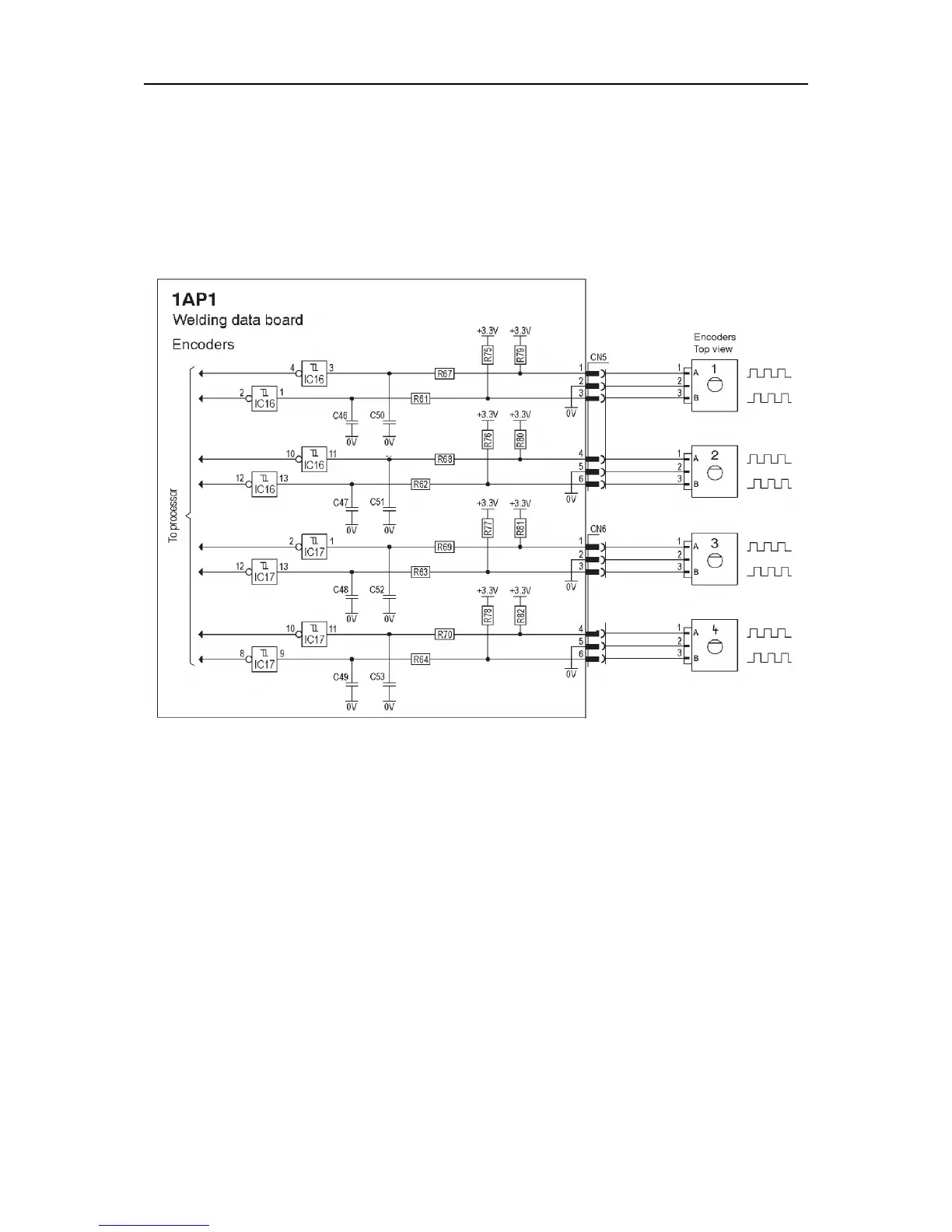

Circuit diagram for encoder monitoring
