DESCRIPTION OF OPERATION
0740 801 028
- 27 -
© ESAB AB 2017
1AP1:2 Display control
The display, 1AP2, is a graphic dot matrix display. It is matrix connected and it is function
tested at power on. Display contrast and background illumination cannot be adjusted.

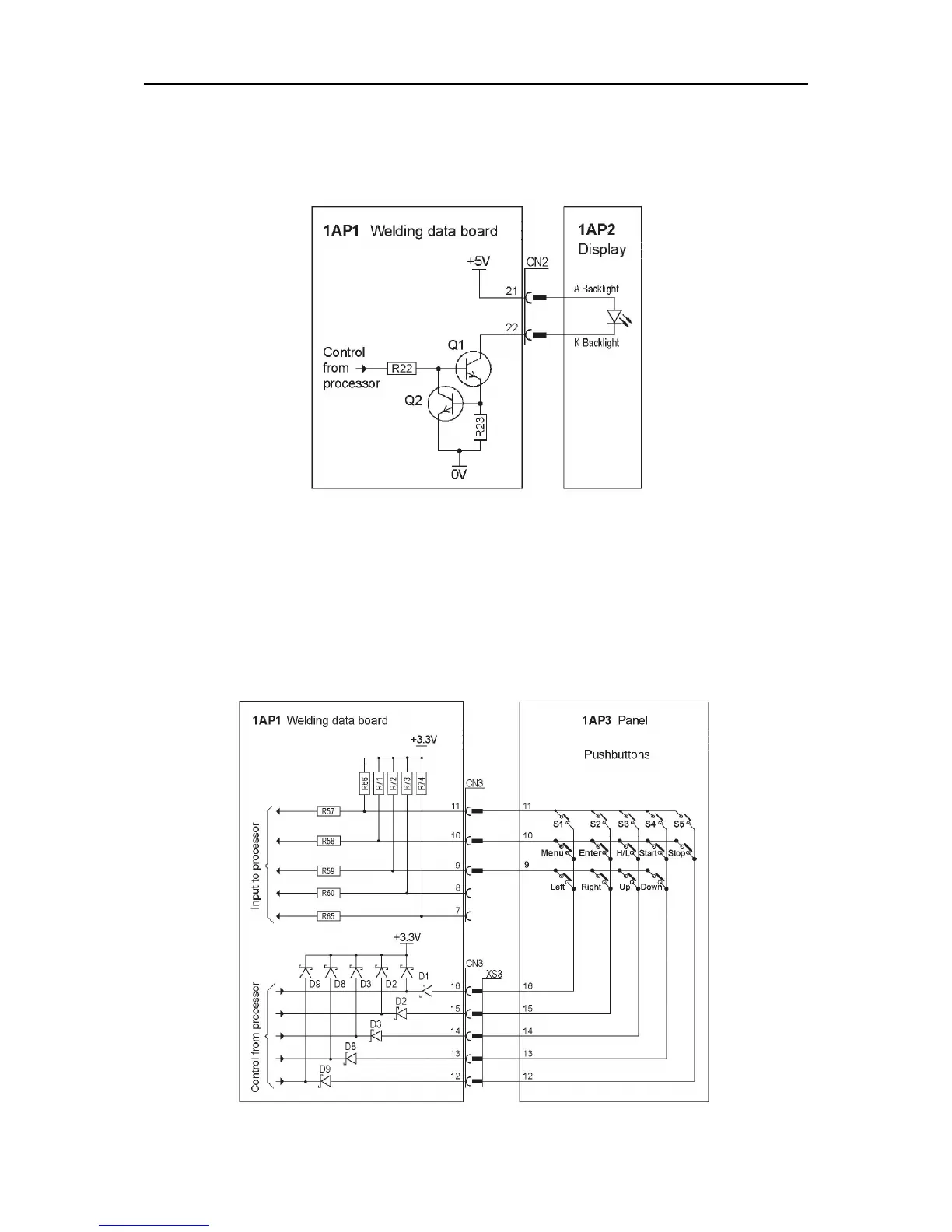

Circuit diagram for backlight illumination of the display
The processor controls via transistor Q1 and Q2 the background illumination (ON/OFF). To
increase the lifetime of the display the illumination is turned off after about 3 minutes, if the
MMC unit is not in use.
1AP1:3 Pushbutton monitoring
The control panel, 1AP3, includes a matrix with the front panel pushhbuttons
Circuit diagram for control panel pushbuttons
