-- 36 --
1sxx02cw

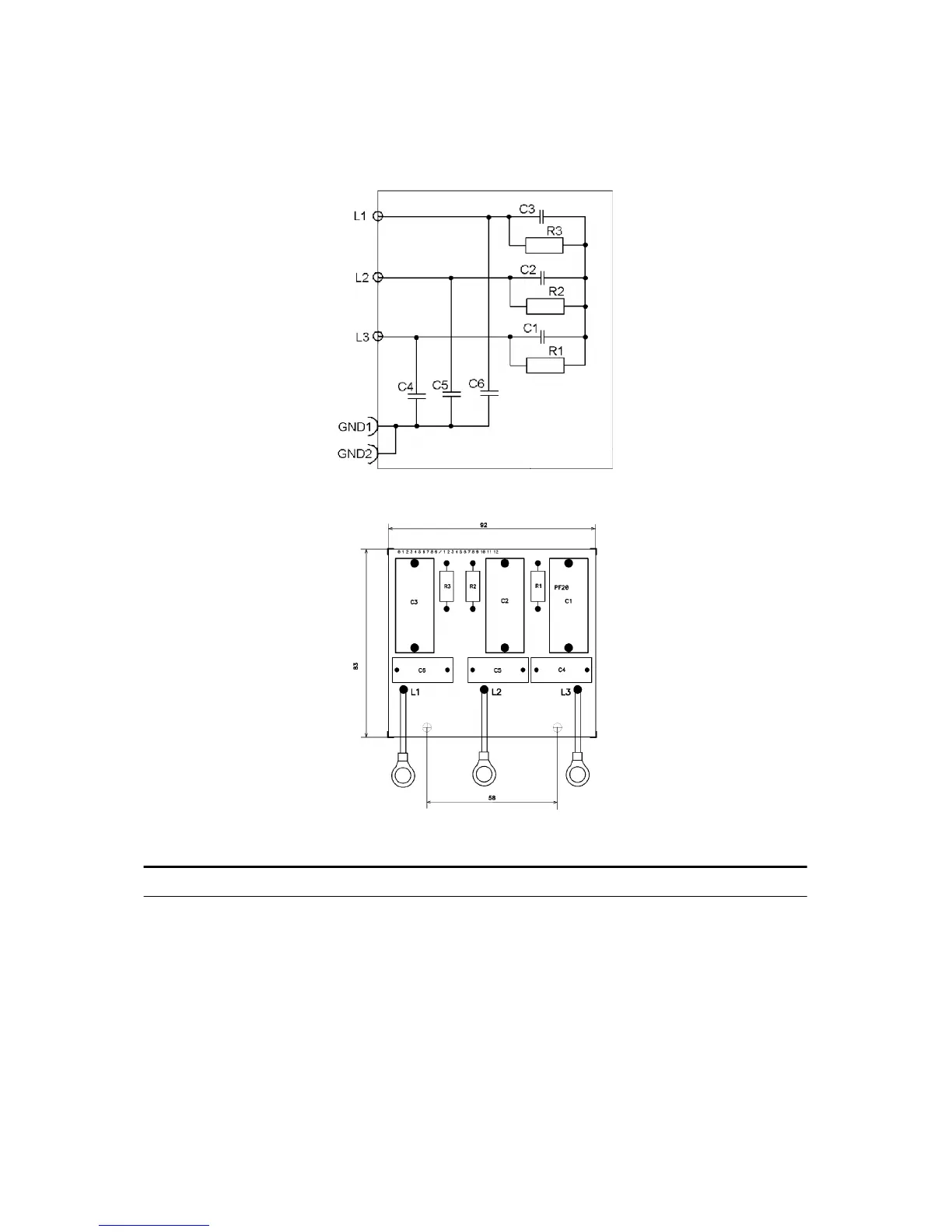

PF20 Suppression circuit board
PF20:1 Circuit diagram
PF20:2 Components positions
REMOTE CONTROLS
Remote control M1 can be connected to the power sources, these are described in a
separate service manual with filename / ordering no. xxx.
