-- 60 --
2sxx02cw
OPERATION
General safety regulations for the handling of the equipment appear from page
56. Read through before you start using the equipment!
WARNING -- TIPPING RISK!
Fasten the equipment -- particularly if the ground is uneven or sloping.

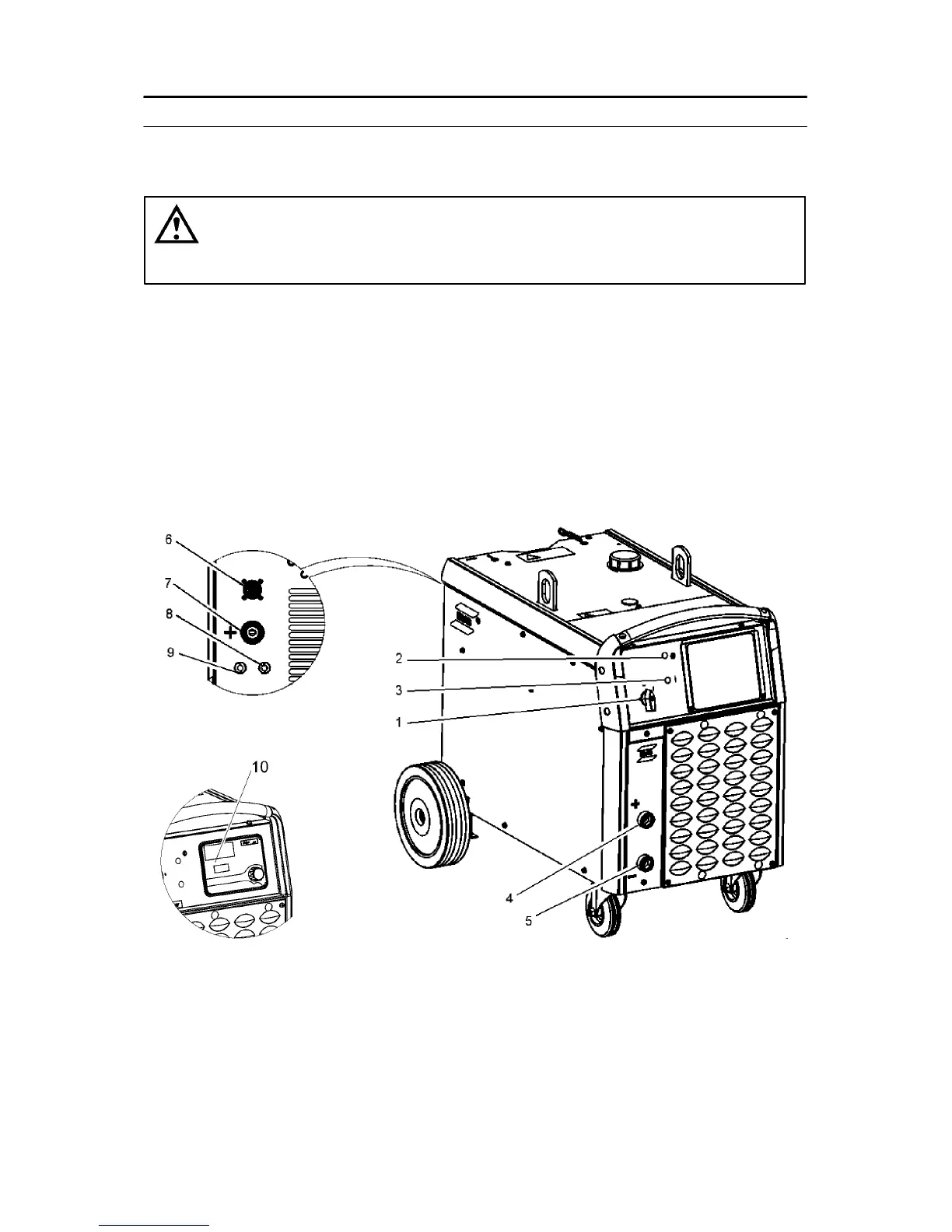

Connections and control devices
1 Mains supply switch 6 Control cable socket (from / to wire feeder)
2 Indicating lamp, power supply ON 7 Connection for weldng current cable (+)
3 Indicating lamp, overheating / fault 8 Connection BLUE for cooling water to the
wire feed unit
4 Connection for weldng current cable (+) 9 Connection RED for cooling water from
the wire feed unit
5 Connection for weldng current cable (--) 10 A24 panel -- accessory
Overheating protection
The power source has one thermal overload trip which operates if the internal
temperature becomes too high, interrupting the welding current and lighting the
orange indicating lamp on the front of the unit. It resets automatically when the
temperature has fallen and the indicating lamp will go out.
