-- 43 --
1sxx02cw

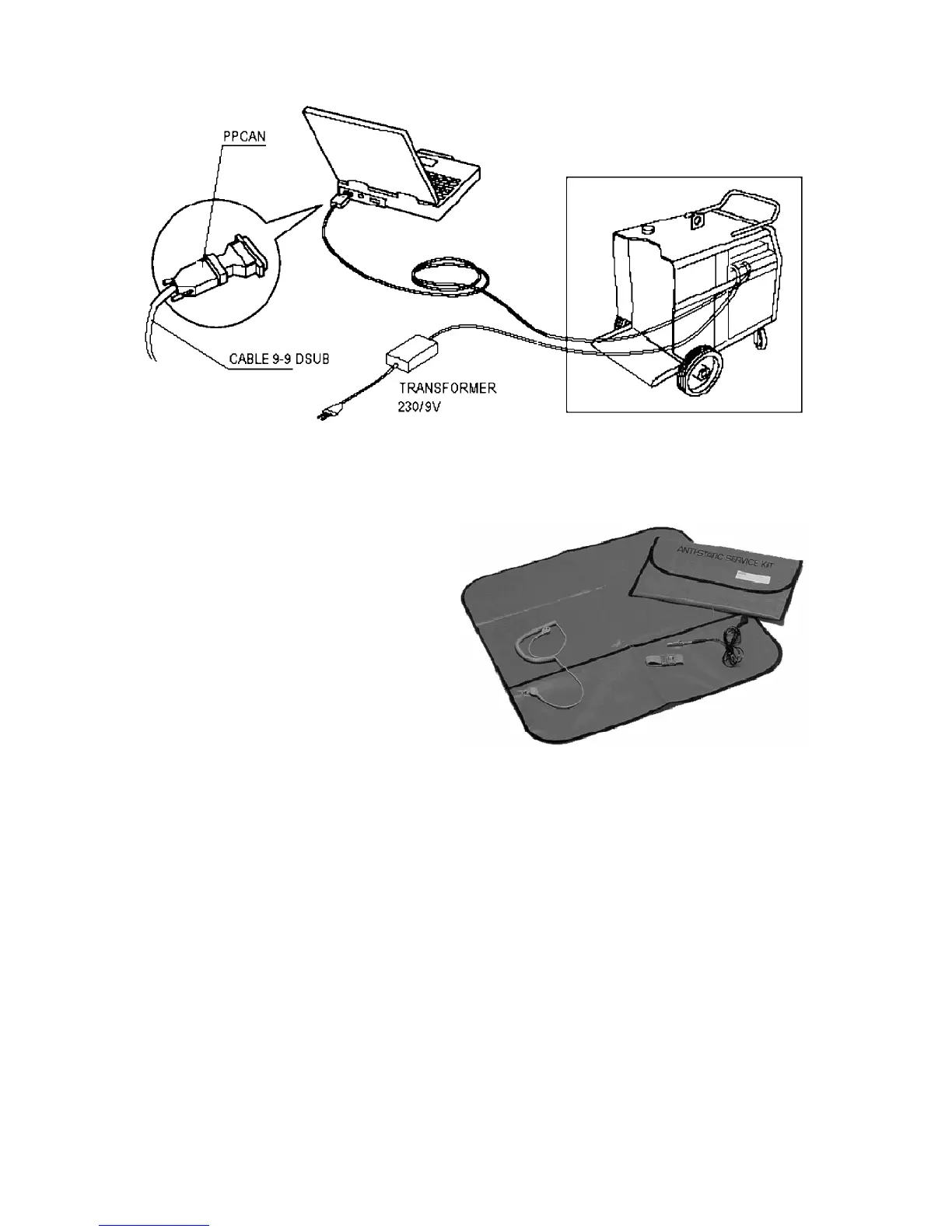

CAN connection
Antistatic service kit
Ordering no. 0740 511 001
The kit makes it easier to protect sensitve
components from electrostatic discharge.
Contents:
Conductive mat (size 610 x 610 mm)
1.5 metre long ground cable with a
crocodile clip
Adjustable wrist strap and cable with
inbuilt protective resistor
Antistatic service kit
Checking PWM signal
PWM signal can be checked booth on CB0 and ACH10 boards.
Output signal form CB0 comes to ACH10 and can be measured on R23. If MMA process is
chose -- measured signal without load on outlet, should looks similar as on below scope
screen. Amplitude should be about 15V, frequency 20kHz +/ --0,5kHz.
