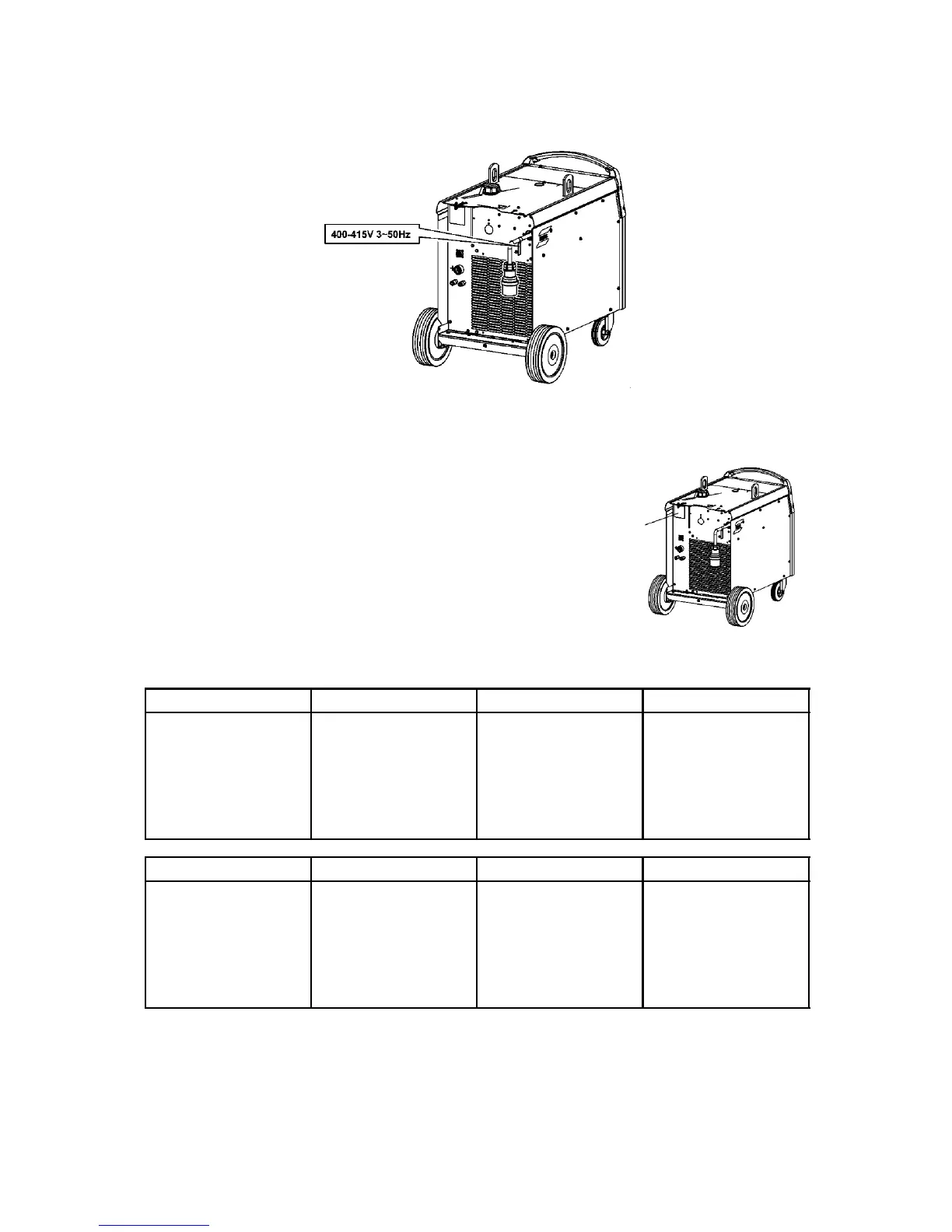

Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
Recommended fuse sizes and minimum cable areas
50Hz Mig 4002cw, 4002c Mig 5002cw, 5002c Mig 6502cw, 6502c
Mains voltage 230/400--415/500 V 230/400--415/500 V 230/400--415/500 V
Primary current
60% duty cycle
100% duty cycle
56/32(43*)/26 A
43/25/20 A
75/43(50*)/34 A
57/33/26 A
103/59(65*)/47
80/46/37 A
Mains cable area (4x) 10/4/4 mm
2
16/6/6 mm
2
25/10/10 mm
2
Fuse anti--surge 35/25(50*)/20 A 63/35(50*)/35 A 80/50(63*)/50 A
60Hz Mig 4002cw, 4002c Mig 5002cw, 5002c Mig 6502cw, 6502c
Mains voltage 230/440--460 V 230/440--460 V 230/440--460 V
Primary current
60% duty cycle
100% duty cycle
56/32(43*)/26 A
43/25/20 A
75/43(50*)/34 A
57/33/26 A
103/59(65*)/47
80/46/37 A
Mains cable area (4x) 10/4/4 mm
2
16/6/6 mm
2
25/10/10 mm
2
Fuse anti--surge 35/25(50*)/20 A 63/35(50*)/35 A 80/50(63*)/50 A
* AAG (Arc Air Gouging)
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
