-- 9 --
1sxx02cw
ACH10 Driver/relays circuit board
V0 Chopper module
X02 Connector, r Amphenol 10 pole or Burndy 12 pole (obsolete). For connection
to/from the wire feed unit
Origo
TM

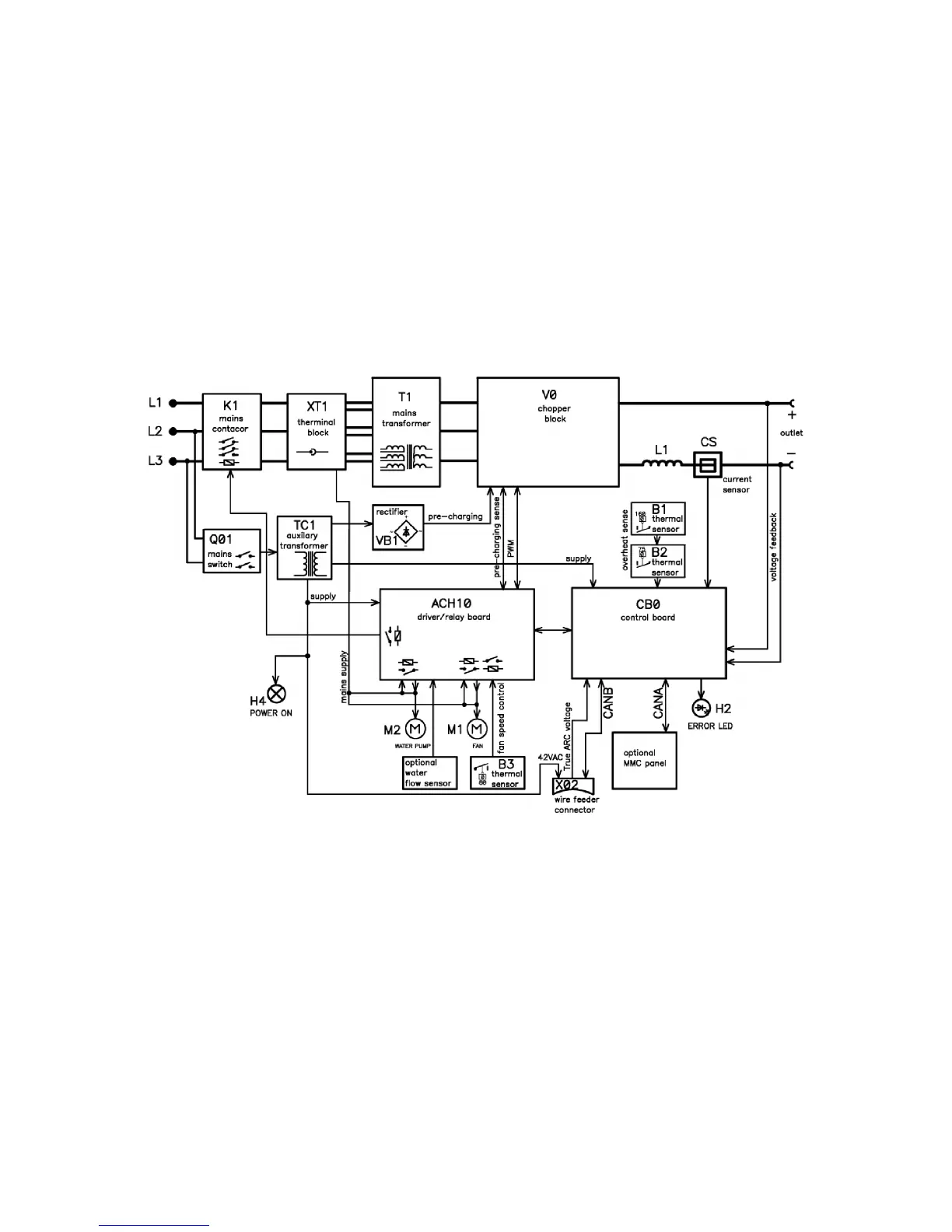

Mig 4002c / 5002c / 6502c block diagram
