ESAB Mig 4002cw - Checking Liquid Pump Circuit

-- 49 -- 1sxx02cw
speed is low, temperature sensor B3 is open -- voltage between X7:2--X7:1 should be
about 13V.

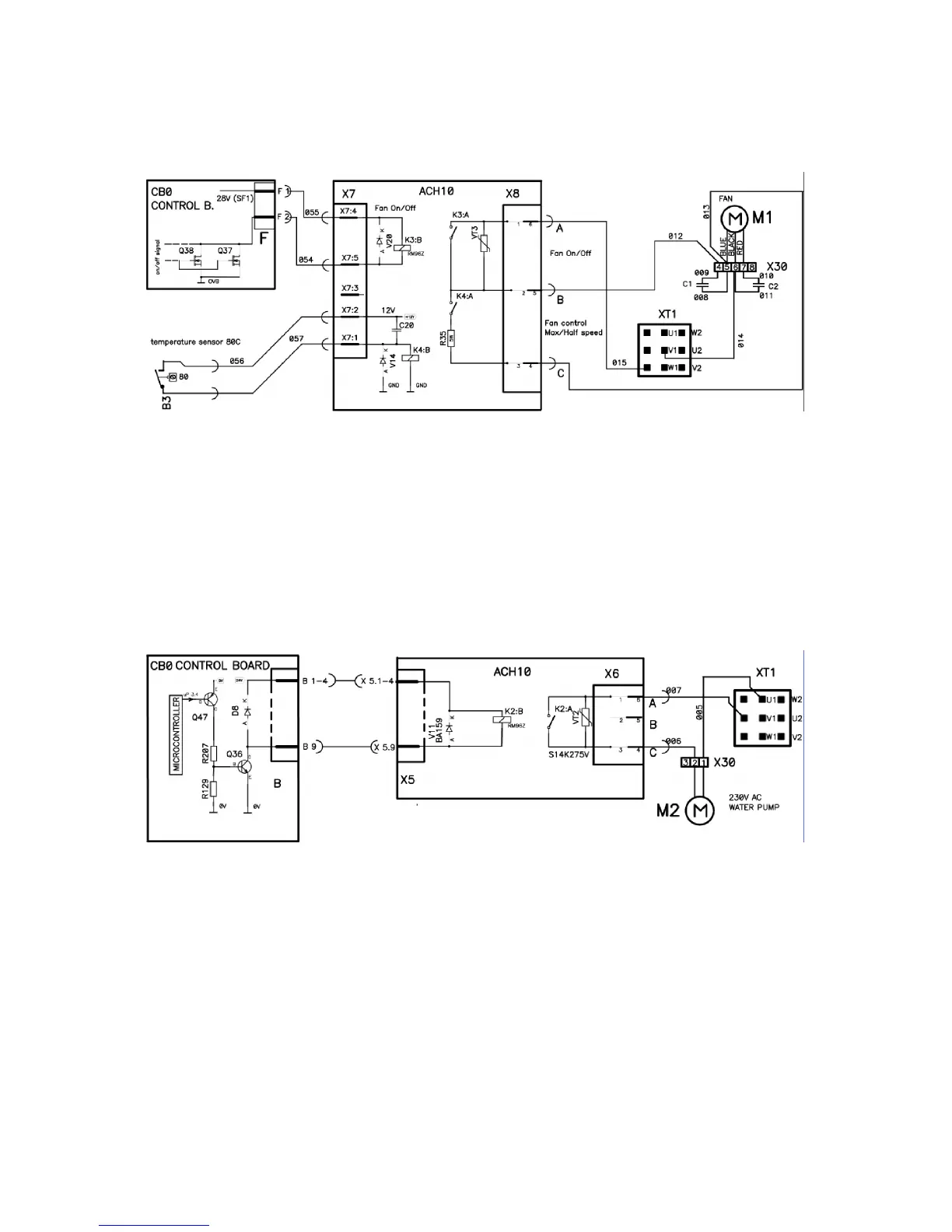

Checking liquid pump circuit
Check if relay K2 on ACH10 closes when ELP switch on wire feeder is up. When K2 on
ACH10 is closed voltage on diode V11 should be about 24V.
Be Careful! High Mains Voltage is on X6 connector.
When pump is off voltage between X8:A -- X8:C should be about 230V
When on -- 0V
