ESAB Mig 4002cw - Page 45

-- 45 -- 1sxx02cw

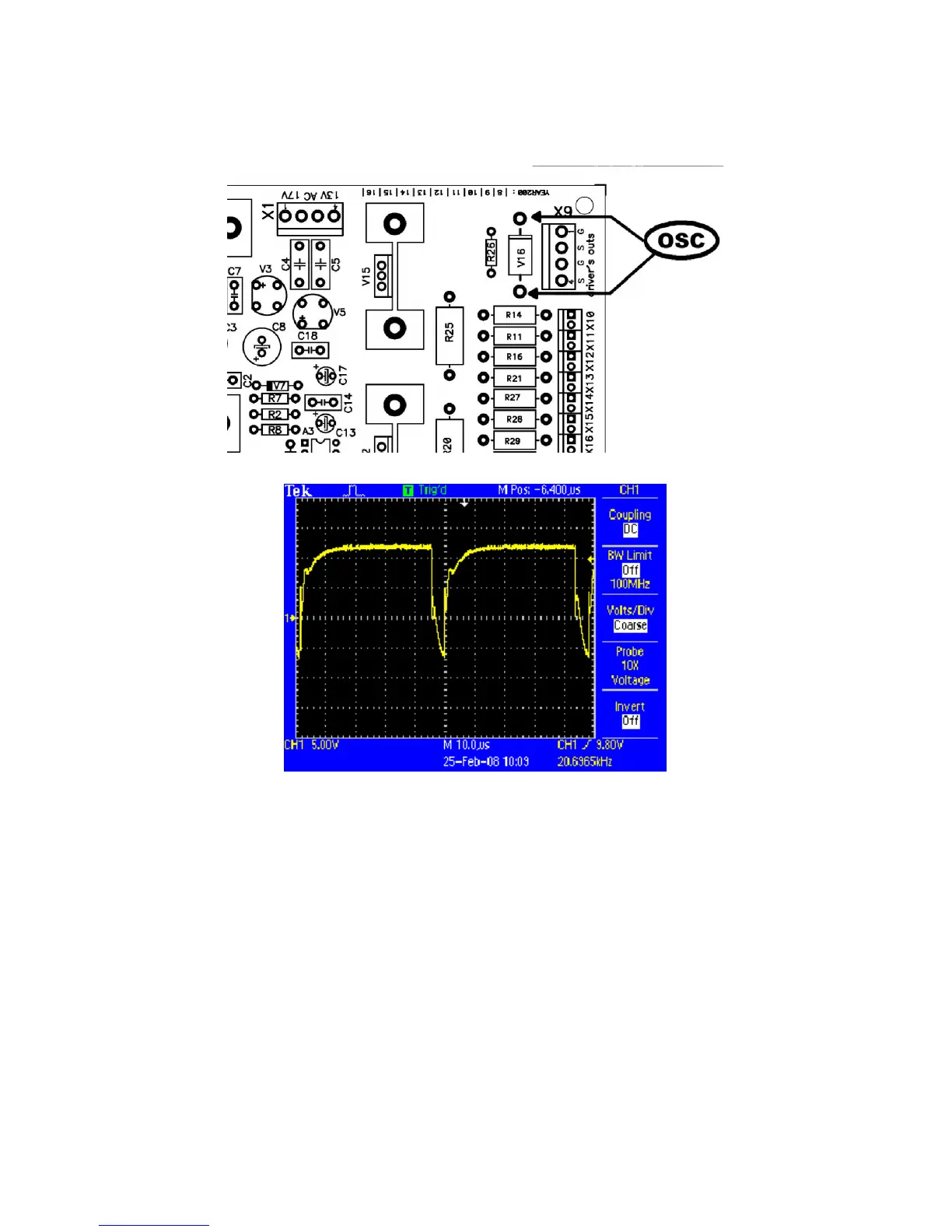

Output PWM signal from ACH10 can be checked on V16 (condition -- no load on output).
Amplitudes should be about +14V and -- 9V, frequency 20kHz ±0,5kHz, duty cycle about
90%.
