Bench Top User’s Manual
Names and Functions of Parts

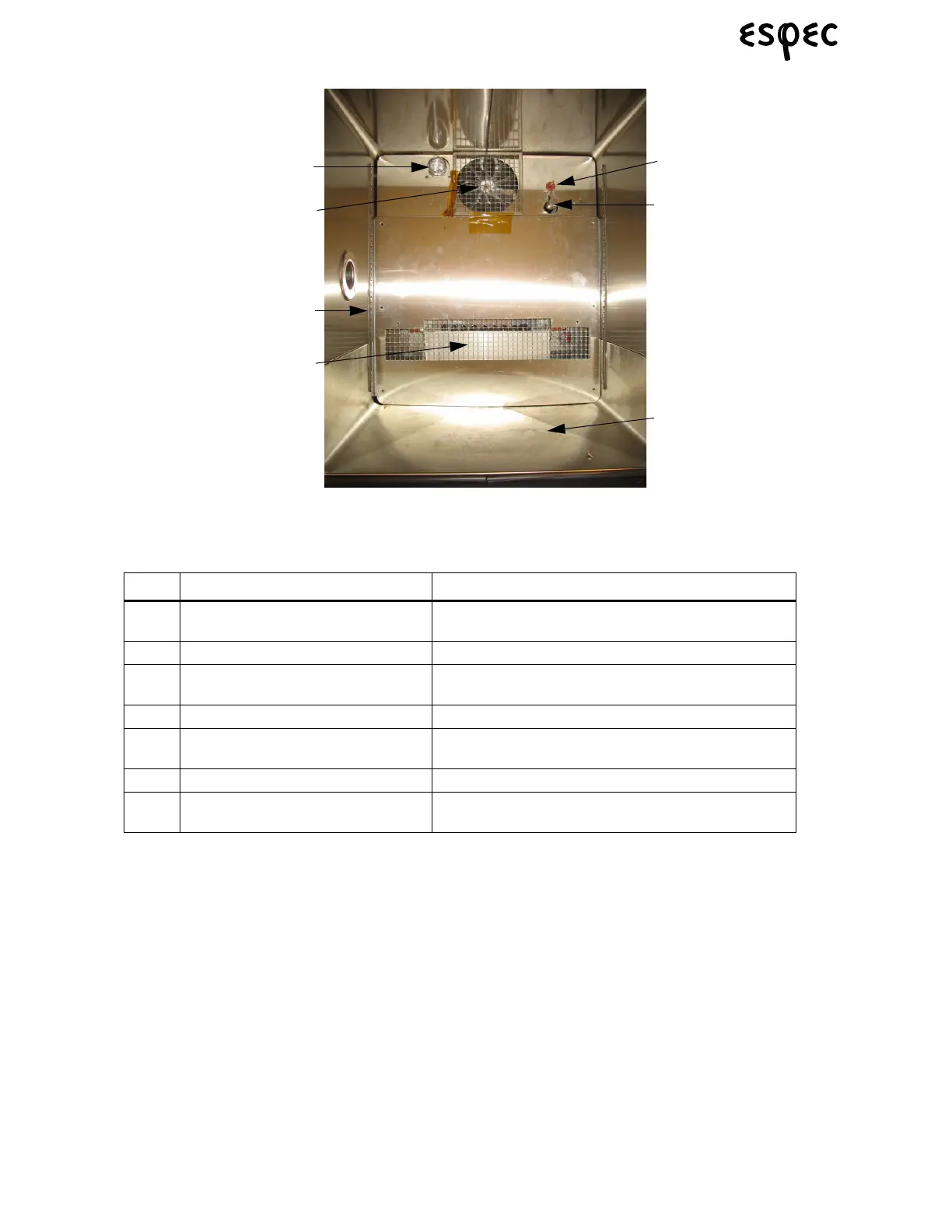

FIGURE 4.5.TEST AREA PARTS - SIZE 4 CHAMBER
Name Function/Use
(1) Test Area Area where specimens are located for temperature (&
humidity) tests.
(2) Shelf Support Install shelf clips here.
(3) Return Air Re-circulating air returns to the conditioning plenum
here. Do not block this grille.
(4) Chamber Lamp Light for the supplied workspace. (optional)
(5) Air Circulator Air is supplied to the product through this grille. Do not
block.
(6) Dry Temperature Sensor Measures the temperature of the chamber.
(7) Wet Sensor/Wick Arm or Solid State
Sensor
Measures the humidity of the chamber air. Only used on
BTL or BTX models (actual parts not shown.)
Chamber Lamp (4)
Air Circulator (5)
Shelf Support (2)
Return Air (3)
Dry Temperature Sensor (6)
Wet Sensor/Wick Arm or
Solid State Sensor (7)
Test Area (1)
