Bench Top User’s Manual
Installation
5.4.4 Checking Water Level in the Wick Pan
Procedure:
1. The standard water level in the wick pan arm should be set so that water does not overflow to the cham-
ber or is not extremely low.
2. The wick pan arm should be level.

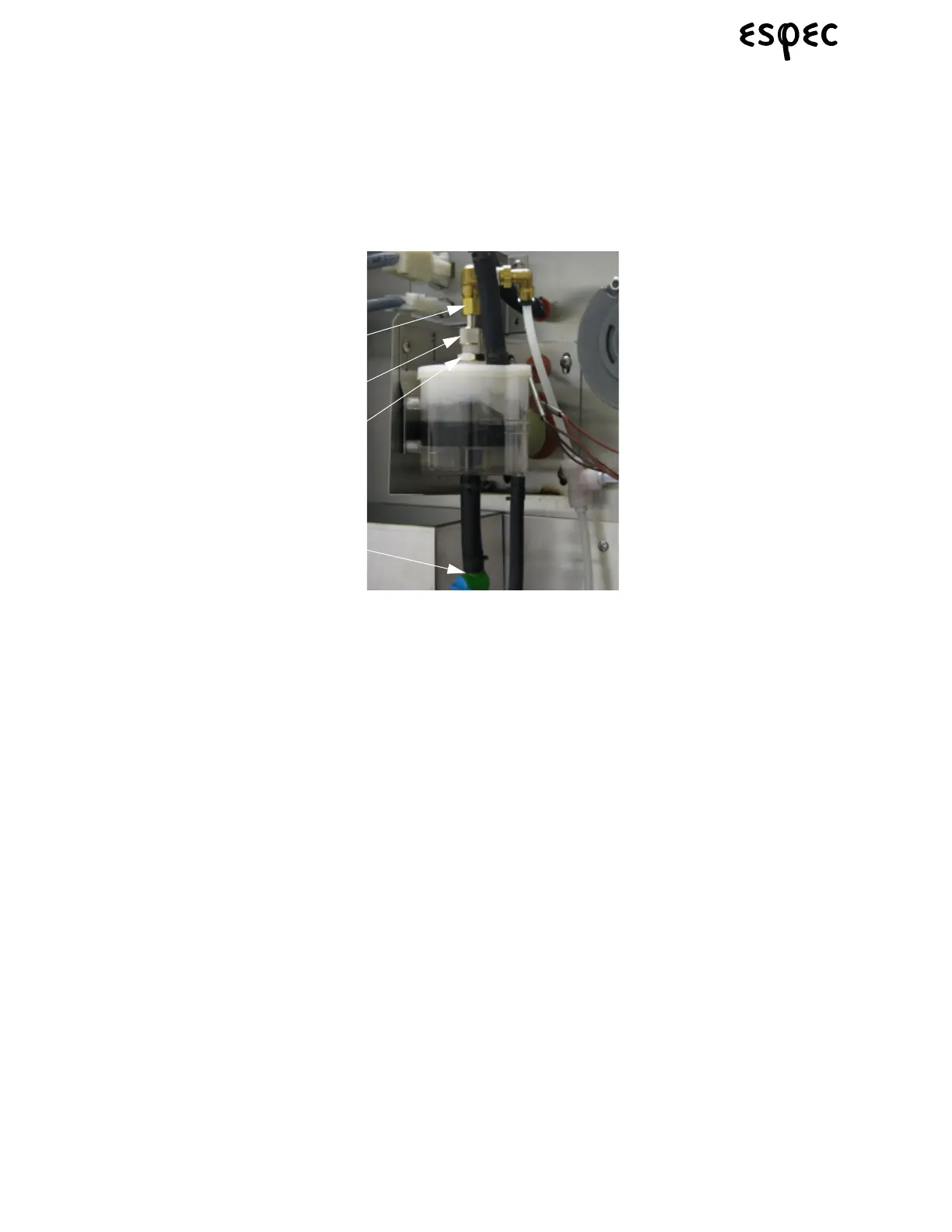

FIGURE 5.3.WATER LEVEL CHECK IN WICK PAN
Reference: If water level in the wick pan is low or high, regulate it as follows:
1. Stop the supply of water and drain the water from inside the pan by opening the valve below
the water level regulator.
2. Remove the box nut on the water supply side.
3. Loosen the nut on the water supply side.
4. Adjust the water level to the standard line by turning the valve seat. Turn clockwise when
the water level is higher than the standard line and turn counter clockwise when lower.
5. Tighten the nut, taking care so that the valve seat does not turn along with it.
6. Re-supply water after tightening the box nut and closing the water valve, and check the
water level.
7. Repeat steps 1-6 when the water level cannot be adjusted in one try.
Box Nut
Valve
Seat
Nut
Valve
To Next Page
