ESPEC BTX-475 - Page 27

Bench Top User’s Manual
Installation

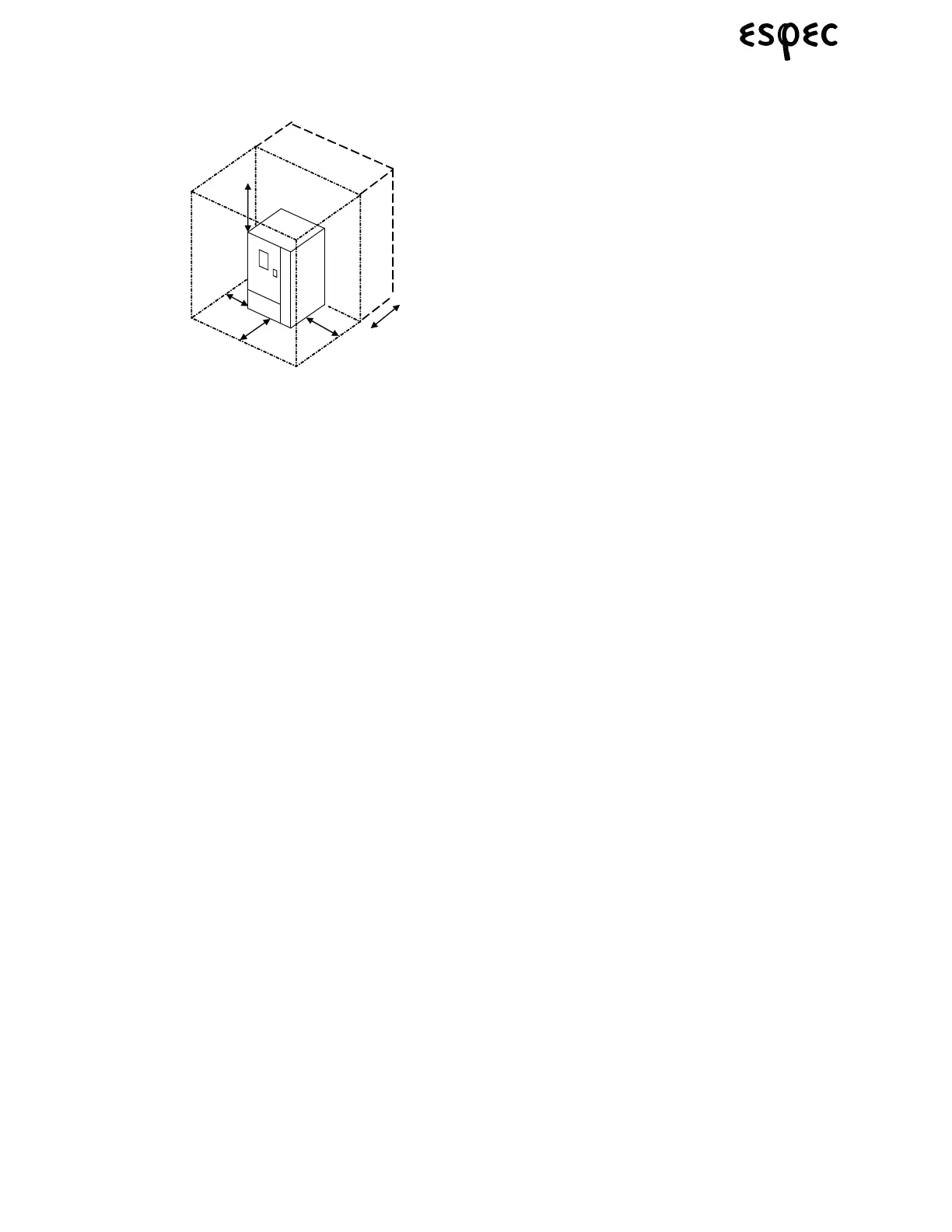

FIGURE 5.1.INSTALLATION SPACE
A
A
B
C
D
A : Min. 11.18 ins (30
cm)*
B : Min. 23.62 ins. (60
cm)
*These dimensions are the operating space required.
Maintenance space required is 24” (61.2 cm), however
the chamber can easily be moved for maintenance.
A: Min. 7” (10cm)*
B: Min. 24” (61cm)
C: Min. 36” (91.8 cm)
D: Min. 0” (0 cm)*
