7) Replace the LCD case 1 assy after unscrewing 4 fixing screws.

8) Replace the control board assy after removing 4 board fixing screws and all of the

harnesses connected to the control board assy.

9) Replace the LCD panel assy after removing 4 fixing screws, LCD harness and touch

panel harness.

10) Procedure of disassembling is finished.

Reassemble it with the opposite procedures of disassembling.

Calibrate the touch panel after these processes (Refer to 7-3).

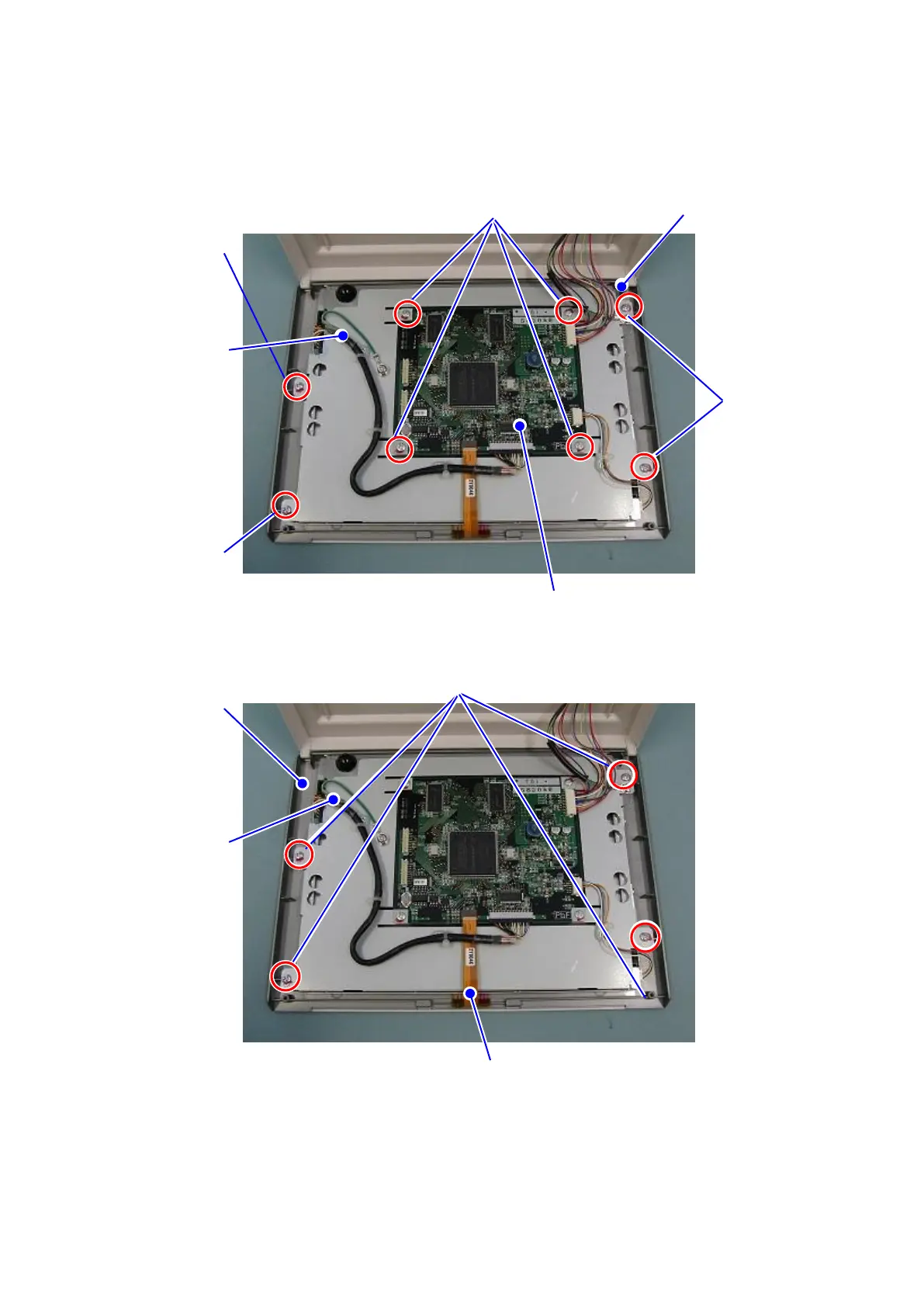

Fixing screws

LCD harness

Touch panel harness

LCD panel assy

Board fixing screws

Control board assy

Fixing screws

Fixing screw

LCD case 1 assy

LCD harness
