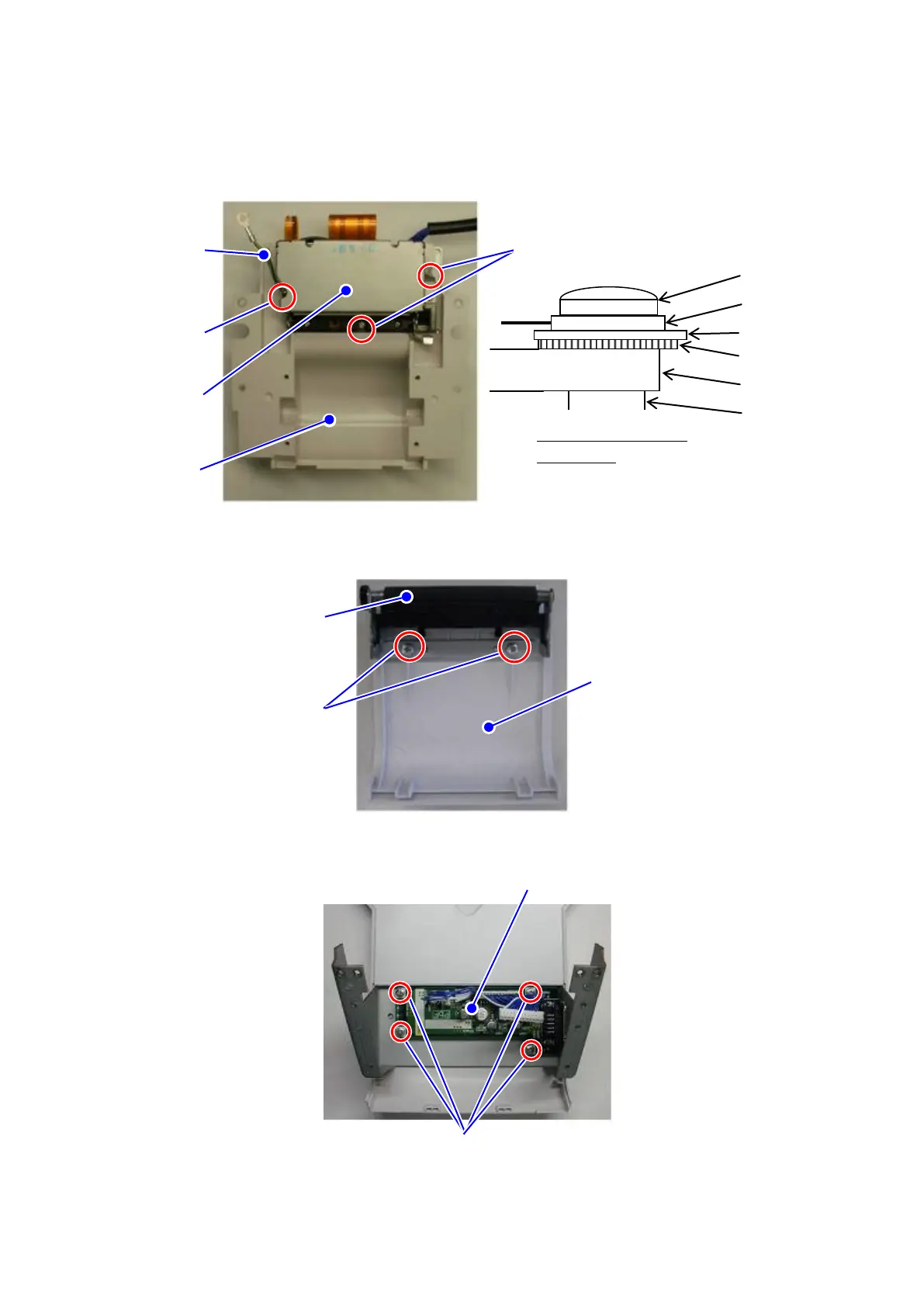

12) Replace the printer flame harness after unscrewing the fixing screw (long).
13) At the time of reassembling after replacing 10), 11) and 12) above, be careful about the
place of the screw clamp and the fixing order of the printer flame harness.
14) Replace the printer cover or the roller unit after unscrewing 2 fixing screws.
Reassemble it as the roller unit to be parallel to the case.
15) Replace the relay board assy after unscrewing 4 board fixing screws and removing all of
the harnesses connected.
Wiring direction of
earth unit
To Next Page
