9) Replace the printer control board assy after unscrewing 4 board fixing screws and

removing all of the harnesses connected.

10) Replace the thermal printer after unscrewing 3 fixing screws and removing the earth

harness.

11) Replace the printer case after removing the thermal printer and the printer control

board assy.

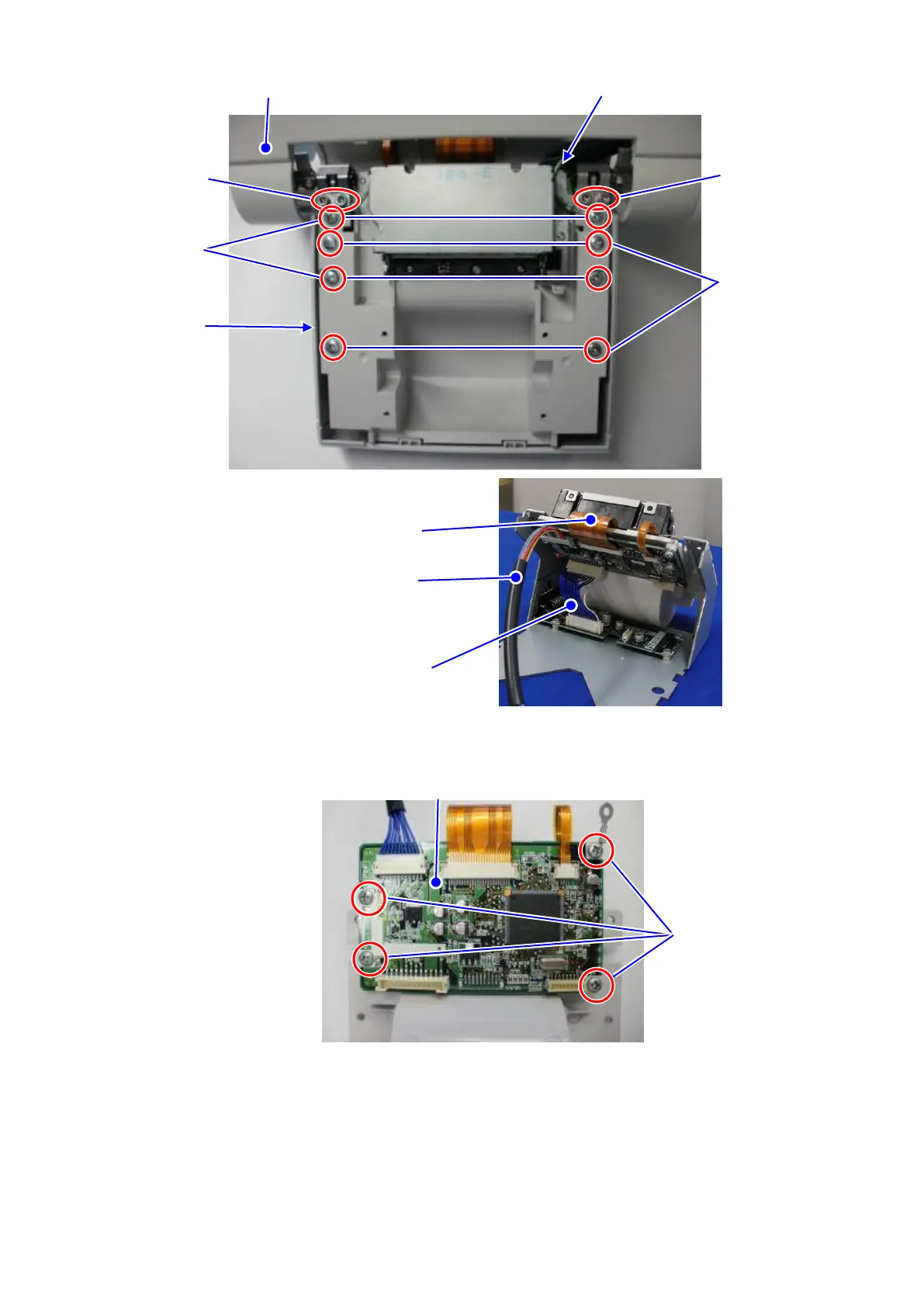

Hinge fixing screws

Fixing screws 1

LCD case 2

Flame harness

Hinge fixing screws

Body case 2

Fixing screws 2

Printer assy

Printer harness

Control printer harness

Fixing screws

Printer control board assy
