ESTUN AUTOMATION Proprietary
Back
Gauge
Positive direction of X-axis
Sheet
Origin of coordinates
Height of Puch
Positive direction of R-axis

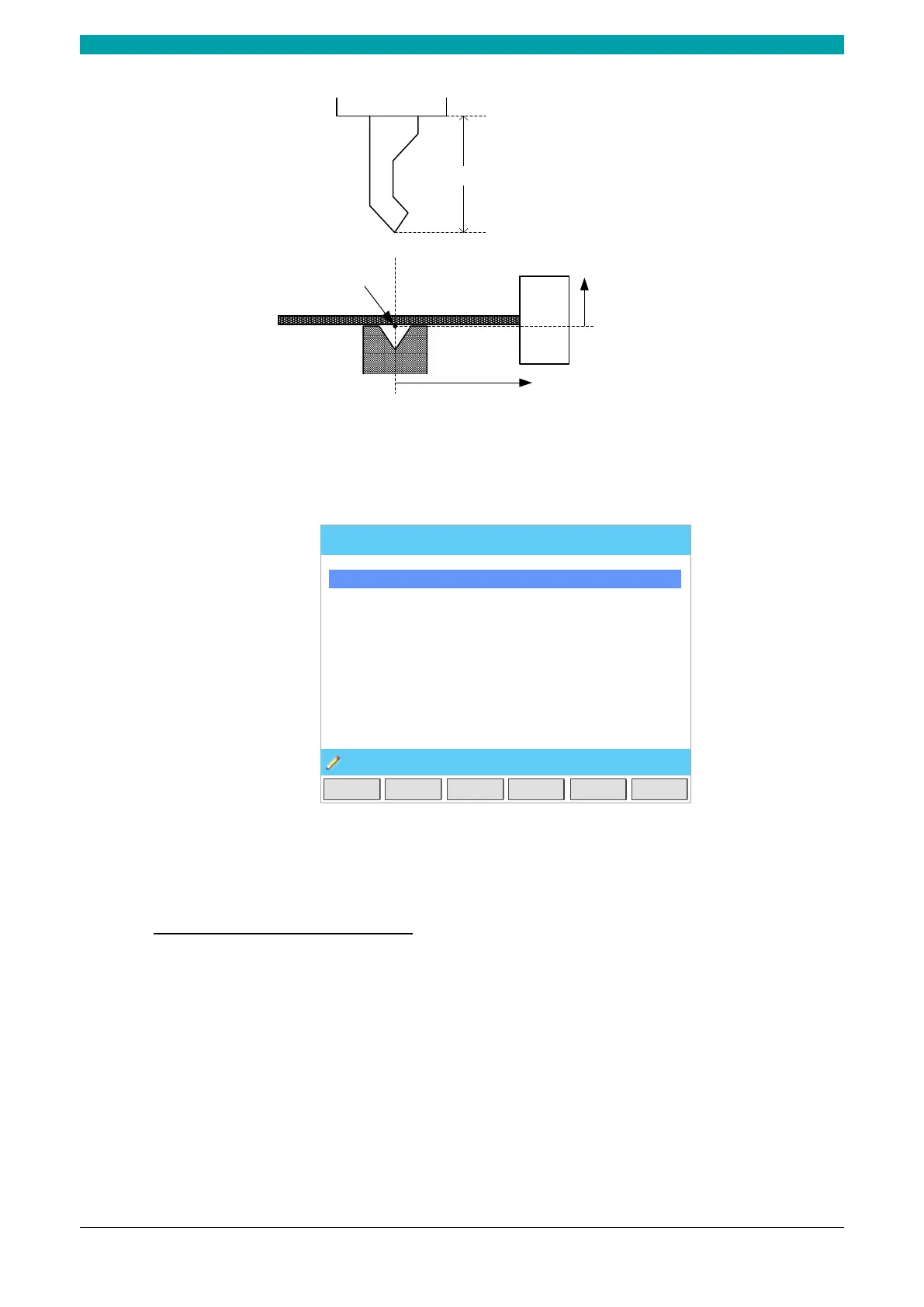

Figure 2-9 Coordinate system of machine
Type the password 1212 in Constant page to enter TechIn Para page, as shown in Figure 2-10.
TechIn Para. Idle Stop
Back
12
: 00
Material Table:
Please Press Enter
X Teaching =
105.00 mm
Punch Height = 116.00 mm
Clamping Point = 50.00 mm
Y Teaching = 83.44 mm
Software Version 1.00
Figure 2-10 TechIn Para page
Press the arrow keys UP and DOWN to select a parameter, and type the desired value for them.
Y Teaching and Clamping Point
The purpose of teaching Y-axis is obtaining the comparative position value of clamping point. When
you teach Y-axis, it is necessary to estimate the position value of the Y-axis in advance. For example,
if the position of the Y-axis is estimated to be 50mm, and the procedure is as follows:
Step 2 Select the parameter Y Teaching in TechIn Para page, and set it to 50.
Step 3 Return to the Single-Step page, and set the parameter Angle to 180, and the other parameters can be
set arbitrarily.
In general, when the machine is in clamping, the punch just against the top of the sheet, so the
bending Angle is set to 180, in order to ensure that the sheet was clamped.
Step 4 Run the device, and record the Y-axis position displayed on the device when the process is in Dwell.
