ETC Sensor3 CEM3 - Sensor 2.0 and Stage 1 Curves

System Reference 23
Sensor 2.0

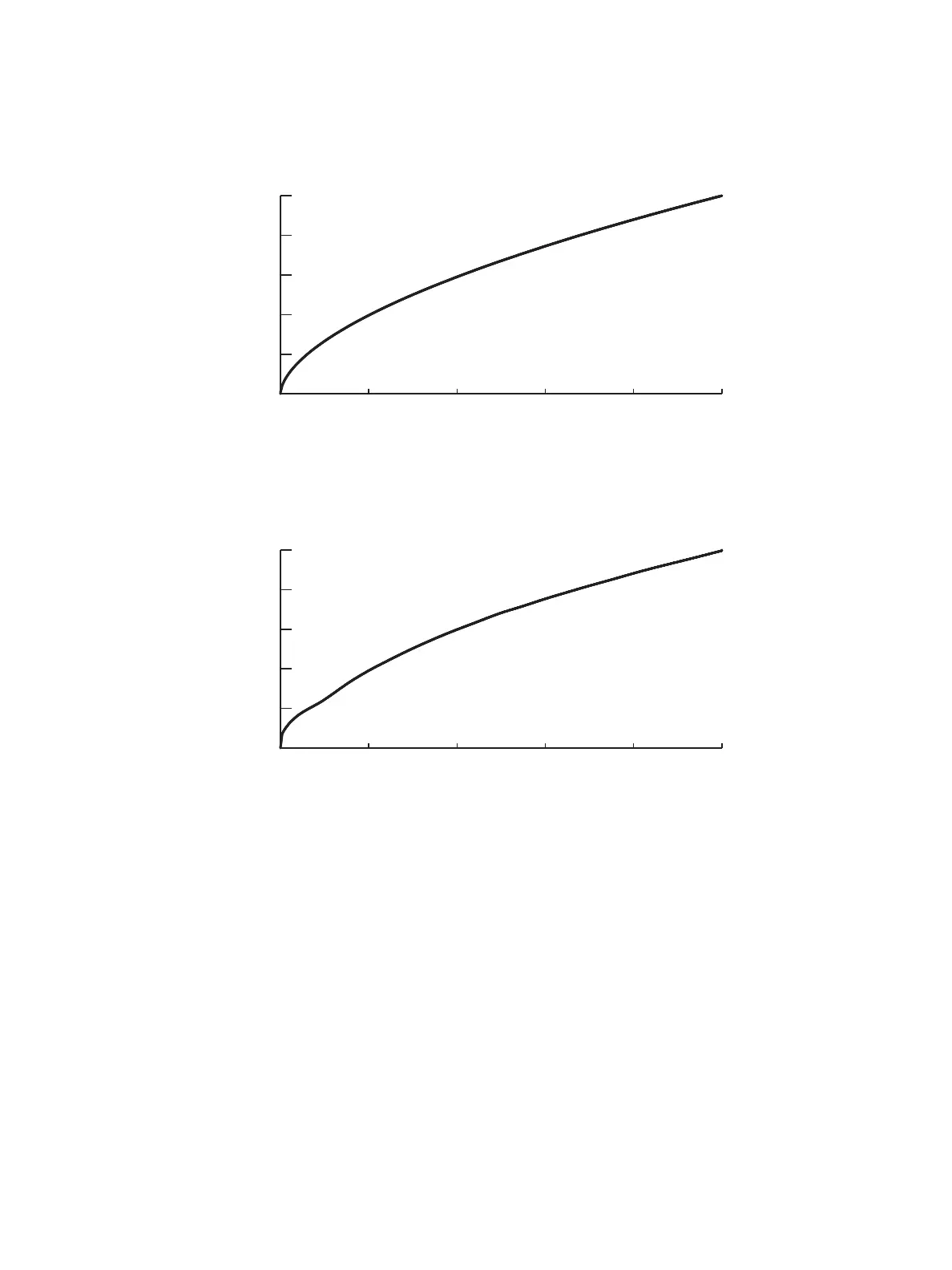

The Sensor 2.0 curve is the previous version of the ETC modified square law curve. It provides
backwards compatibility for shows created using earlier versions of ETC equipment and familiar
response for designers who prefer the earlier version.
Stage 1
This curve matches the stage curve of the Transtechnik PM90 dimming system.
0 20406080100
0
20
40
60
80
100
Control Input (%)
Dimmer Output (%)
0 20406080100
0
20
40
60
80
100
Control Input (%)
Dimmer Output (%)
