44 CEM3 User Manual
Files
This page allows you to upload CEM3 firmware or configurations as well as download the current rack
configuration.
1: To upload a file, select the file type (Configuration or Firmware) by clicking the appropriate box
at top.
2: Use the Browse button to navigate to the desired file on your connected device.
3: Once the file is selected, click Begin Upload.

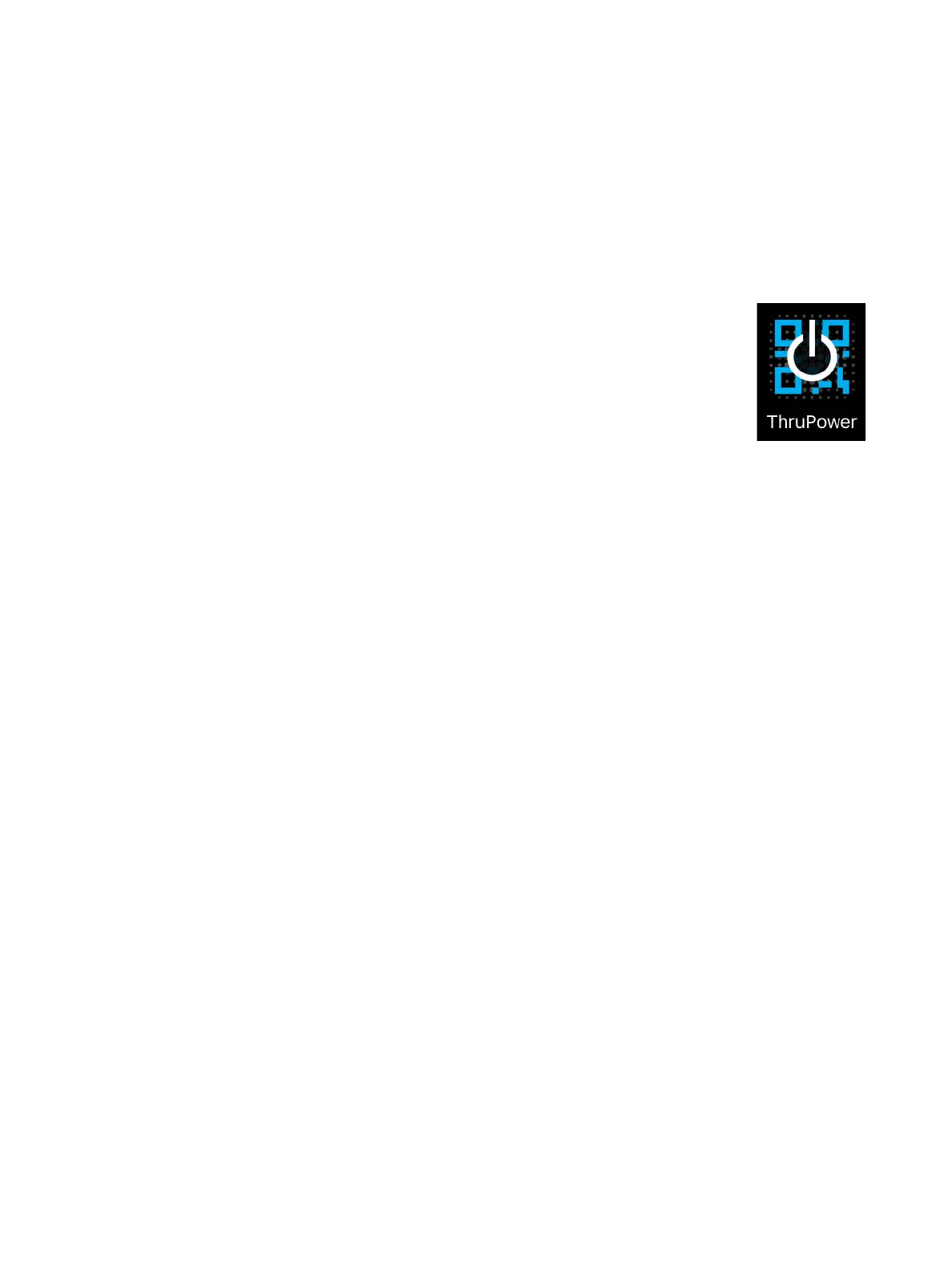

Using the Sensor3 TPSR App
The Sensor3 ThruPower System Reporter app allows you to scan QR codes affixed
to distribution using a smart device (smartphone, tablet, etc.) and configure the
relevant dimmer.
The ThruPower app is available for download from the App Store
®
Store (Apple
iOS) and Google Play™ store (Android devices).
1: Make sure that your device is connected to a wireless network with access
to the racks that you want to configure.
2: Start the ThruPower app. When the app opens, the camera on your smart device becomes active.
3: Center the QR code affixed to the distribution for the dimmer that you want to configure on your
smart device screen. The app identifies the QR code and prompts you to configure the dimmer
or cancel the action.
4: Tap Configure. The app searches for the associated dimmer.
• If only one dimmer is associated with the QR code, the Configure Dimmer screen displays.
• If several dimmers are associated with the search criteria that you entered, the app displays
the dimmer names. Tap the dimmer that you want to configure or type part of the dimmer
name or other information into the filter box at the top of the screen to locate the dimmer
you want to configure.
• If the app cannot find the associated dimmer, tap Search Manually at the bottom of the
screen and enter search criteria to identify the dimmer.
• Choose About at the top right of the screen to display instructions and links to additional
information.
5: Modify the dimmer information as needed. See
Dimmer Property Definitions
on
page 17
for
information on dimmer configuration parameters.
