68 CEM3 User Manual
Appendix E
PhaseAdept Dimmer

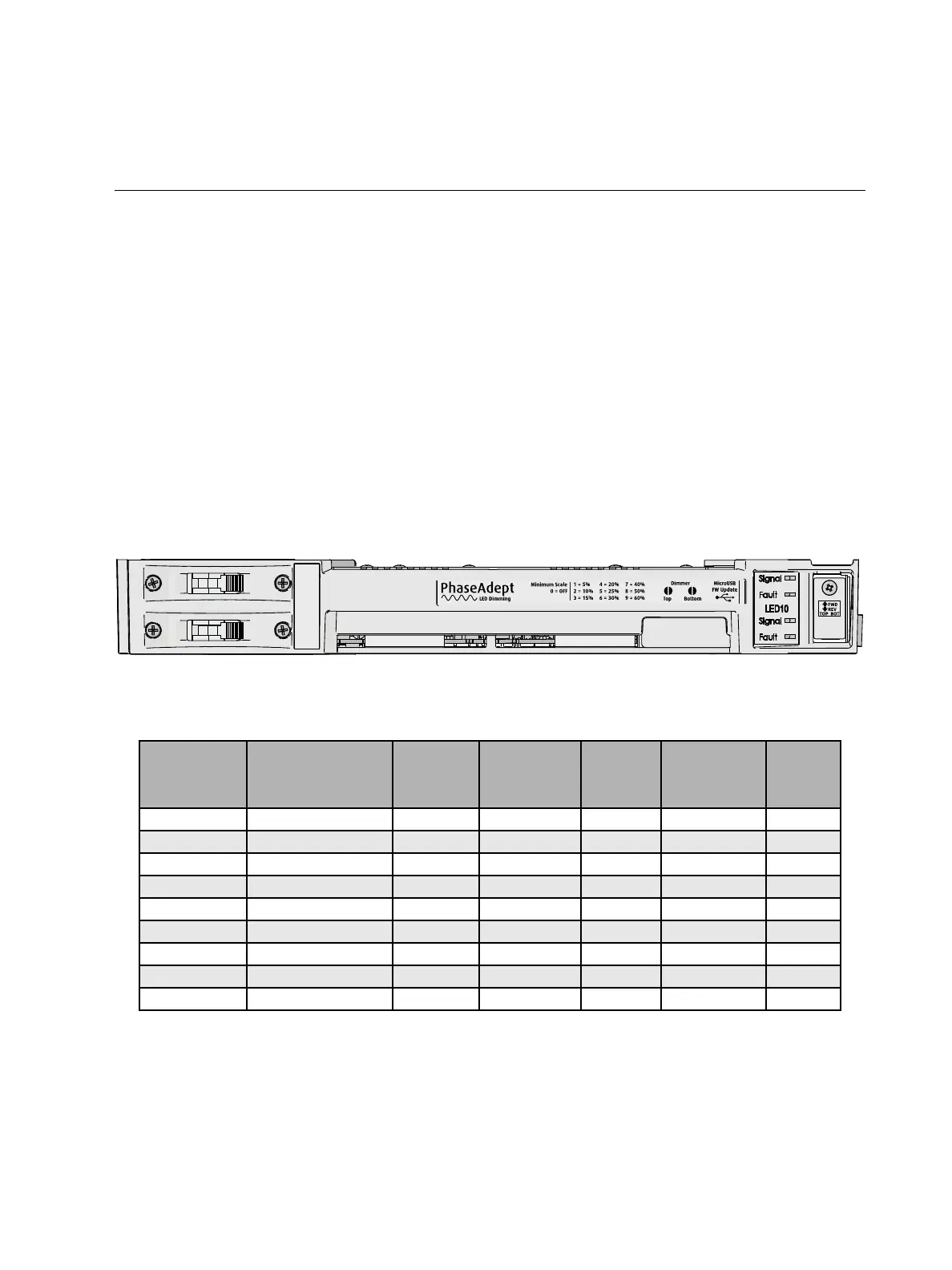

The PhaseAdept dimmer module provides two high-performance circuits for control of dimmable LED
loads and is compatible with the following Sensor and Unison dimmer enclosures:
• Sensor Classic ESR and SR Series
• Sensor+
• Unison Legacy DR
• Unison DRd
• Sensor3
The PhaseAdept dimmer module is compatible with control input from the following controllers:
• CEM Classic/ECEM
• CEM+
•MPE
•CMEd
• Unison CMd
• Unison DRd Dimming Engine
• CEM3
Variants
Enclosure
Family
Breaker
Module
Name
Part
Number
Max
Voltage
Max Load
Current per
Channel
Max
Power
Sensor Single Pole LED10 7050A1296 120 V 10 A rms 1.2 kW
Sensor Neutral Bridge LED10NJ 7050A1297 120 V 10 A rms 1 kW
Sensor RCD LED10RJ 7050A1298 120 V 10 A rms 1 kW
Sensor ESR Single Pole ELED6 7070A1426 230 V 6 A rms 1.3 kW
Sensor ESR Neutral Disconnect ELED6N 7070A1428 230 V 6 A rms 1.3 kW
Sensor ESR RCD ELED6R 7070A1427 230 V 6 A rms 1.3 kW
Sensor ESR Dual Pole Delta HLED6D2 7070A1429 240 V 6 A rms 1.4 kW
Unison Single Pole LED10 7183A1209 120 V 10 A rms 1.2 kW
Unison Single Pole ALED5 7183A1210 277 V 5 A rms 1.4 kW
