13.3.4.3 Predefined movements examples with the different values of parameter K230 (MMD=3 or 19)

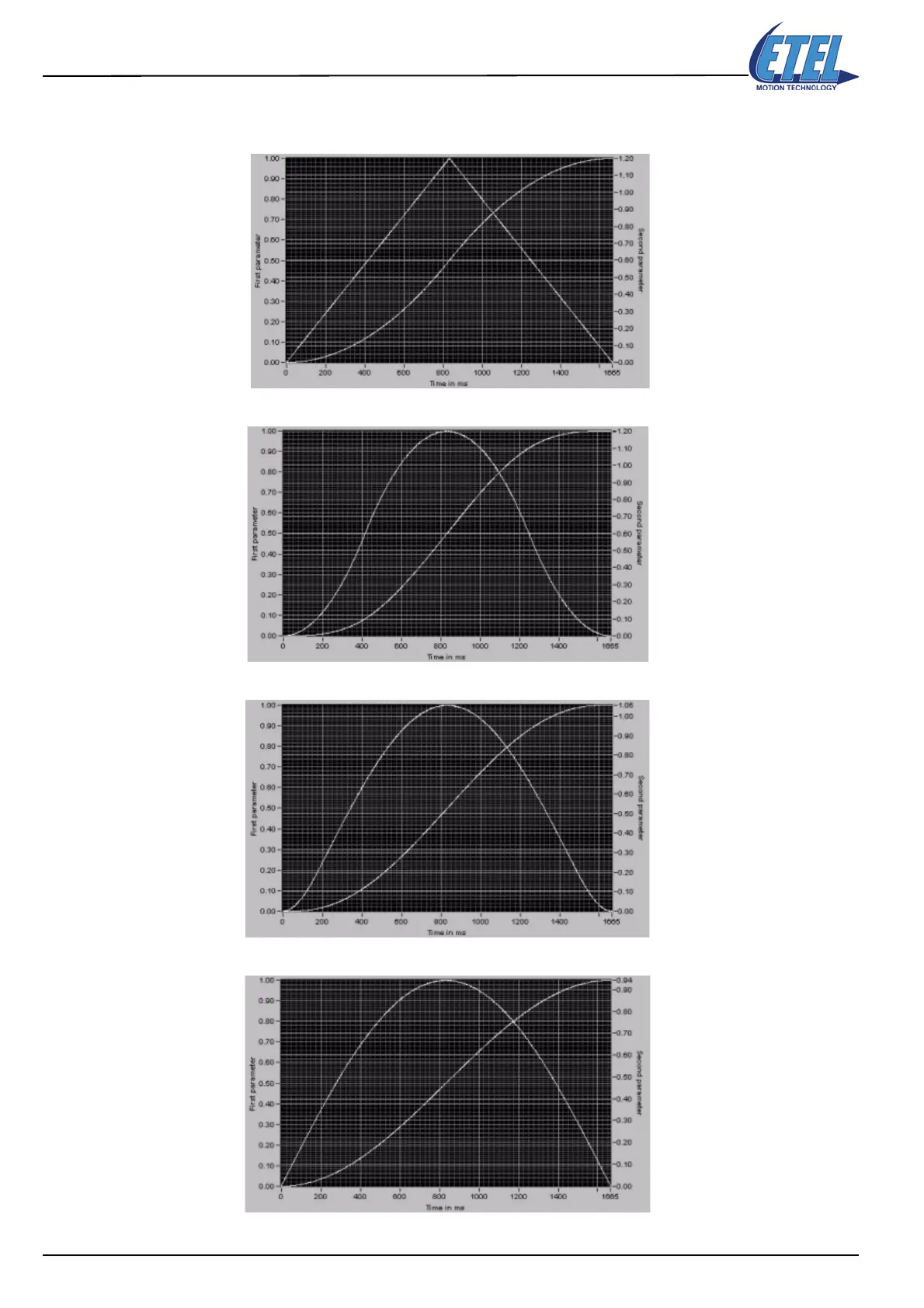

K230=0: Triangular movement (the graph represents the theoretical speed and position)
K230=1: S-curve movement (the graph represents the theoretical speed and position)
K230=2: Sine modified movement (the graph represents the theoretical speed and position)
K230=3: Real sine movement (the graph represents the theoretical speed and position)
