X20/X20S and Ethos v1.5.0 User Manual
Racing mode
Racing mode offers a very low latency of 4ms with receivers like TD MX.
If the Channel Range is set to Ch1-8, it becomes possible to select a source (e.g a
switch) which will enable Race Mode. Once the receiver has been bound (see below),
and Racing mode has been enabled, the receiver must be re-powered for Racing mode
to take effect.
2.4G
The 2.4G RF module is already enabled.
Antenna: Select Internal or External (on ANT1 connector) Antenna. Although the
RF stage has built-in protection, it is good practice to ensure that an external
antenna has been fitted before selecting the External antenna. Please note that the
antenna selection is on a per model basis, so each time a model change selection is
made ETHOS sets the antenna mode for the given model.

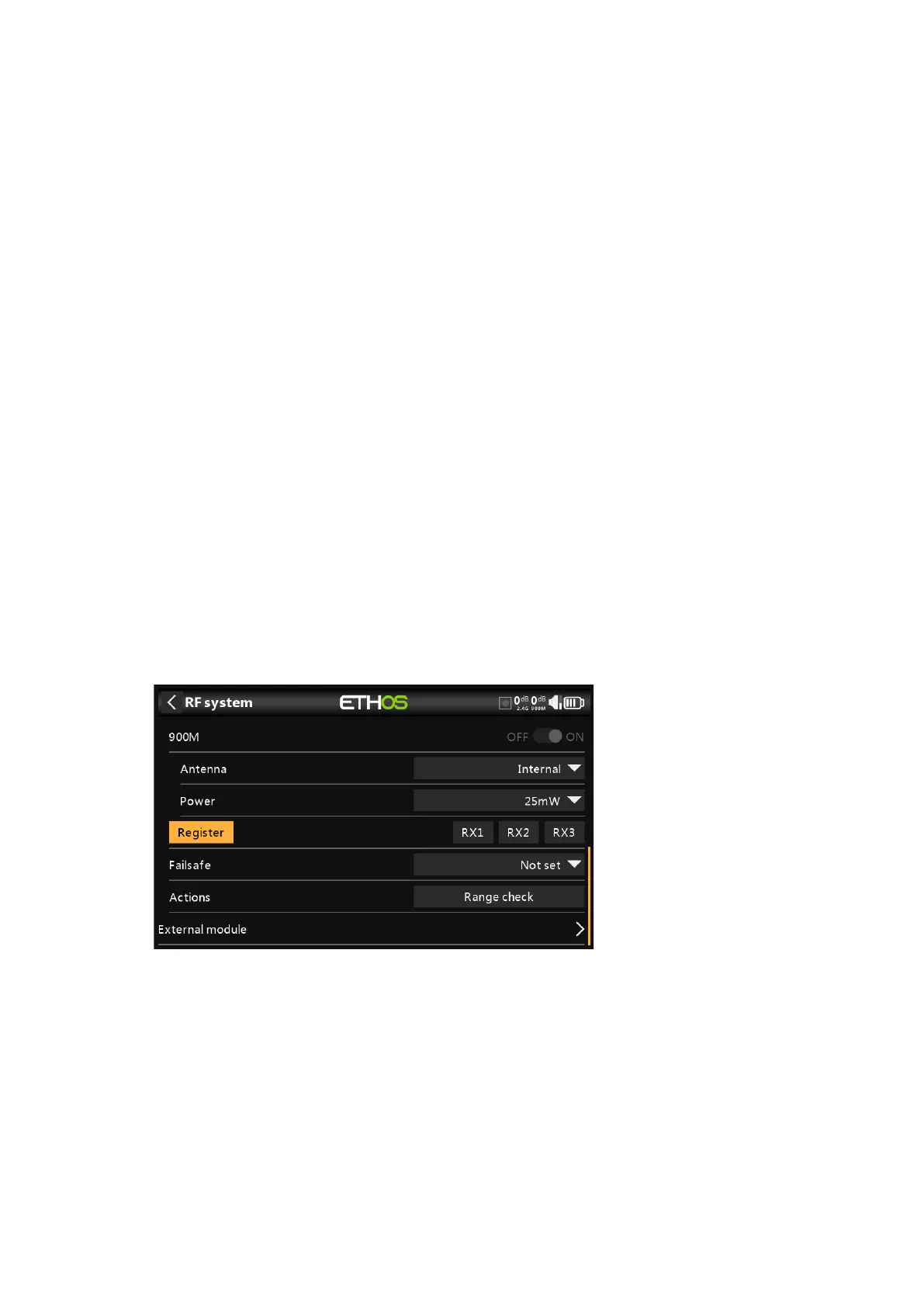

900M
The 900M RF module is already enabled.
Antenna: Select Internal or External (on ANT2 connector) Antenna. Although the
RF stage has built-in protection, it is good practice to ensure that an external
antenna has been fitted before selecting the External antenna. Please note that the
antenna selection is on a per model basis, so each time a model change selection is
made ETHOS sets the antenna mode for the given model.
Power: Select the RF Power desired between 10, 25, 100, 200, 500mW, 1000mW
In TD MODE mode the 2.4g and 900m RF paths work in tandem with one set of
ACCESS controls. There can be three Tandem receivers registered.
Phase One: Registration
Register:
1. If your receiver has not yet been registered, initiate the registration process by
selecting [Register]. Otherwise, skip down to the Bind section.
