Note that the Sticky function continues to operate, even if its output is gated by the
‘Active condition’ switch. As soon as the active condition becomes True again, the
Function's condition is switched through to the logic switch output.

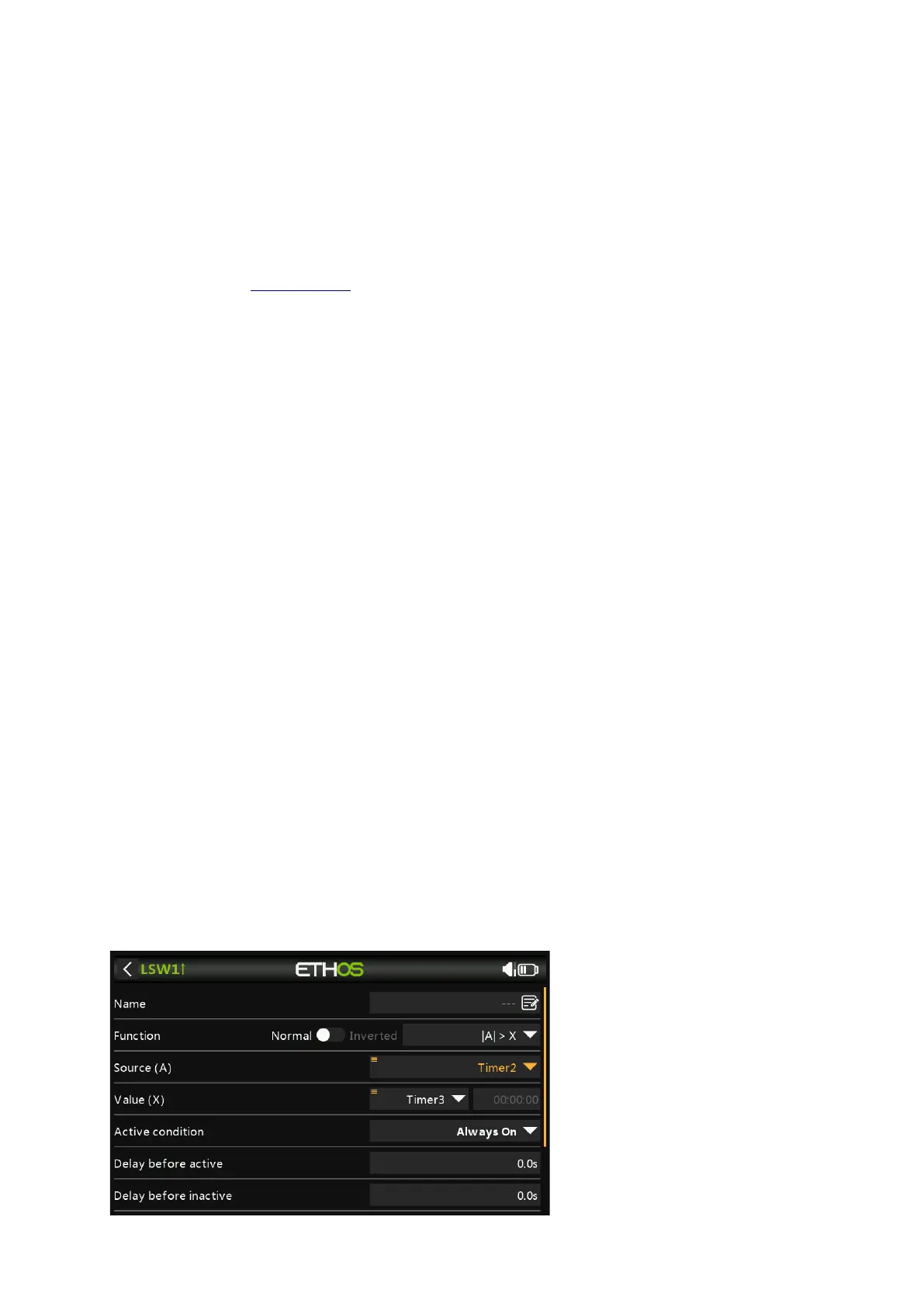

Delay before active
This value determines the time for which the logic switch conditions have to be True
before the logic switch output becomes True. (Not relevant to Timer Generator and
Edge.)
Please refer to this example about the Neuron ESC voltage going below 4.2V for at least
x seconds.
Delay before inactive
Similarly, this value determines the time for which the logic switch conditions have to be
False before the logic switch output becomes False. (Not relevant to Timer Generator and
Edge.)
Min Duration
Once the logic switch becomes True, it will remain True for at least the minimum duration
specified. If the duration is the default ‘---’, the logic switch will only become True for one
mixes processing cycle, which is too short to see, so the LSW line will not go bold.
Max Duration
If a maximum duration is set, once the logic switch becomes True, it will only remain
True for the maximum duration specified.
Comment
A comment may be added as explanation of its use or function, to aid in understanding.
The comment is displayed when a logic switch is added to a value widget.
Logic switches – use with telemetry
If the source of a logic switch is a telemetry sensor, if your sensor is active then the logic
switch will be active.
Besides the normal Active Condition categories, logic switches and special functions have a
‘Telemetry active’ condition (under ‘System event’) which is active when telemetry is being
received.
Comparison of sources
