X20/X20S and Ethos v1.5.0 User Manual
Adding additional screens

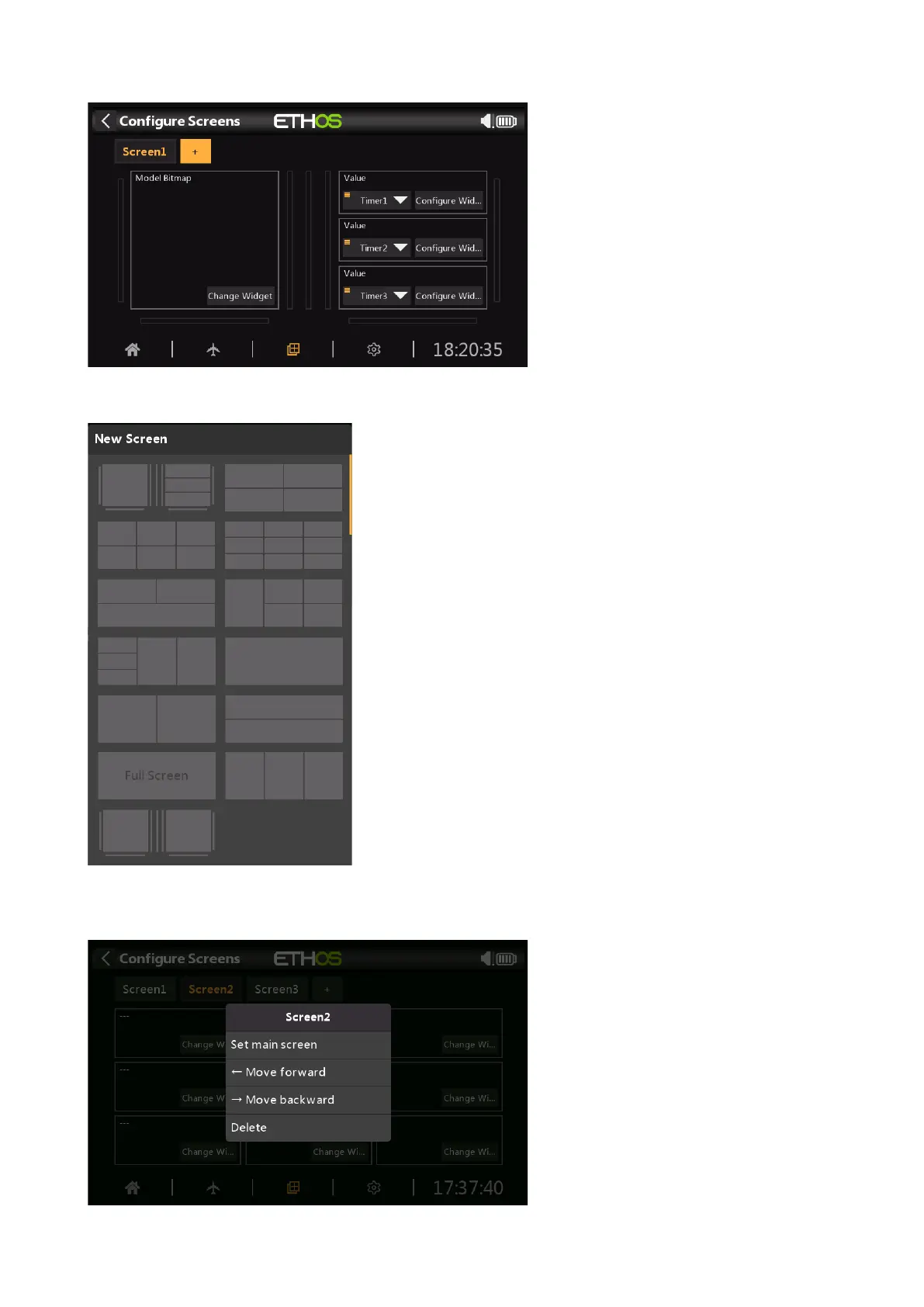

Tap on the ‘+’ button next to ‘Screen1’ to add an additional screen.
You can select from 13 different layouts (including full screen and a choice
of two home
screens) having up to 9 widgets. These can then be co
nfigured as for screen 1.
