Function switches (X20 series only)
The six function switches are available wherever 'Active condition' parameters are found.
Please note that they cannot be used as a source like normal switches can.
Configuration

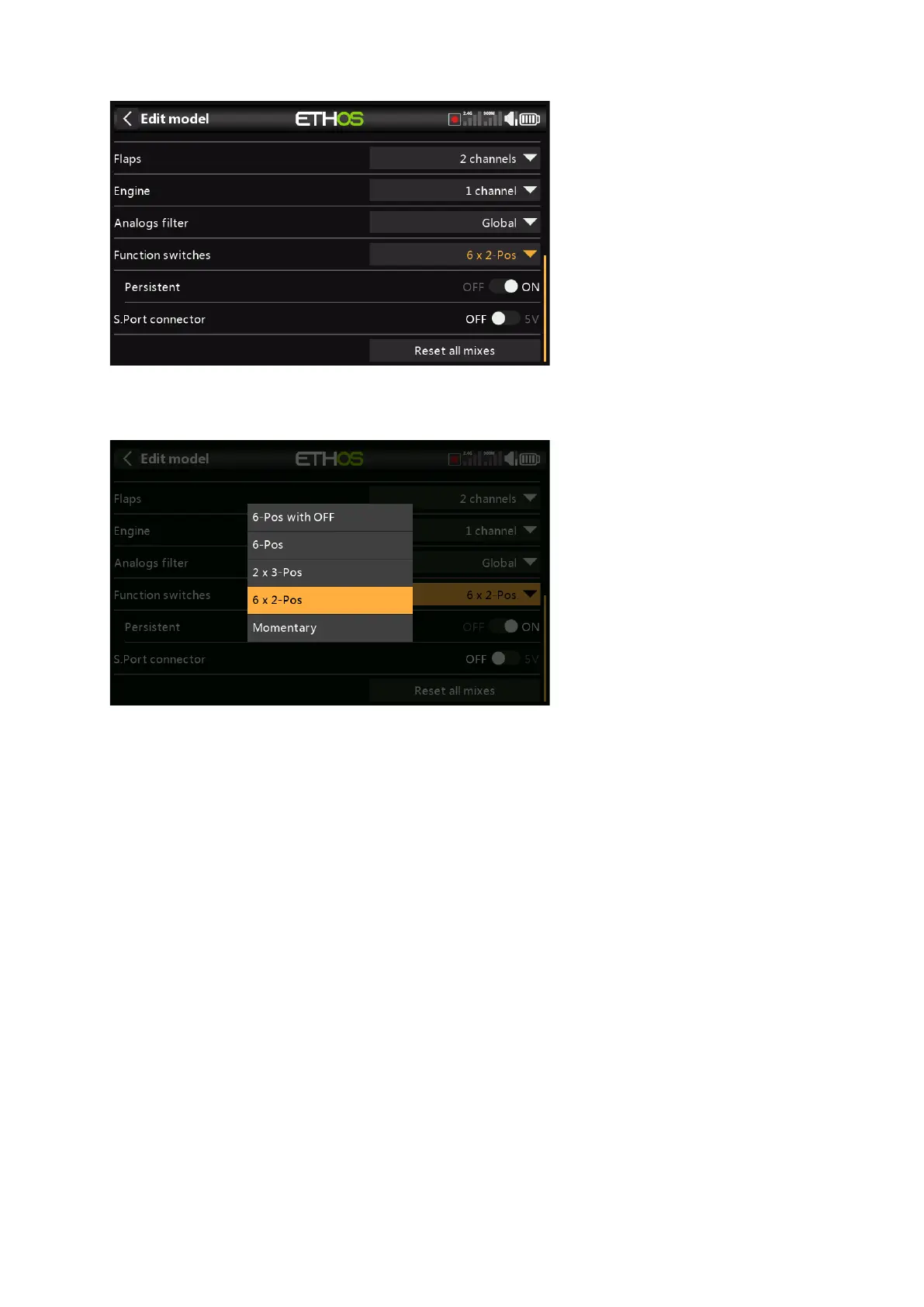

They may be configured as follows:
6-Pos with OFF
Pressing any function switch will latch that switch ON. However, pressing a switch that
is already ON a second time will turn it off, leaving all six function switches OFF.
6-POS
Pressing any function switch will latch that switch ON until a different function switch
is pressed to latch the newly pressed switch ON.
2 x 3-Pos
Breaks the 6 function switches into two groups of 3. Each group can have one switch
ON.
6 x 2-Pos
Breaks the 6 function switches into 6 latching switches. Each switch can be ON or OFF.
Momentary
Breaks the 6 function switches into 6 momentary switches. Each switch is ON while
depressed.
