X20/X20S and Ethos v1.5.0 User Manual

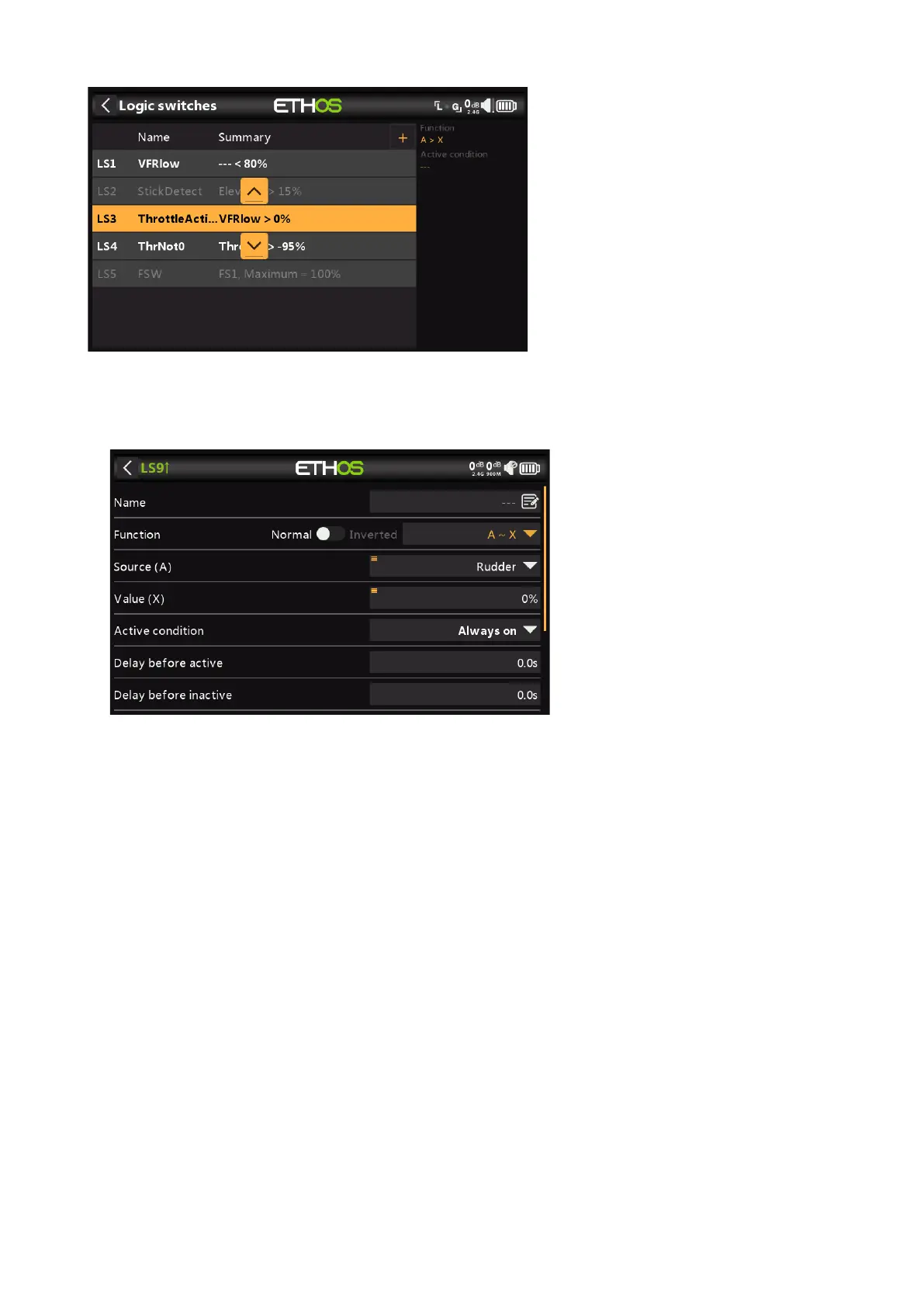

Selecting 'Move' will bring up arrow keys allowing the logic switch to be moved up or down.
Adding logic switches
Note that the logic switch label in the menu heading is green when the state of the logic
switch is True, or red when False.
Name
Allows the logic switch to be named.
Function
The functions available are listed below. Please note that all functions may have normal
or inverted outputs. Please also refer to the shared parameters section, as well as the
telemetry and comparison of sources sections following the function descriptions below.
A ~ X
The condition is True if the value of the selected source 'A' is approximately equal
(within about 10%) to 'X', a user defined value.
In most cases, it is better to use the approximately equals function rather than the
'exactly' equals function.
A = X
The condition is True if the value of the selected source 'A' is 'exactly' equal to 'X', a
user defined value.
233 rev 4
