21

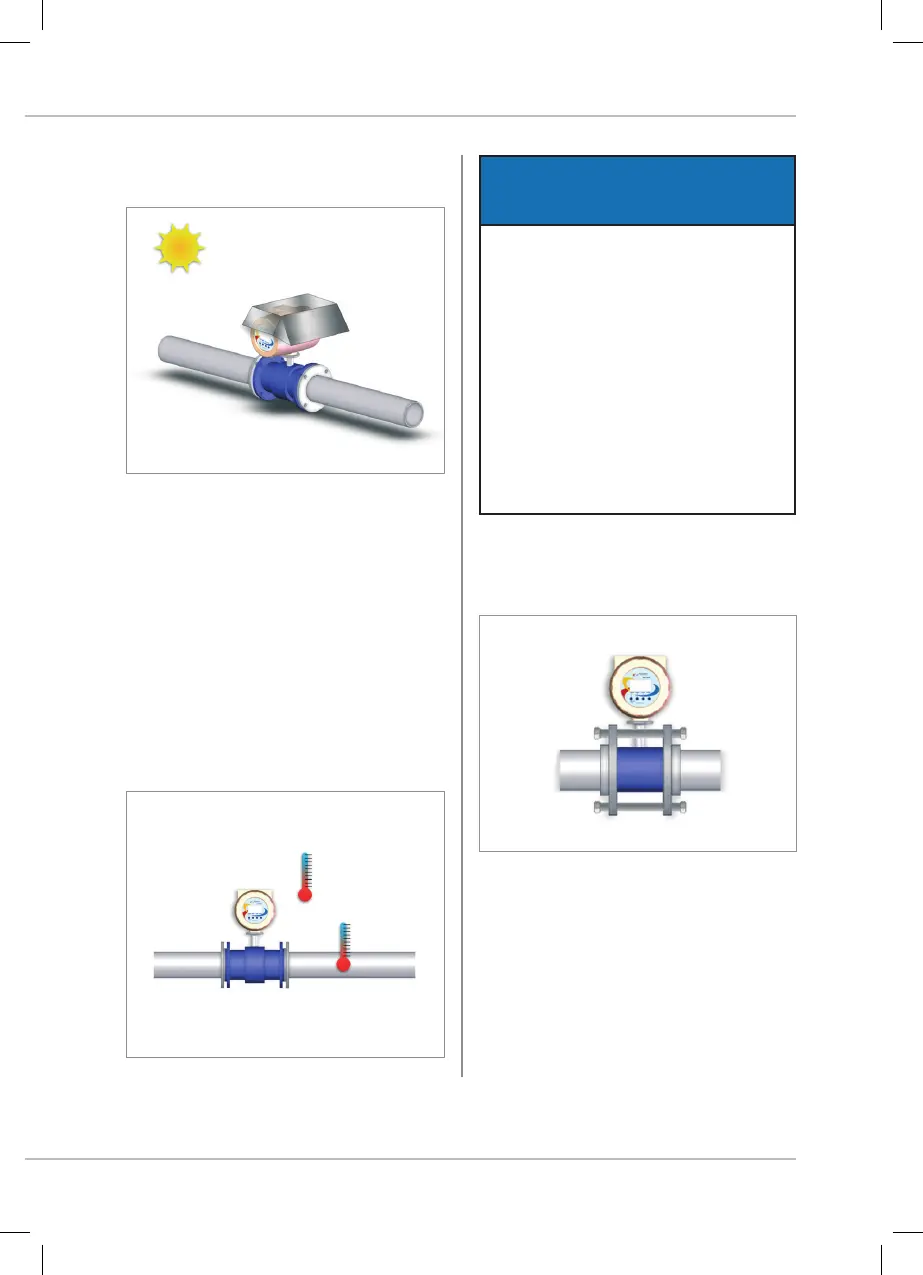

• For a normal and efficient operation of the flow
meter:
- The ambient temperature must be limited
within a range of (-25 ÷ +60) °C, (-13 ÷
+140)°F;
- The temperature of the motherboard is
available in the converter: Menu -> Other ->
time / date
- The temperature of the liquid should be
limited within a range of (-25 ÷ +80)°C, (-13
÷ +176)°F for the compact version and (-25
÷ +200)°C, (-13 ÷ +392)°F for the remote
version.
• Protect the flow meter if exposed to direct sun
radiations.
NOTE FOR CONNECTION OF ATEX
APPROVED FLOW METERS
CABLING REQUIREMENTS IN
POTENTIALLY EXPLOSIVE
ATMOSPHERES (ATEX). LAY THE
CABLES AS REQUIRED BY STANDARD
EN 60079-14, IN PARTICULAR
PROVIDING MECHANICAL
PROTECTION, FOR EXAMPLE, RIGID
OR FLEXIBLE CONDUIT PIPES,
DUCTS OR SIMPLY CRANKCASES.
IMPORTANT NOTE
3.3.7 EXAMPLE INSTALLATION OF
WAFER METERS (MUT1000EL -
MUT1100J)
3. INSTALLATION OF THE SENSOR
