7. INFORMATION
CONCERNING THE
MC608R CONVERTER

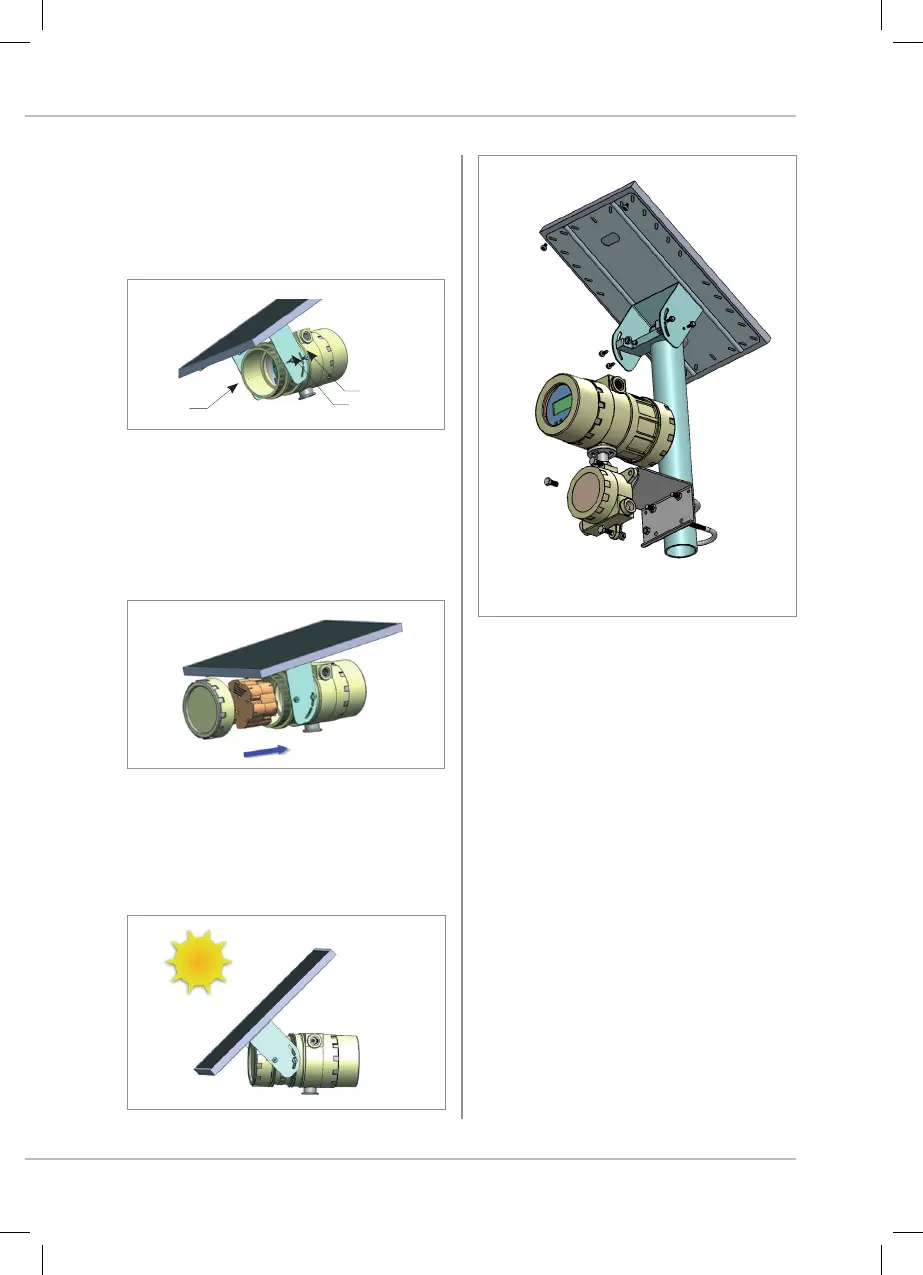

• Connect the battery pack (blue cables).
• Insert the cartridge into the extension cylinder.
• Mount the aluminium rear box, and screw on in
order to obtain an optimal sealing through the
O-ring.
• Select the ideal inclination depending on the
installation and fix the screws.
• The system is designed so as to have the display
on the side opposite to solar radiation.
Position Screw
Pivot Screw
Axial point
Display
