9. CONVERTER MC 608
9.1 INSTALLATION

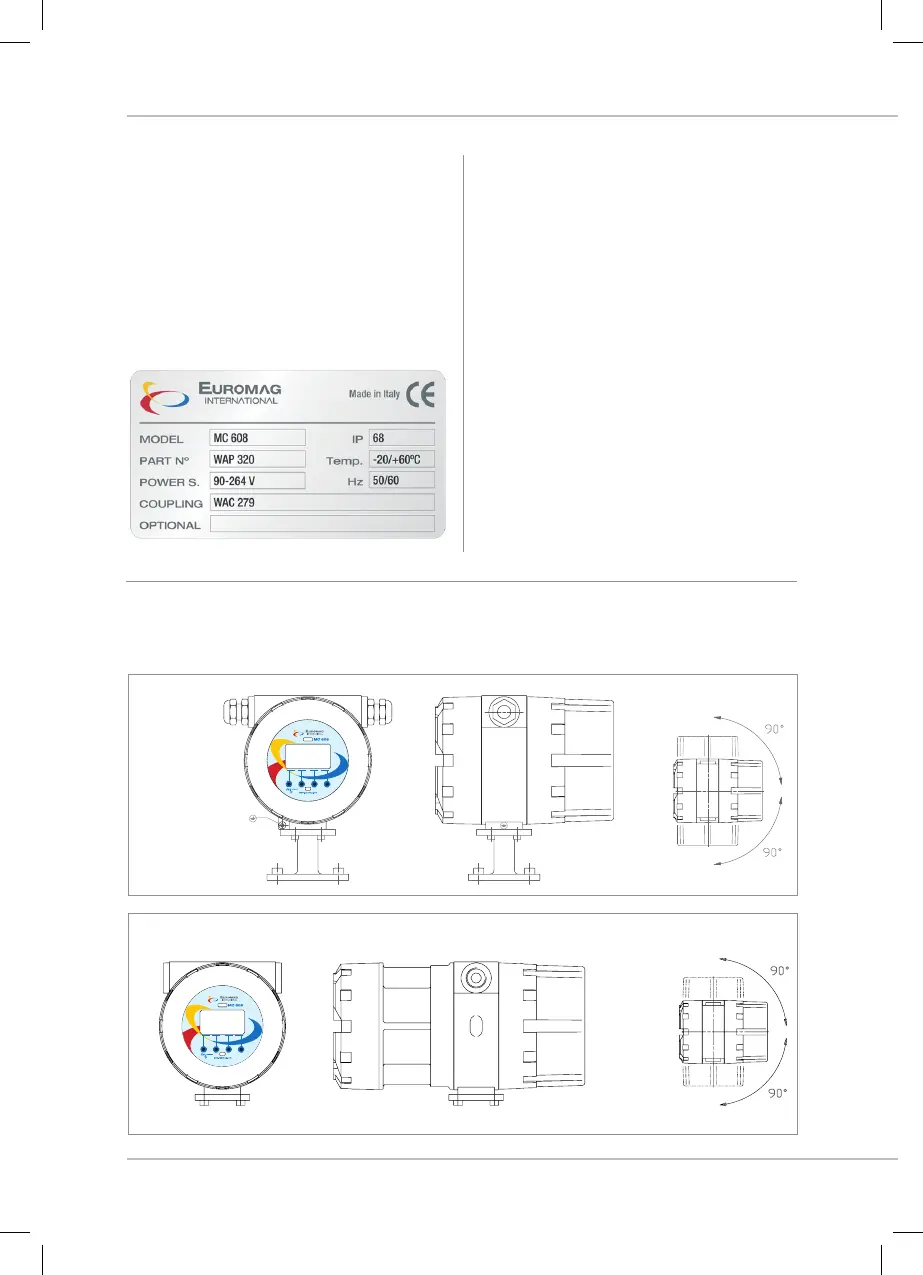

9.1.1 IDENTIFYING DATA PLATE
The data plate located on the converter displays
the following information:
• MODEL: converter model
• IP: degree of protection of the converter
• Part No.: serial number identifying the device
• Temp.: minimum/maximum temperature of
working conditions
• POWER SUPPLY: supply voltage or battery
powered (MC608B)
• HZ: frequency of supply voltage
• COUPLING: serial number identifying the sensor
coupled to the converter
• OPTIONAL: other modules may be added
9.1.2 COMPACT VERSION
Figure 55 represents the converter MC 608 in the compact layout.
