27

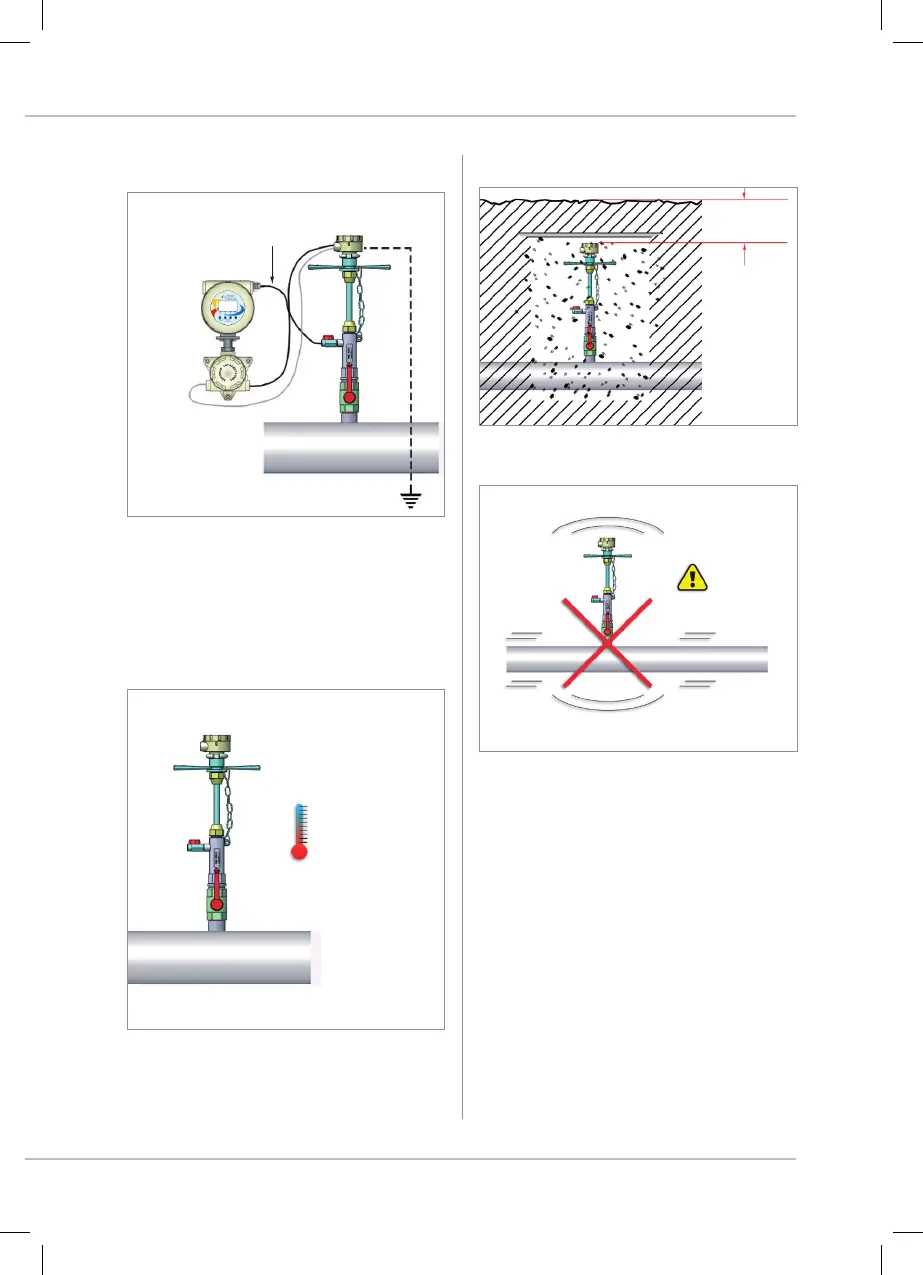

8.1.3 MECHANICAL INSTALLATION
• Localization - installation and environmental
conditions.
- Within the temperature limits
8.1.2 SYSTEM DIAGRAM
- Within environmental limits
10 m
(30 ft)
IP68
(NEMA 6)
Pressure
gauge
- Avoid excessive vibration
• Localization - flow conditions
The probe must be installed at the mean axial
velocity point, which is located at 1/81/8 of the
internal diameter of the pipe.
Temperature of the liquid:
Min.
-25ºC (-13ºF)
Max.
compact 80ºC (176ºF)
separate 130ºC (266ºF)
AVOID
ANY
EXCESSIVE
VIBRATION
8. INSERTION METERS
