GROUND
HARDWARE
VERSION
PROG IN
+
-
RS485
GND
B
FREQ OUT
-
+
-
+
4-20mA
SENSOR
PROG
OUT
PULSE
OUT
+
-
24VDC OUT
MAX 30mA
BATTERY PACK
RESET
N
L
100-240VAC
50/60Hz
12-24Vac/dc
WIRES FROM BOARD
BELOW
11
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
COIL
SIGNAL
USB CABLE
CONNECTION
fig_914_1
34
EUROMAG | MC608 | TD210-1
www.euromag.com

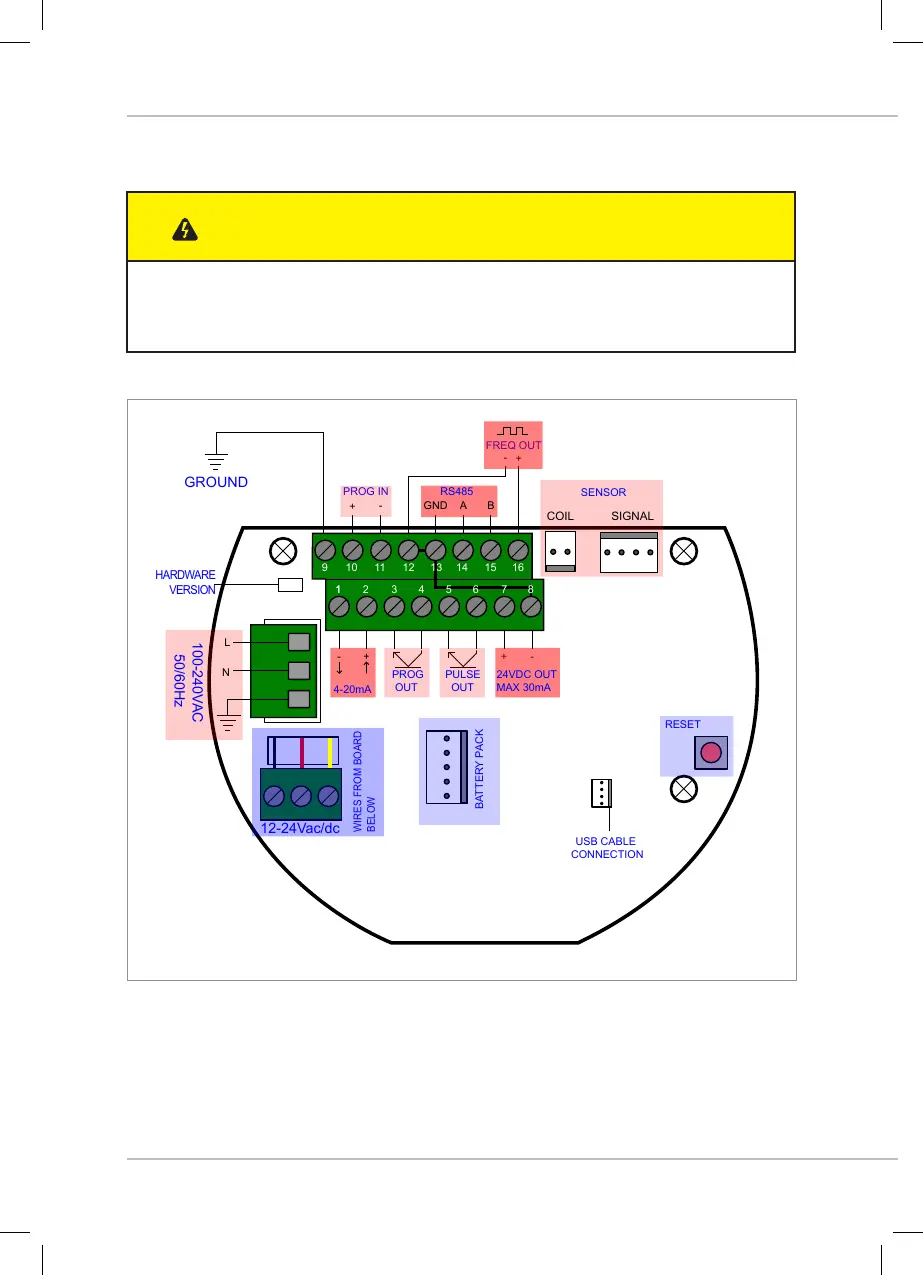

9.1.4 ELECTRICAL CONNECTIONS
ANY WORK DONE ON THE ELECTRICAL JUNCTION BOX OR ELECTRICAL
COMPONENTS OF THE DEVICE MUST BE CARRIED OUT BY PROPERLY TRAINED AND
SPECIALIZED STAFF
CAUTION!
MC608 ELECTRICAL DIAGRAM
